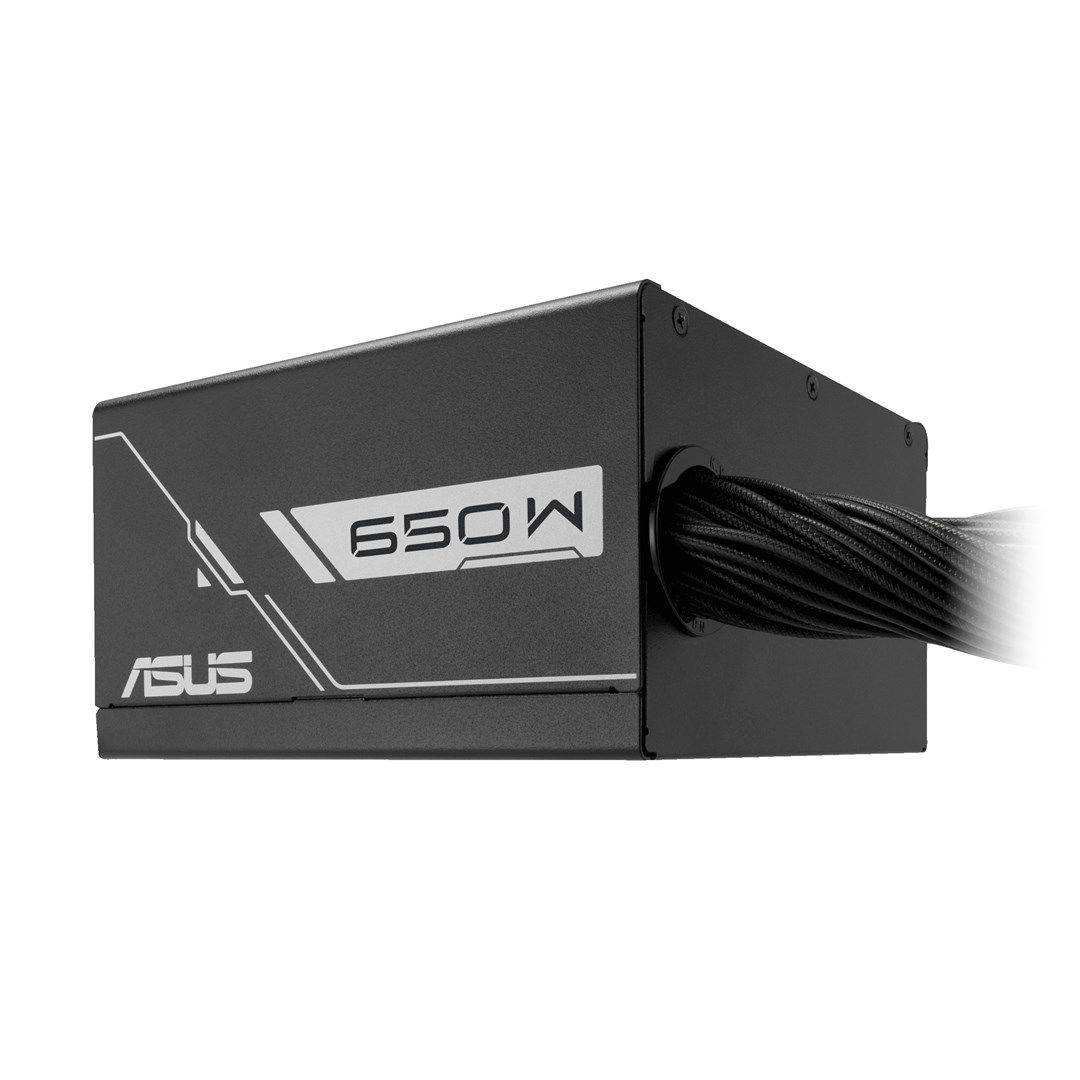

ASUS Prime -650B-BLACK power supply unit 650 W 20+4 pin ATX ATX

Design
Fan diameter: 13.5 cm
Cooling type: Active
Product colour: Black

Power
Combined power (+3.3V): 110 W
Max output current (+3.3V): 20 A
Combined power (+5V): 110 W
Total power: 650 W
Max output current (-12V): 0.3 A
Power protection features: Overheating, Short circuit, Over voltage, Over power, Under voltage, Over current
Max output current (+5Vsb): 2.5 A
Max output current (+12V): 54 A
Combined power (+5Vsb): 12.5 W
Max output current (+5V): 20 A
AC input voltage: 100 - 240 V
Combined power (-12V): 3.6 W
Power Factor Correction (PFC) type: Active
Combined power (+12V): 648 W

Weight & dimensions
Height: 86 mm
Width: 150 mm
Depth: 150 mm
Weight: 2.2 kg

Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h
Power supply unit (PSU) form factor: ATX

Packaging data
Package height: 115 mm
Package width: 340 mm
Package type: Box
Package weight: 3 kg
Package depth: 196 mm

Packaging content
Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates
Compliance certificates: RoHS

Ports & interfaces
Cabling type: Non-Modular
Peripheral (Molex) power connectors (4-pin): 3
SATA power cable length: 120 mm, 400
Number of SATA power connectors: 5
CPU power cable length: 80 cm
Motherboard power connector: 20+4 pin ATX
PCI Express power cable length: 60 cm
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 400, 120 mm
PCI Express power connectors (8-pin): 2
