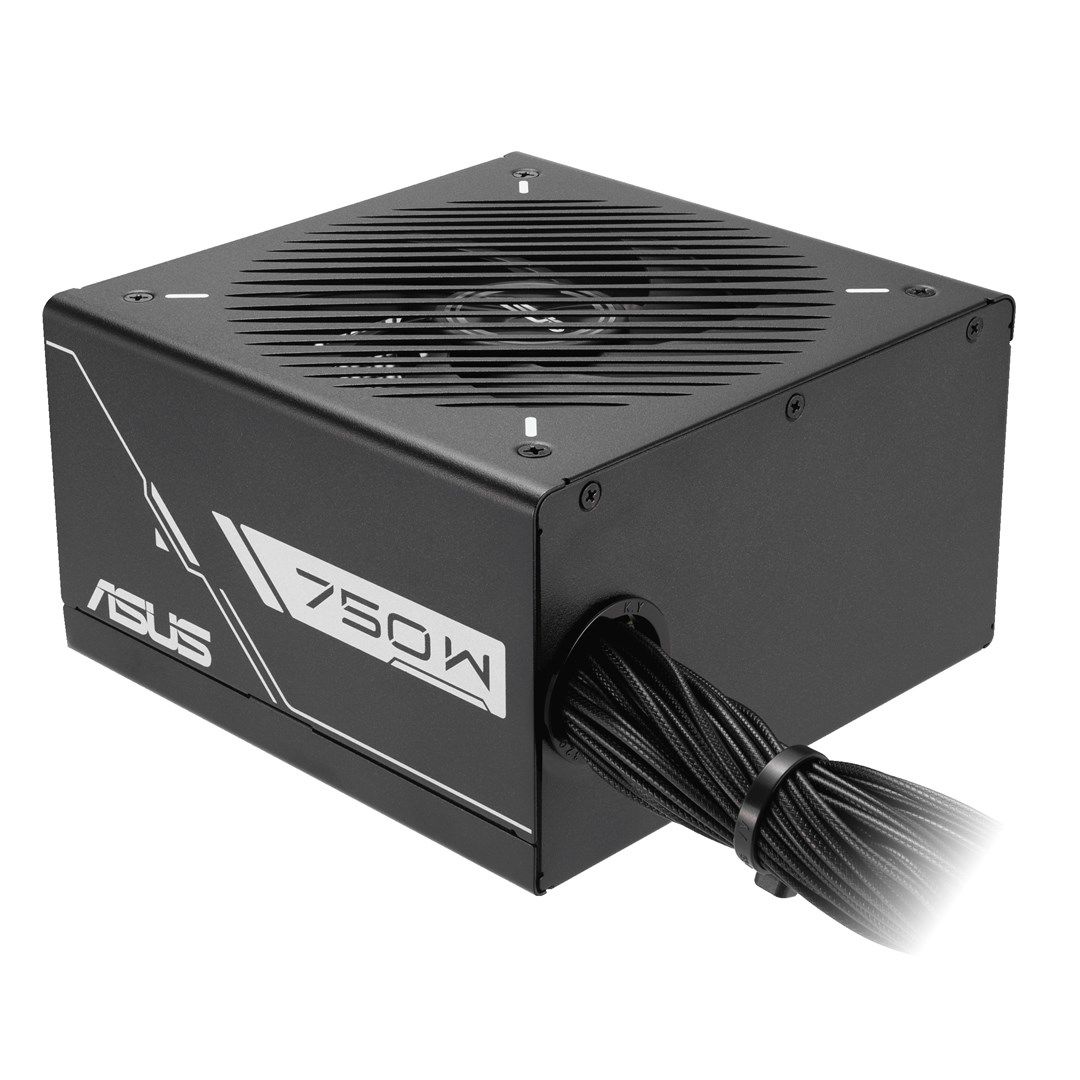

ASUS Prime -750B-BLACK power supply unit 750 W 20+4 pin ATX ATX

Design
On/off switch: Yes
Cooling type: Active
Product colour: Black
Fan location: Top
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)

Power
Max output current (+3.3V): 20 A
Combined power (+5V): 120 W
Combined power (+12V): 750 W
Combined power (+3.3V): 120 W
Power Factor Correction (PFC) type: Active
Max output current (+12V): 62.5 A
Power protection features: Under voltage, Over current, Short circuit, Over voltage, Over power
Max output current (-12V): 0.3 A
Combined power (-12V): 3.6 W
Total power: 750 W
Max output current (+5V): 20 A
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 12.5 W
Max output current (+5Vsb): 2.5 A

Weight & dimensions
Width: 150 mm
Height: 86 mm
Depth: 150 mm
Weight: 1.92 kg

Performance
Bearing technology: Ball bearing
Power supply unit (PSU) form factor: ATX
Purpose: PC
Mean time between failures (MTBF): 120000 h
80 PLUS certification: 80 PLUS Bronze

Packaging data
Package width: 340 mm
Package depth: 196 mm
Package height: 115 mm
Package weight: 3 kg
Package type: Box

Ports & interfaces
PCI Express power connectors (8-pin): 3
Cabling type: Non-Modular
CPU power cable length: 80 cm
Peripheral (Molex) power cable length: 120, 400 mm
Motherboard power cable length: 60 cm
CPU power connector (4+4 pin): Yes
SATA power cable length: 120, 400 mm
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
Motherboard power connector: 20+4 pin ATX
