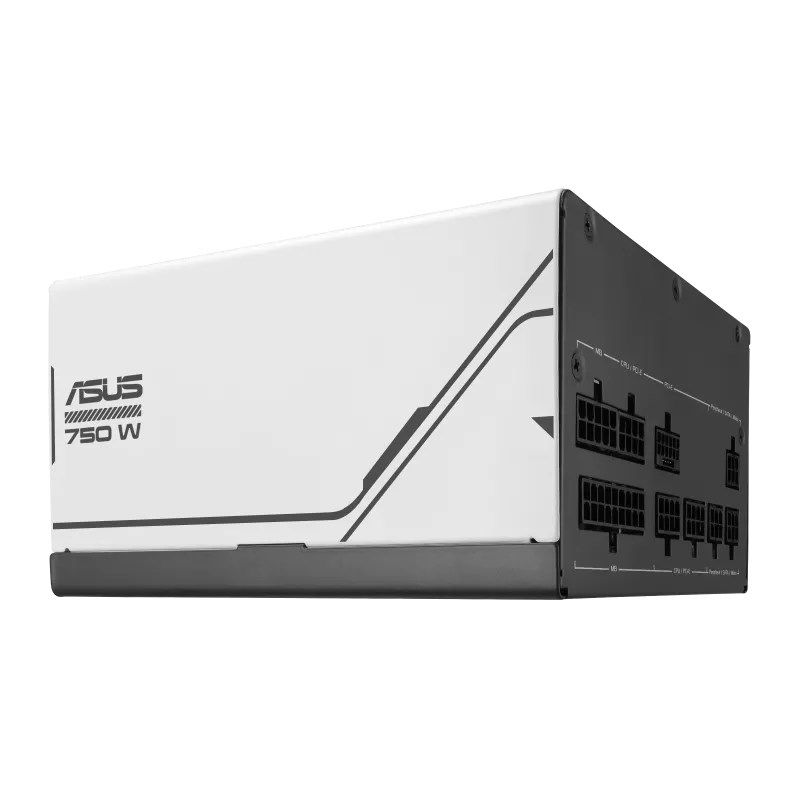

ASUS Prime 750W Gold ( AP-750G ) power supply unit 20+4 pin ATX ATX Black, White

Design
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Illumination: No
On/off switch: Yes
Fan location: Top
Product colour: White, Black

Power
Max output current (+3.3V): 20 A
Combined power (+3.3V): 110 W
Max output current (+12V): 62 A
Combined power (+5V): 110 W
Power Factor Correction (PFC) type: Active
Total power: 750 W
Combined power (-12V): 3.6 W
Power protection features: Short circuit, Over voltage, Overheating, Under voltage, Over current, Over power
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Combined power (+12V): 744 W
AC input voltage: 100 - 240 V
Max output current (+5V): 20 A
Combined power (+5Vsb): 12.5 W

Weight & dimensions
Width: 150 mm
Height: 86 mm
Weight: 1.47 kg
Depth: 150 mm

Performance
Purpose: PC
ATX version: 3.0
Bearing technology: DBB
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold

Packaging data
Package weight: 2.72 kg
Package type: Box

Packaging content
Cables included: CPU, PCIe, SATA, Peripheral (Molex)

Certificates
Compliance certificates: RoHS

Ports & interfaces
SATA power cable length: 400 mm, 120
Peripheral (Molex) power connectors (4-pin): 3
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 5
Cabling type: Fully-Modular
PCI Express power cable length: 67.5 cm
CPU power cable length: 65 cm
Motherboard power cable length: 61 cm
PCI Express power connectors (16-pin): 1
Peripheral (Molex) power cable length: 150, 400 mm
CPU power connector (4+4 pin): Yes
PCI Express power connectors (8-pin): 3
