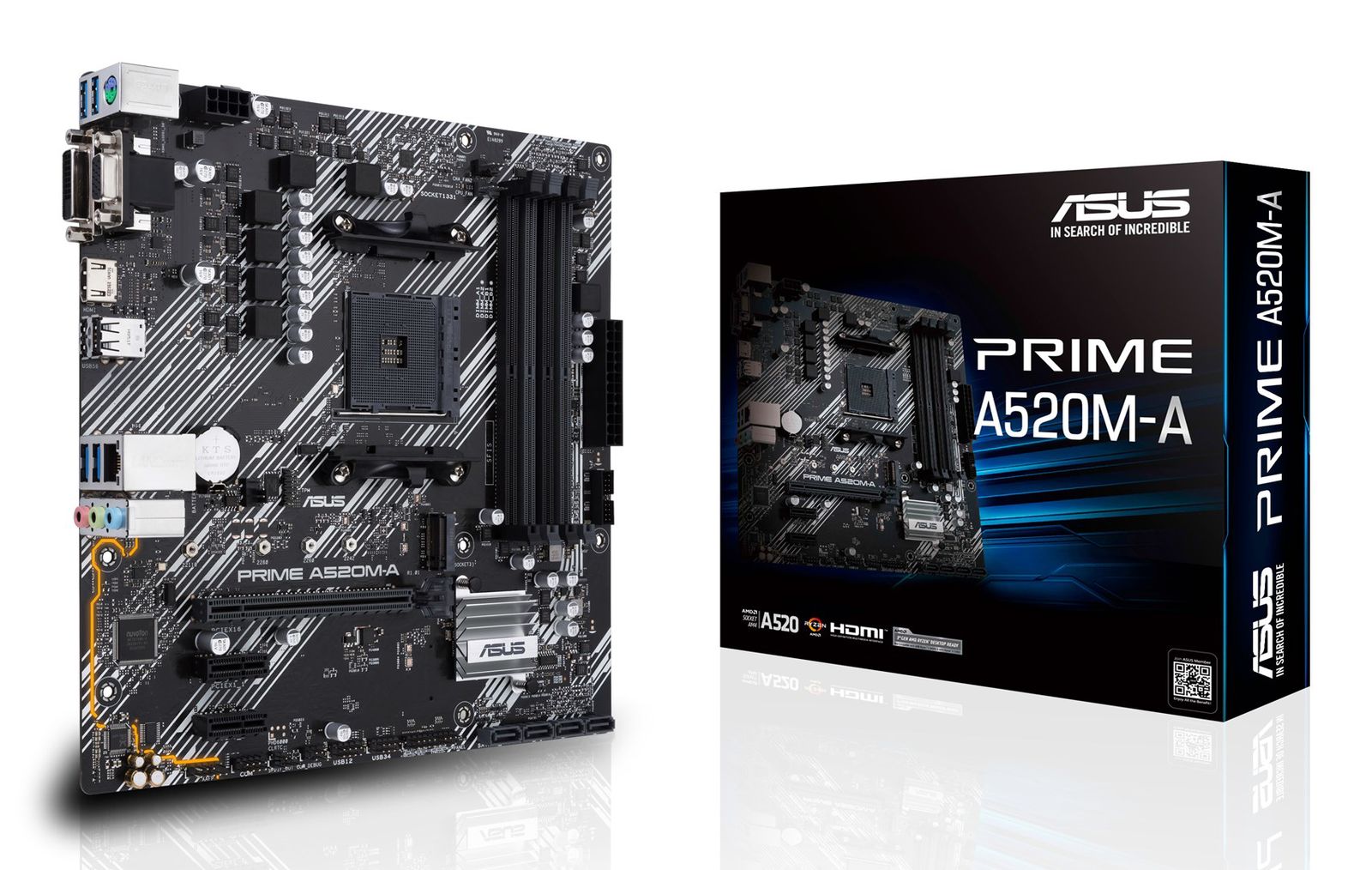

ASUS PRIME A520M-A II /CSM - bundkort

Processor
Processor socket: Socket AM4
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen™ 5, AMD Ryzen™ 3

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Audio chip: Realtek ALC887 / Realtek ALC897
Motherboard form factor: micro ATX
Motherboard chipset: AMD A520
Windows operating systems supported: Windows 10 x64

Memory
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 3000, 2133, 3333, 4466, 4600, 2400, 2800, 3733, 4400, 3200 MHz, 2666, 3866, 3600, 3466, 4133, 4800, 4100
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Memory channels: Dual-channel

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes

Internal I/O
12V power connector: Yes
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 2
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
EPS power connector (8-pin): Yes
CPU fan connector: Yes
Number of COM connectors: 1
TPM connector: Yes
Number of chassis fan connectors: 2

BIOS
BIOS type: UEFI AMI

Storage controllers
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 1, 10, 0
Number of storage drives supported: 5

Rear panel I/O ports
USB connector type: USB Type-A
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Microphone in: Yes
PS/2 ports quantity: 1
HDMI ports quantity: 1

Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 2

Safety warning
Warnings: Dispose of according to local electro-waste regulations., Avoid direct contact with sensitive electronic components., Store away from water and sources of moisture.
