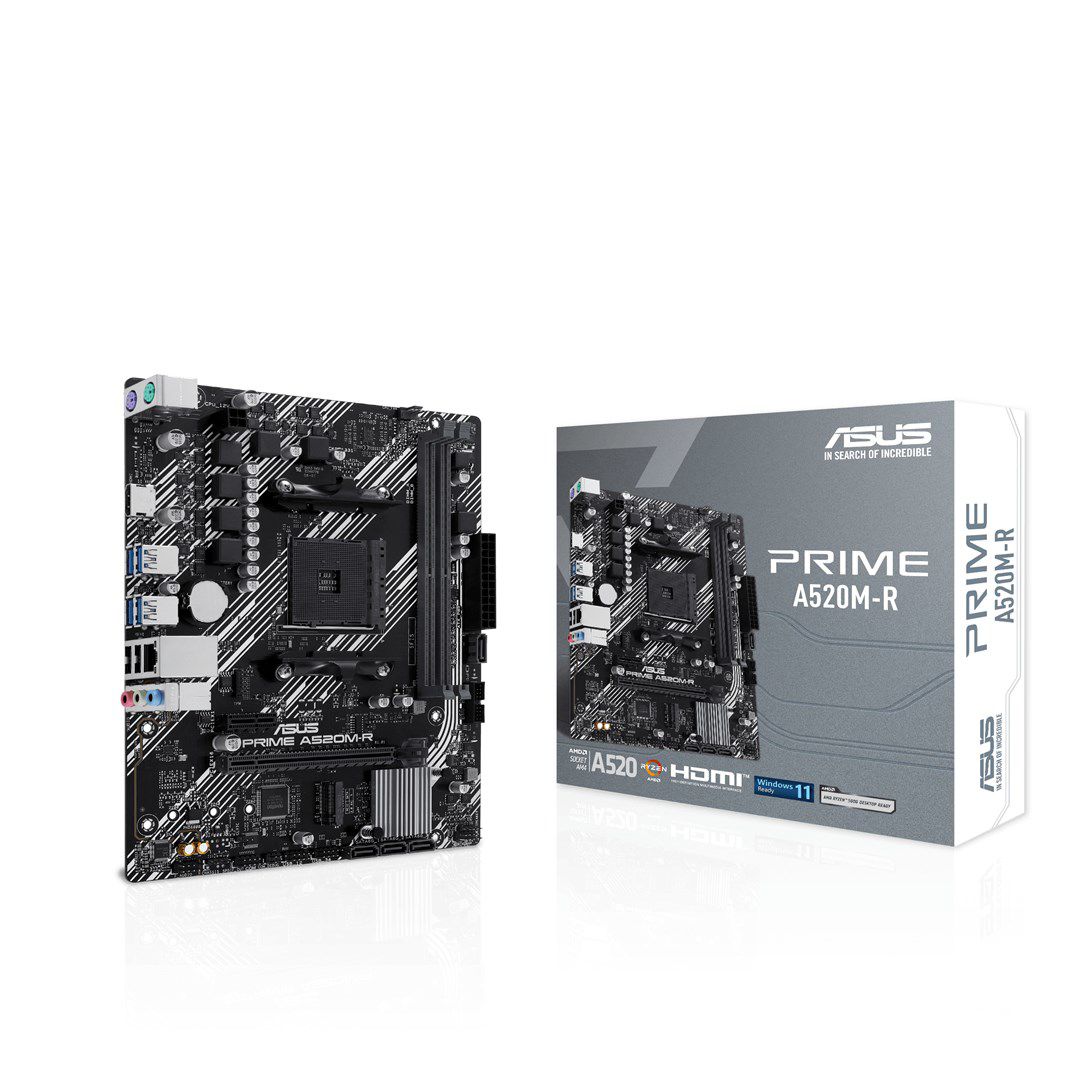

ASUS PRIME A520M-R AMD A520 Socket AM4 micro ATX

Processor
Processor socket: Socket AM4
Compatible processor series: 3rd Generation AMD Ryzen™ 9, AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen 9 5th Gen, AMD Ryzen™ 5
Processor manufacturer: AMD
Supported processor sockets: Socket AM4

Graphics
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11
Motherboard chipset: AMD A520
Cooling type: Passive
Product colour: Black
Motherboard chipset family: AMD

Memory
Unbuffered memory: Yes
Supported memory clock speeds: 3333, 3000, 2400, 2800, 2133 MHz, 3200, 2666, 2933, 3600, 3733, 4400, 4666, 4466, 4333, 4600, 5100 MHz, 4133, 4000, 4200, 4866, 3466, 3400, 3866, 4266
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Number of memory slots: 2
Supported memory clock speed (max): 5100 MHz
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM

Weight & dimensions
Width: 236 mm
Depth: 193 mm

Network
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes

Internal I/O
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
Number of chassis fan connectors: 1
Number of COM connectors: 1
12V power connector: Yes
CPU fan connector: Yes
TPM connector: Yes
Peripheral (Molex) power connectors (4-pin): 1

BIOS
BIOS type: UEFI AMI

Packaging data
Package weight: 880 g
Package width: 270 mm
Package height: 51.5 mm
Package depth: 263 mm

Packaging content
Cables included: SATA

Storage controllers
Supported storage drive interfaces: M.2, SATA III
RAID levels: 1, 10, 0
Number of storage drives supported: 5
RAID support: Yes
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
Microphone in: Yes
Line-in: Yes
Headphone outputs: 1
PS/2 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI version: 2.1
HDMI ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1

Safety warning
Warnings: Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.
