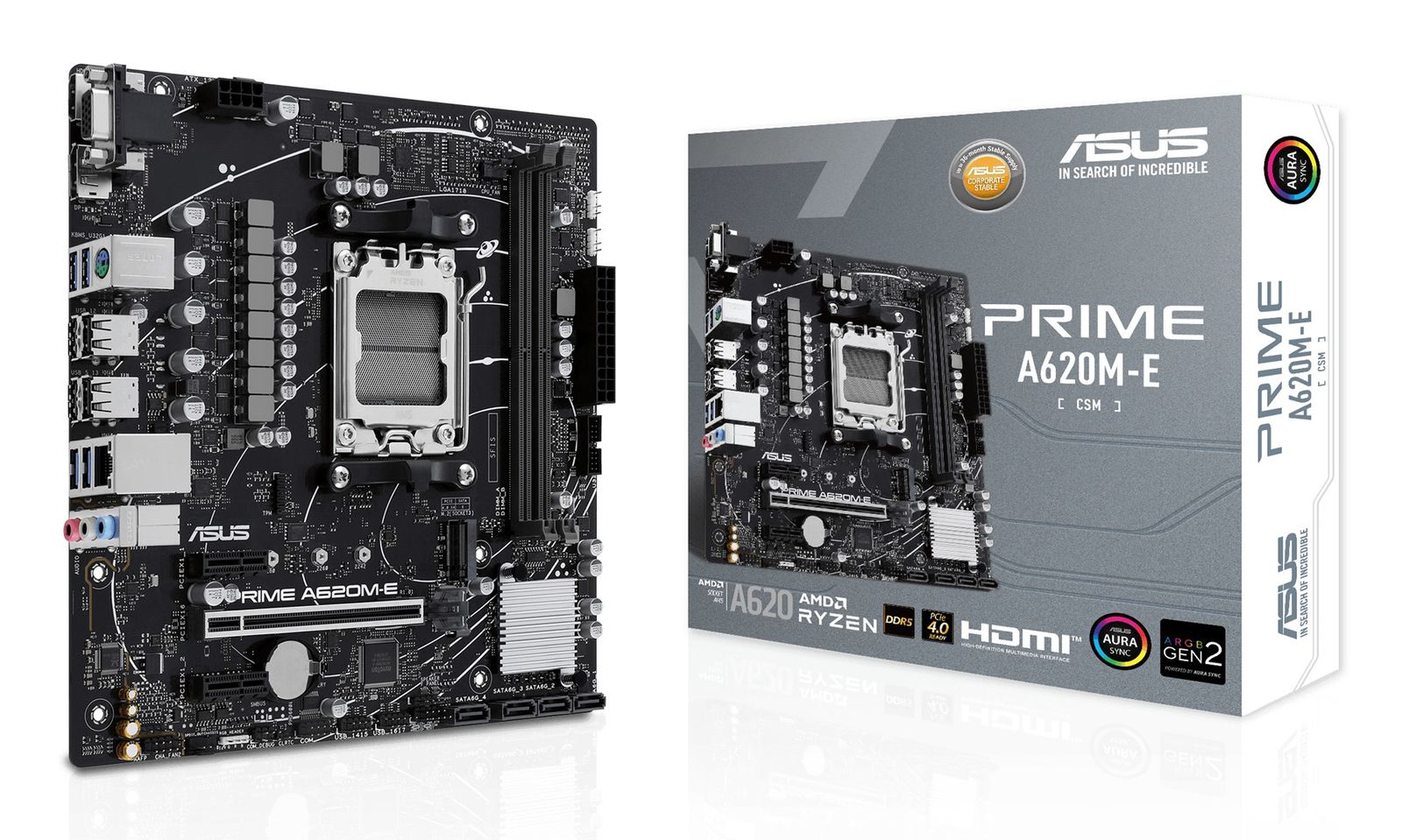

ASUS PRIME A620M-E-CSM AMD A620 Socket AM5 micro ATX

Processor
Compatible processor series: AMD Ryzen 7000 Series
Processor socket: Socket AM5
Processor manufacturer: AMD
Supported processor sockets: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 10, Windows 11
Power source type: ATX
Motherboard form factor: micro ATX
Cooling type: Passive
Audio output channels: 7.1 channels
Motherboard chipset: AMD A620
Component for: PC
Motherboard chipset family: AMD

Memory
Memory channels: Dual-channel
Number of memory slots: 2
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
ECC сompatibility: Non-ECC
Supported memory clock speeds: 5200, 5600, 6000, 5000, 6200, 4800, 6400, 5800, 5400
Maximum internal memory: 96 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 6400 MHz

Weight & dimensions
Width: 226 mm
Depth: 221 mm

Network
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes

Internal I/O
TPM connector: Yes
RGB LED pin header: Yes
12V power connector: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 4
EPS power connector (8-pin): Yes
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
Number of COM connectors: 1
Number of chassis fan connectors: 2
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
CPU fan connector: Yes

BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data
Package height: 51.5 mm
Package depth: 270 mm
Package weight: 940 g
Package width: 260 mm

Packaging content
Cables included: SATA
User guide: Yes

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 5
Supported storage drive types: HDD & SSD
RAID levels: 0, 1, 10
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI version: 2.1
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
Line-in: Yes
PS/2 ports quantity: 1
Microphone in: Yes
Headphone outputs: 1
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
USB 2.0 ports quantity: 4

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
