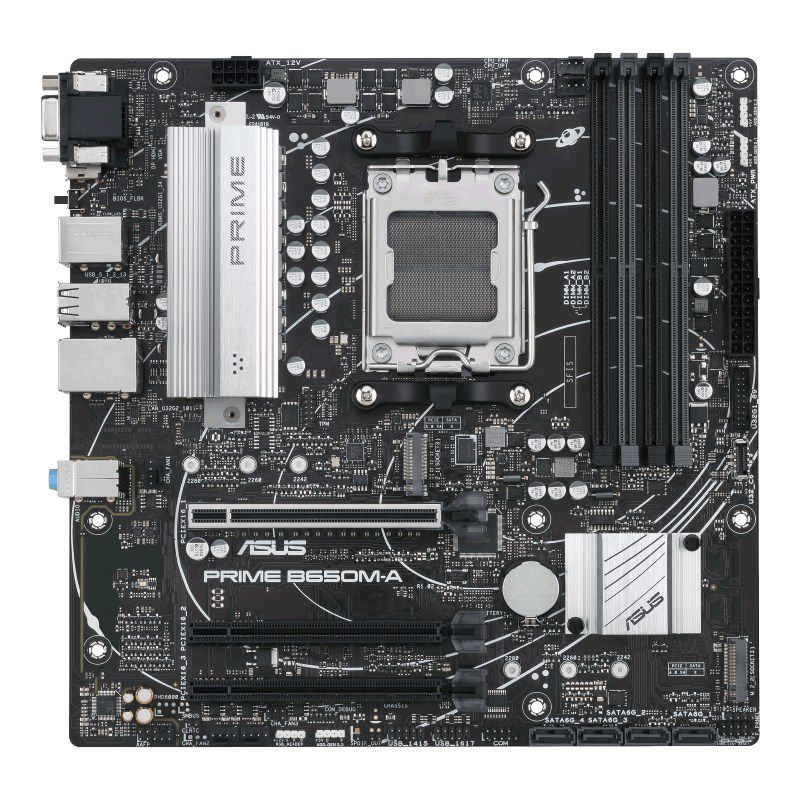

ASUS PRIME B650M-A AMD B650 Socket AM5 micro ATX

Processor
Compatible processor series: AMD Ryzen™ 7
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11, Windows 10 x64
Motherboard form factor: micro ATX

Memory
Supported memory clock speeds: 6400, 4800, 6200, 5200, 5600 MHz, 5800, 5400, 6000, 5000
Maximum internal memory: 128 GB
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Memory channels: Dual-channel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes

Internal I/O
S/PDIF out connector: Yes
ATX Power connector (24-pin): Yes
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 8
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 3
Number of COM connectors: 1
Audio connector: Yes
RGB LED pin header: Yes
12V power connector: Yes

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package width: 280 mm
Package depth: 265 mm
Package weight: 1.32 kg
Package height: 71 mm

Packaging content
Cables included: SATA

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 10, 1, 0
Number of storage drives supported: 10

Rear panel I/O ports
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
VGA (D-Sub) ports quantity: 1
Headphone outputs: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Line-in: Yes
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 3
