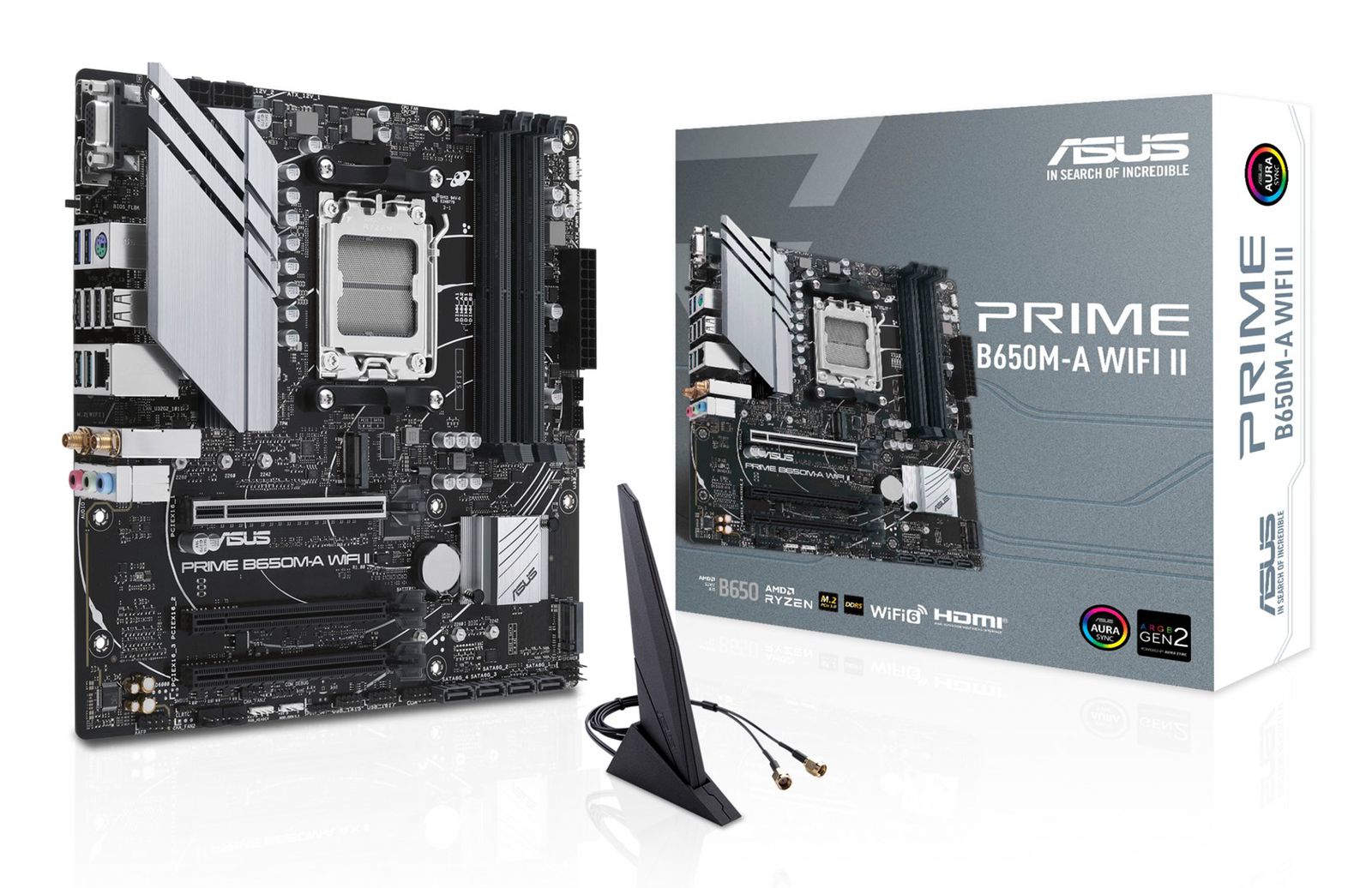

ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX

Processor
Compatible processor series: AMD Ryzen™ 7
Processor manufacturer: AMD
Processor socket: Socket AM5

Features
Windows operating systems supported: Windows 11, Windows 10
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Power source type: ATX
Motherboard chipset: AMD B650

Memory
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 5200, 6200, 6400, 5600, 6000, 4800, 5800, 5400, 5000
Maximum internal memory: 128 GB

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11g, Wi-Fi 5 (802.11ac)
Bluetooth version: 5.2
Ethernet interface type: 2.5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth: Yes

Internal I/O
Total number of SATA connectors: 4
EPS power connector (8-pin): Yes
Audio connector: Yes
12V power connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of chassis fan connectors: 3
ATX Power connector (24-pin): Yes
Number of COM connectors: 1
Front panel connector: Yes
TPM connector: Yes
Power fan connector: Yes
CPU fan connector: Yes
Peripheral (Molex) power connectors (4-pin): 4
S/PDIF out connector: Yes
Number of SATA connectors: 4
USB 2.0 connectors: 2

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes
Bundled software: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 2
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 10, 1, 0
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
Headphone outputs: 1
Line-in: Yes
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
Microphone in: Yes
USB connector type: USB Type-A
DisplayPorts quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 3

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.
