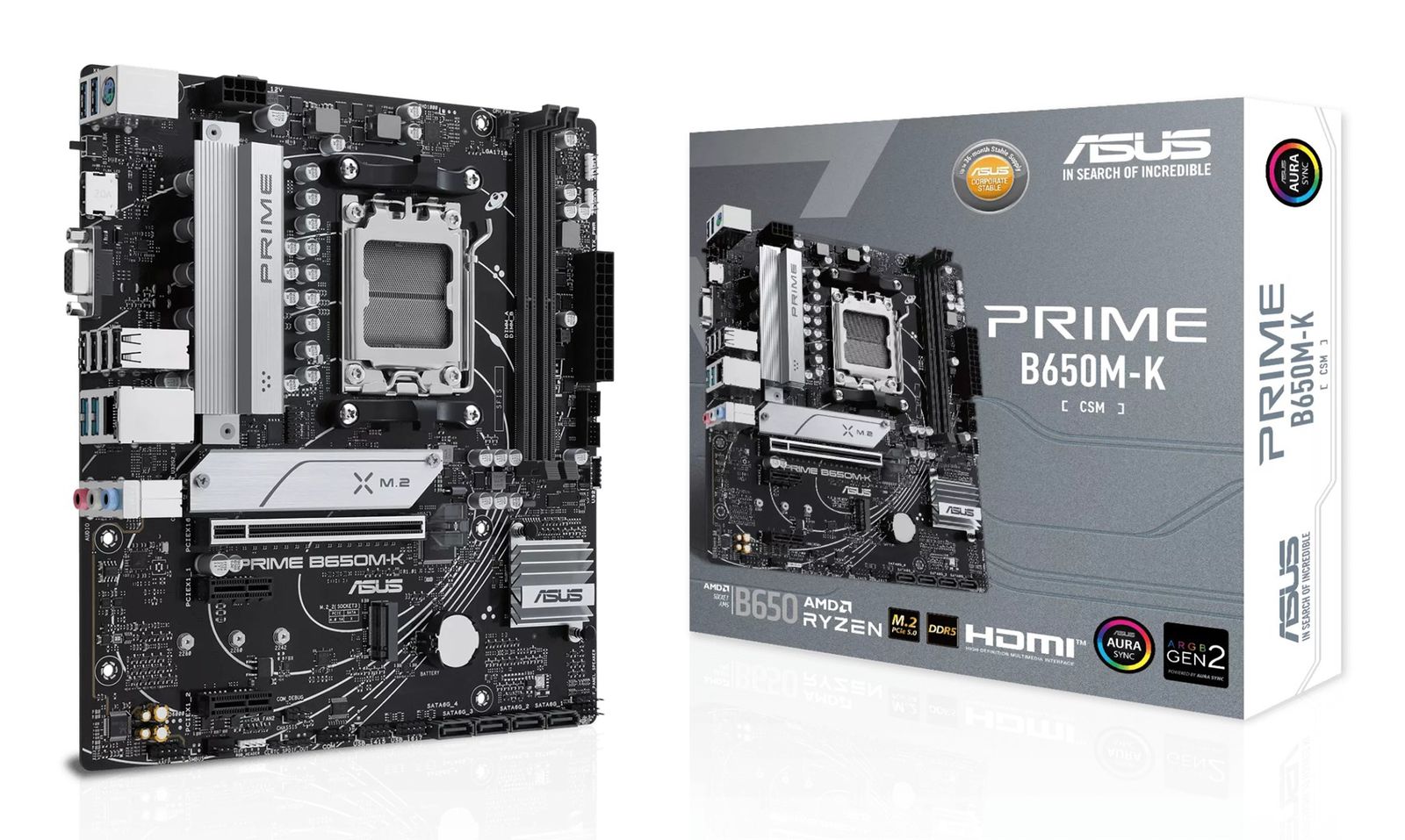

ASUS PRIME B650M-K AMD B650 Socket AM5 micro ATX

Processor
Compatible processor series: AMD Ryzen 7000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset family: AMD
Motherboard chipset: AMD B650
Component for: PC
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11, Windows 10 x64

Memory
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 6400 MHz
Supported memory clock speeds: 4800, 6200, 6400, 5600, 5000, 6000, 5200, 5800, 5400
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 96 GB
Unbuffered memory: Yes
Memory channels: Dual-channel

Weight & dimensions
Width: 244 mm
Depth: 221 mm

Network
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
12V power connector: Yes
RGB LED pin header: Yes
Audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
CPU fan connector: Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 2
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
S/PDIF out connector: Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes

BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data
Package weight: 1.07 kg
Package height: 51.5 mm
Package width: 260 mm
Package depth: 270 mm

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 10

Rear panel I/O ports
Headphone outputs: 1
VGA (D-Sub) ports quantity: 1
Microphone in: Yes
PS/2 ports quantity: 1
Line-in: Yes
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x1 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 2
