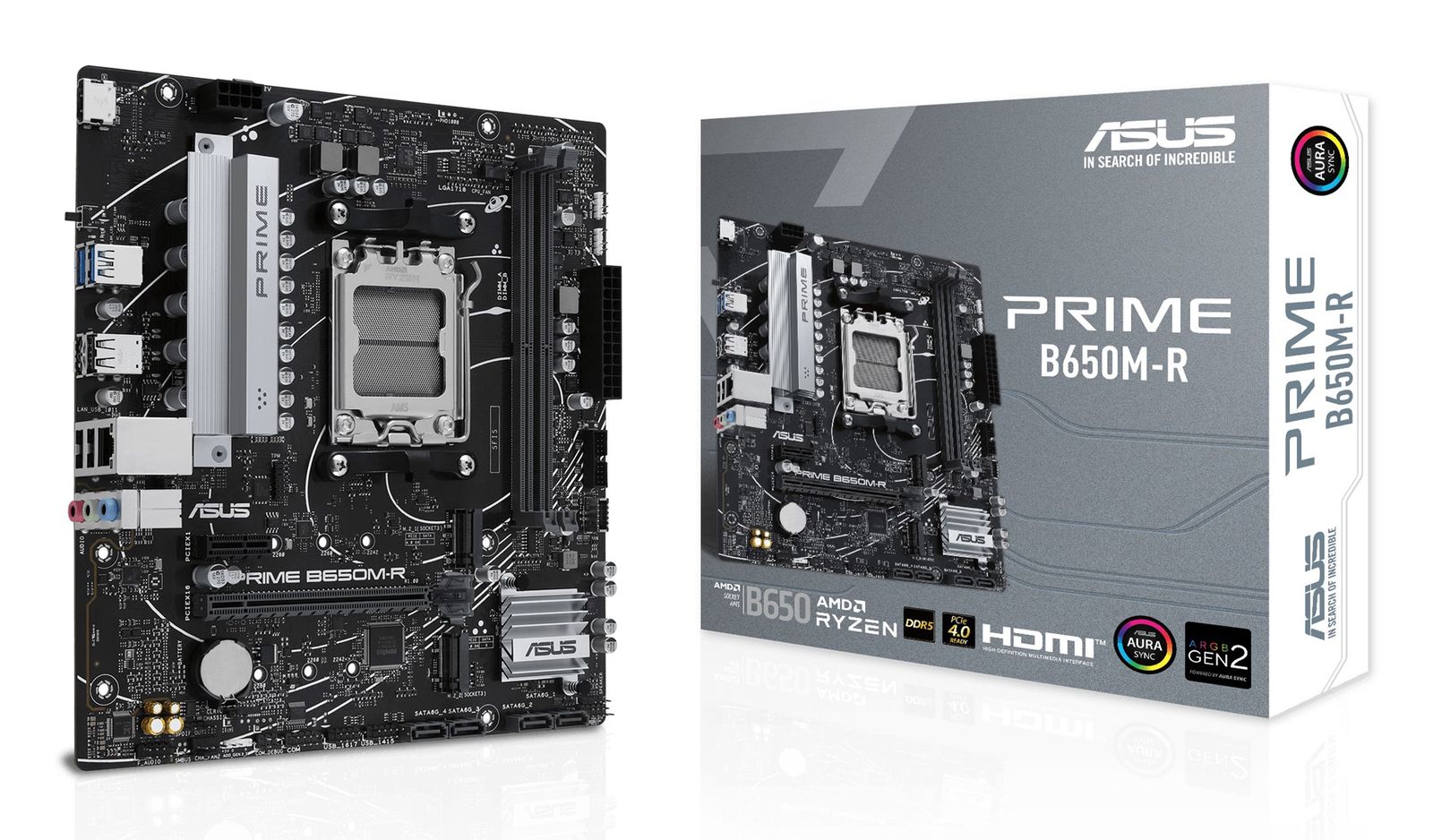

ASUS PRIME B650M-R AMD B650 Socket AM5 micro ATX

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Cooling type: Passive
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10, Windows 11
Motherboard chipset: AMD B650
Component for: PC
Power source type: ATX
Motherboard chipset family: AMD
Product colour: Black

Memory
ECC сompatibility: Non-ECC
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory clock speed (max): 7200 MHz
Supported memory clock speeds: 6600, 5600, 6400 MHz, 5200, 5000, 6800, 5800, 5400, 6000, 7000, 6200, 7200, 4800
Maximum internal memory: 96 GB
Unbuffered memory: Yes

Weight & dimensions
Width: 236 mm
Depth: 221 mm

Network
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes

Internal I/O
RGB LED pin header: Yes
12V power connector: Yes
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 2
S/PDIF out connector: Yes
Number of SATA III connectors: 4
Number of COM connectors: 1
USB 2.0 connectors: 2
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes

BIOS
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI

Packaging data
Package width: 260 mm
Package weight: 855 g
Package height: 51.5 mm
Package depth: 270 mm

Packaging content
Cables included: SATA
User guide: Yes

Storage controllers
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 10, 1, 0
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Line-in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
HDMI ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2

Other features
Back-to-BIOS button: Yes
