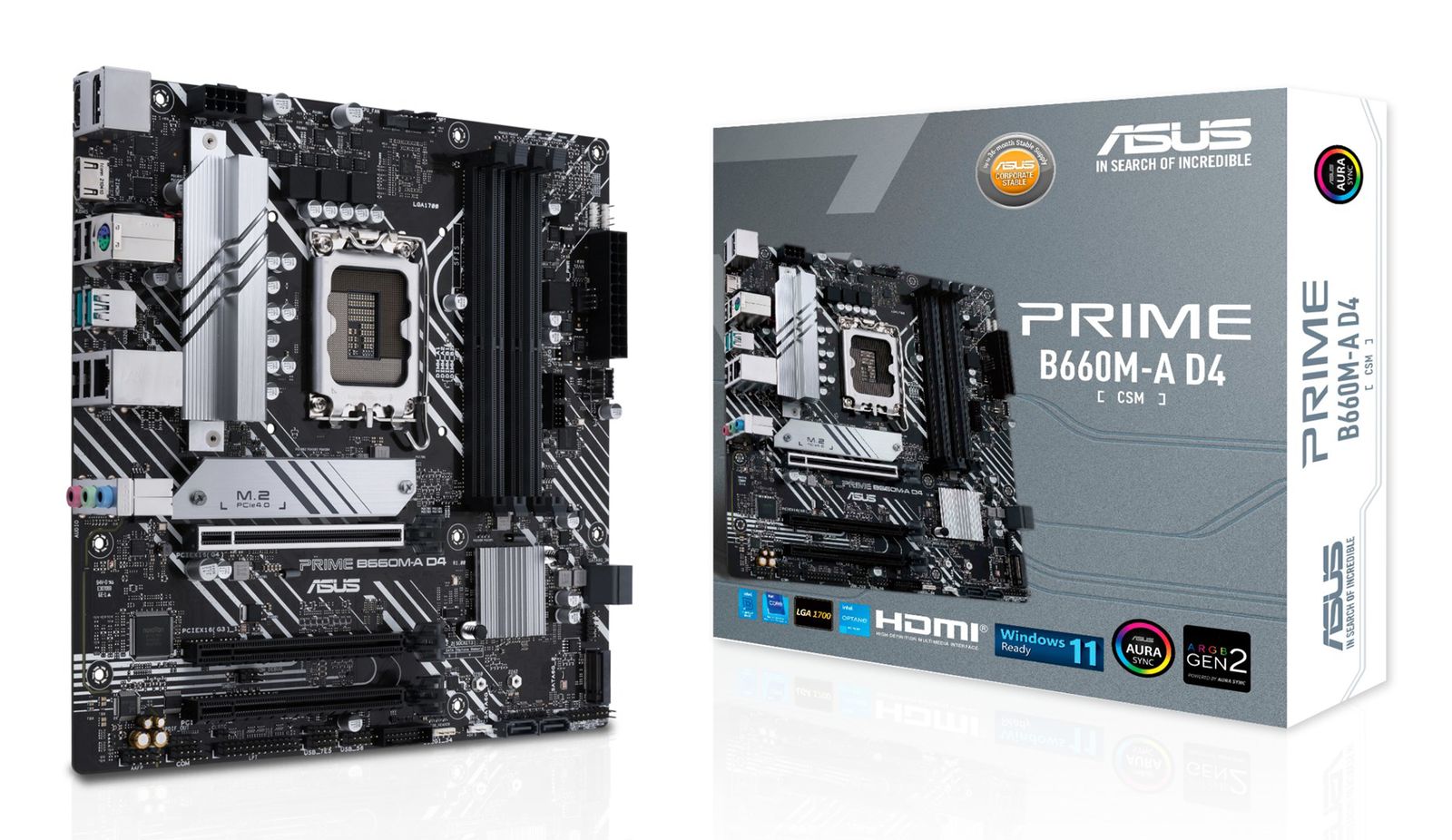

ASUS PRIME B660M-A D4-CSM Intel B660 LGA 1700 micro ATX

(ocijenilo: 0 korisnik/a)

Šifra: 28-WLONONWCRECT7 | Brand: ASUS
ASUS

228,10 €
  • Dostupno za narudžbu, isporuka unutar 3 do 14 radnih dana
  • Mogućnost plaćanja na rate
    Već od 6,87 €/mj. ℹ️
  • Cijena dostave za ovaj artikl je 6,00 €
U košaricu
Processor
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3

Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel B660
Motherboard form factor: micro ATX
Cooling type: Passive
Motherboard chipset family: Intel
Audio chip: Realtek ALC897
Component for: PC
Windows operating systems supported: Windows 10, Windows 11

Memory
Supported memory clock speeds: 2933, 3600, 3200 MHz, 2400, 2133, 3466, 2666, 4266, 4600, 3333, 3000, 5333 MHz, 2800, 4000, 4800, 3400, 3733, 4400, 5000
Maximum internal memory: 128 GB
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Number of memory slots: 4
Memory slots type: DIMM
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 5333 MHz

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
Front panel audio connector: Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Power fan connector: Yes
S/PDIF out connector: Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
RGB LED pin header: Yes
Number of chassis fan connectors: 2
TPM connector: Yes

BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit

Packaging content
Cables included: SATA

Storage controllers
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 0, 5, 1, 10
Number of HDDs supported: 4
Number of storage drives supported: 6

Rear panel I/O ports
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
HDMI ports quantity: 2

Expansion slots
PCI Express x16 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
