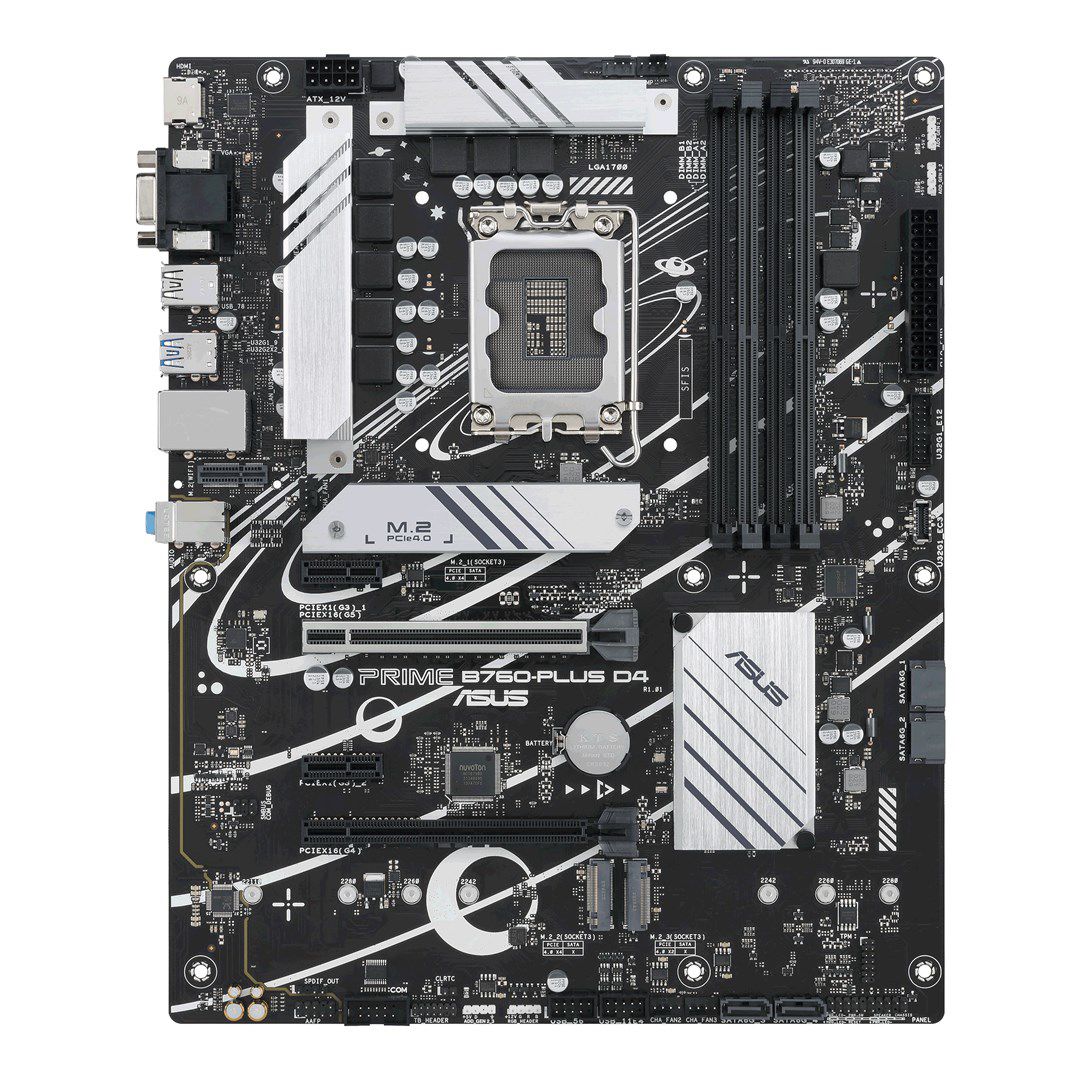

ASUS PRIME B760-PLUS D4 Intel B760 LGA 1700 ATX

Processor
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 10, Windows 11
Cooling type: Passive
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard form factor: ATX
Motherboard chipset: Intel B760
Motherboard chipset family: Intel

Memory
Memory channels: Dual-channel
Unbuffered memory: Yes
Supported memory clock speeds: 4600, 3200 MHz, 2666, 4266, 2133, 3733, 3466, 4400, 5000, 3000, 3400, 2400, 2800, 5066, 3333, 2933, 3600, 4000, 4800
Maximum internal memory: 128 GB
Memory slots type: DIMM
Supported memory clock speed (max): 5066 MHz
Supported memory types: DDR4-SDRAM
Number of memory slots: 4

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes

Internal I/O
Front panel audio connector: Yes
Thunderbolt headers: 1
EPS power connector (8-pin): Yes
Number of SATA III connectors: 4
Number of COM connectors: 1
Peripheral (Molex) power connectors (4-pin): 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
S/PDIF out connector: Yes
TPM connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 3
RGB LED pin header: Yes
12V power connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package weight: 1.16 kg
Package width: 328 mm
Package depth: 266 mm
Package height: 53 mm

Packaging content
Cables included: SATA
User guide: Yes

Storage controllers
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 10, 5, 0, 1
Number of HDDs supported: 4
Number of storage drives supported: 7

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
DisplayPort version: 1.4
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 1
Line-in: Yes
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1

Other features
Number of M.2 (E) slots: 1
