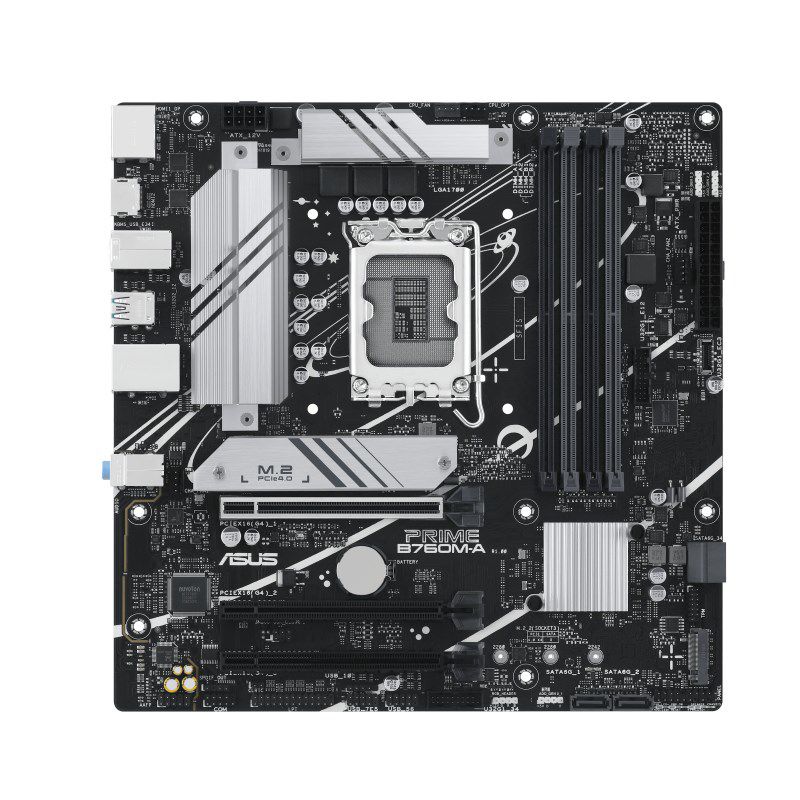

ASUS PRIME B760M-A-CSM Intel B760 LGA 1700 micro ATX

Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer: Intel
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64, Windows 11
Component for: PC

Memory
ECC сompatibility: Non-ECC
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Supported memory clock speeds: 5800, 5400, 7000, 5600, 7200 MHz, 6400, 6200, 6000, 5200, 4800, 6800, 5000, 6600
Number of memory slots: 4
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 7200 MHz

Weight & dimensions
Width: 244 mm
Height: 40 mm
Depth: 244 mm

Network
Ethernet LAN: Yes
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
USB 2.0 connectors: 3
ATX Power connector (24-pin): Yes
S/PDIF out connector: Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
RGB LED pin header: Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
Number of COM connectors: 1
12V power connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 2

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes
BIOS memory size: 128 Mbit

Packaging data
Package weight: 1.14 kg
Package height: 52 mm
Package depth: 263 mm
Package width: 270 mm

Packaging content
Cables included: SATA

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
Number of HDDs supported: 4

Rear panel I/O ports
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
HDMI ports quantity: 2
WiFi-AP antenna jack: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
PS/2 ports quantity: 1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 3
