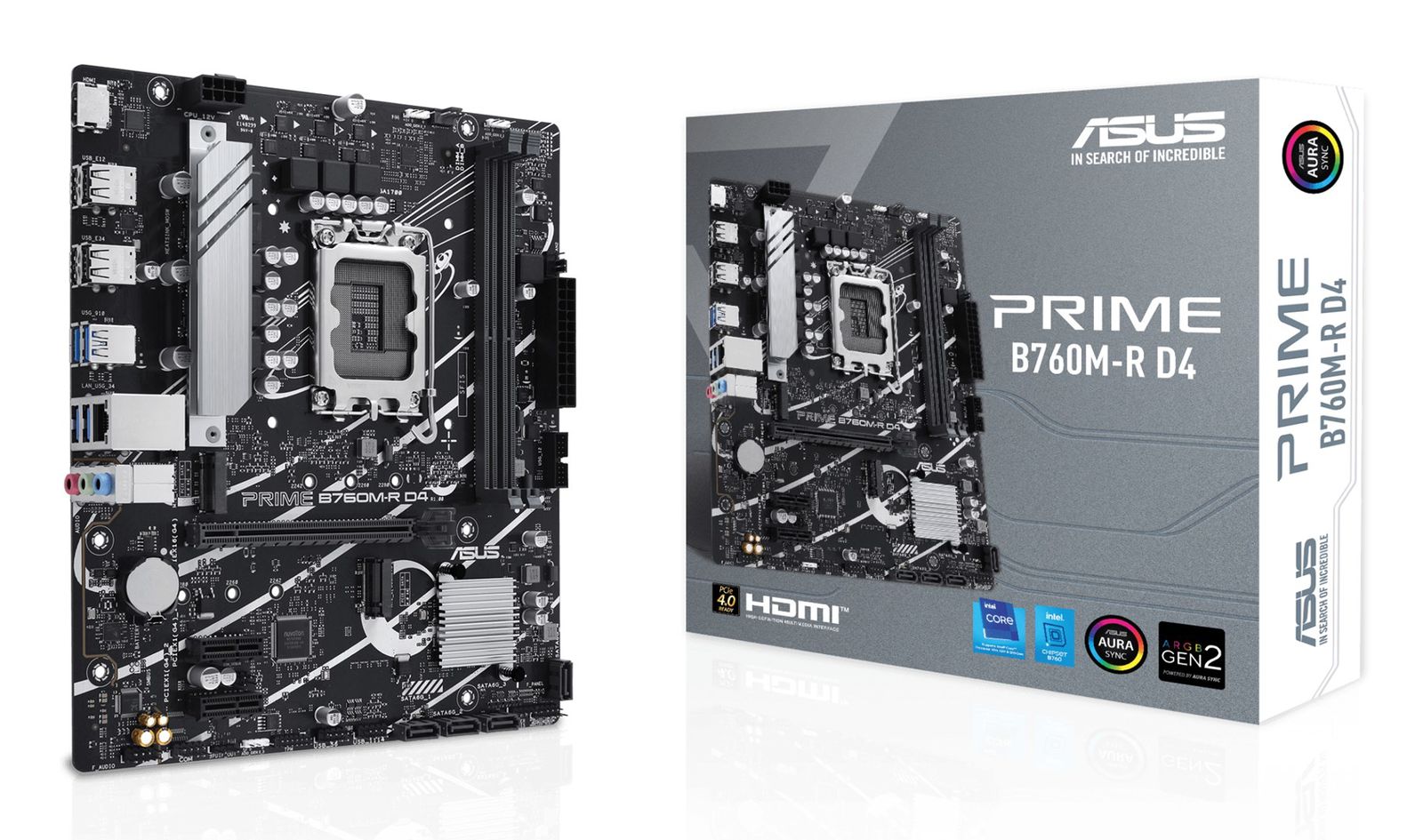

ASUS PRIME B760M-R D4 Intel B760 LGA 1700 micro ATX

Processor
Processor socket: LGA 1700
Compatible processor series: Intel Core i3 13th Gen, Intel Core i3 12th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i7 13th Gen, Intel Core i7 12th Gen, Intel Core i9 13th Gen, Intel Core i5 12th Gen, Intel Core i9 14th Gen
Processor manufacturer: Intel
Supported processor sockets: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Power source type: ATX
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Motherboard chipset: Intel B760
Product colour: Black
Windows operating systems supported: Windows 10, Windows 11
Cooling type: Passive
Component for: PC

Memory
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 2400, 2800, 5066, 3733, 4400, 5000, 3400, 3000, 5333 MHz, 2933, 3600, 3333, 3466, 3200 MHz, 2666, 4266, 4000, 4800, 4600, 2133
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 5333 MHz

Weight & dimensions
Depth: 211 mm
Width: 244 mm

Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No

Internal I/O
RGB LED pin header: Yes
12V power connector: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 2
CPU fan connector: Yes
TPM connector: Yes

BIOS
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI

Packaging data
Package width: 270 mm
Package weight: 903 g
Package height: 51.5 mm
Package depth: 263 mm

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 5, 0, 10, 1
Number of storage drives supported: 6

Rear panel I/O ports
Headphone outputs: 1
Line-in: Yes
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 4.x) slots: 2

Safety warning
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
