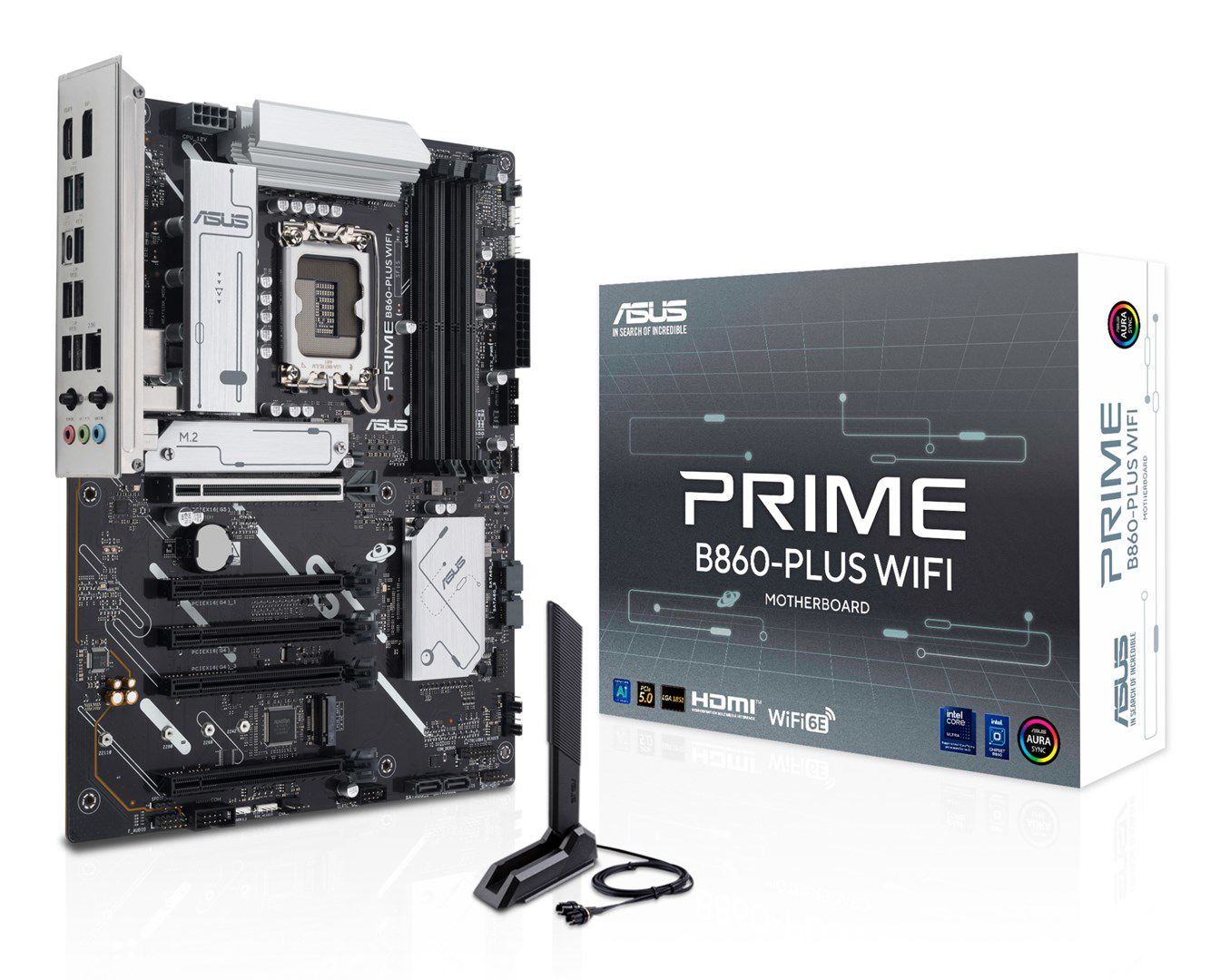

ASUS PRIME B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX

Processor
Supported processor sockets: LGA 1851
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Product colour: Black, Aluminium
Motherboard chipset: Intel B860
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11, Windows 10 x64

Memory
ECC сompatibility: Non-ECC
Number of memory slots: 4
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Maximum internal memory: 256 GB

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth version: 5.3
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes

Internal I/O
CPU fan connector: Yes
Front panel audio connector: Yes
RGB LED pin header: Yes
Thunderbolt headers: 1
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of COM connectors: 1
Chassis intrusion connector: Yes
Number of SATA III connectors: 4
TPM connector: Yes
12V power connector: Yes
Front panel connector: Yes
USB 2.0 connectors: 1
Number of chassis fan connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
ATX Power connector (24-pin): Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package weight: 1.66 kg
Package depth: 372 mm
Package width: 377 mm
Package height: 302 mm

Packaging content
Screws included: Yes
Antenna included: Yes
Cables included: SATA

Storage controllers
RAID levels: 0, 10, 1, 5
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
DisplayPorts quantity: 1
WiFi-AP antenna jack: 1

Expansion slots
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 4.x) slots: 4
Number of M.2 (M) slots: 2

Safety warning
Warnings: Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician.
