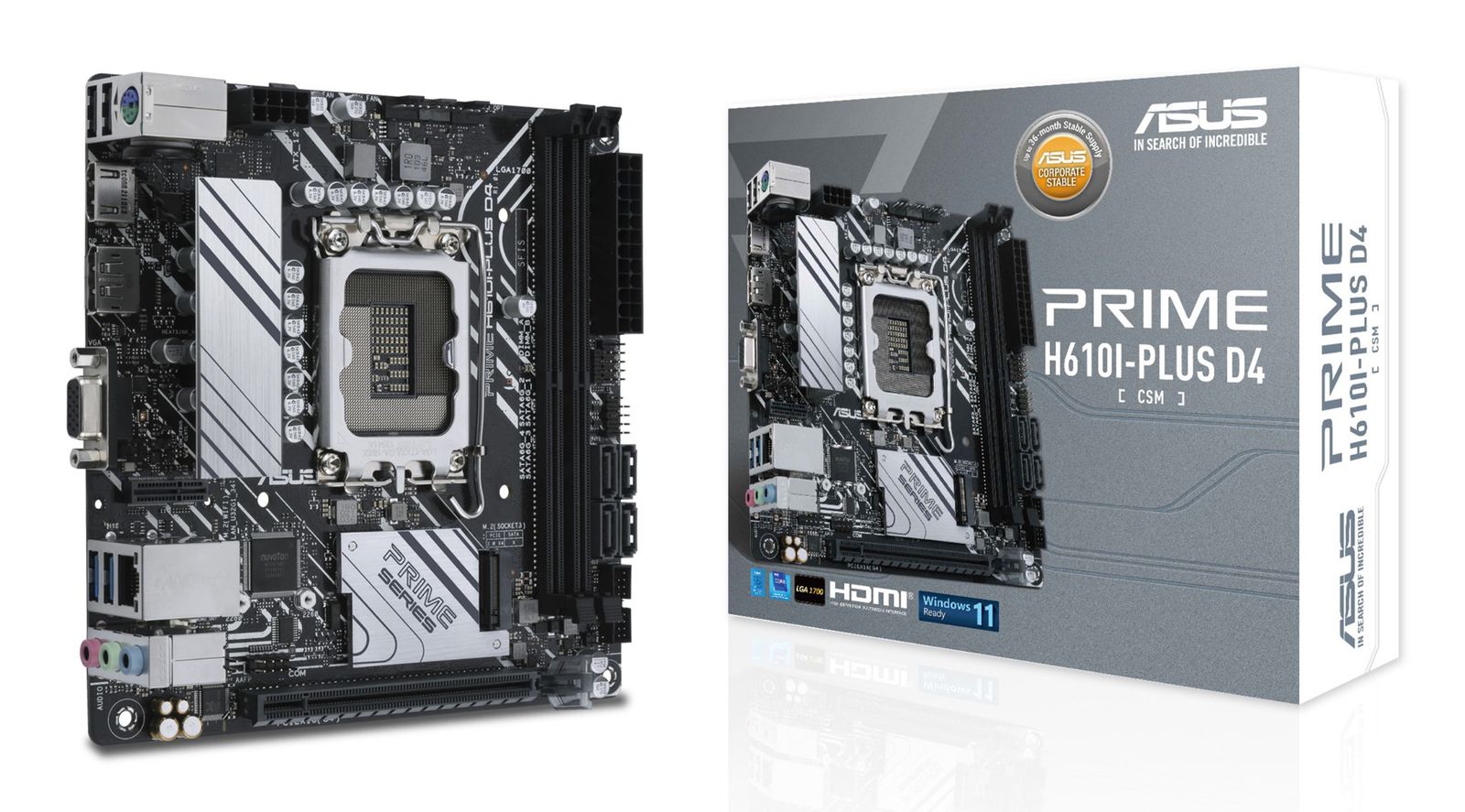

ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX

Processor
Maximum internal memory supported by processor: 64 GB
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Core™ i3
Compatible operating systems: Windows® 11 64-bit, Windows® 10 64-bit

Features
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Motherboard chipset: Intel H610
Component for: PC
Power source type: ATX
Motherboard form factor: mini ITX
Motherboard chipset family: Intel

Memory
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Number of memory slots: 2
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2933, 3200 MHz, 2666, 3000, 2400, 2800, 2133
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Memory channels: Dual-channel

Weight & dimensions
Depth: 170.2 mm
Height: 71 mm
Width: 170.2 mm

Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Number of COM connectors: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
Power fan connector: Yes
Number of chassis fan connectors: 1
CPU fan connector: Yes
USB 2.0 connectors: 1

BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit

Packaging data
Package width: 226 mm
Package height: 60 mm
Package depth: 182 mm

Packaging content
Cables included: SATA
Drivers included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Headphone outputs: 2
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Microphone in: Yes
PS/2 ports quantity: 2

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1

Other features
Weight: 382 g

Logistics data
Harmonized System (HS) code: 84733020

Safety warning
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply.
