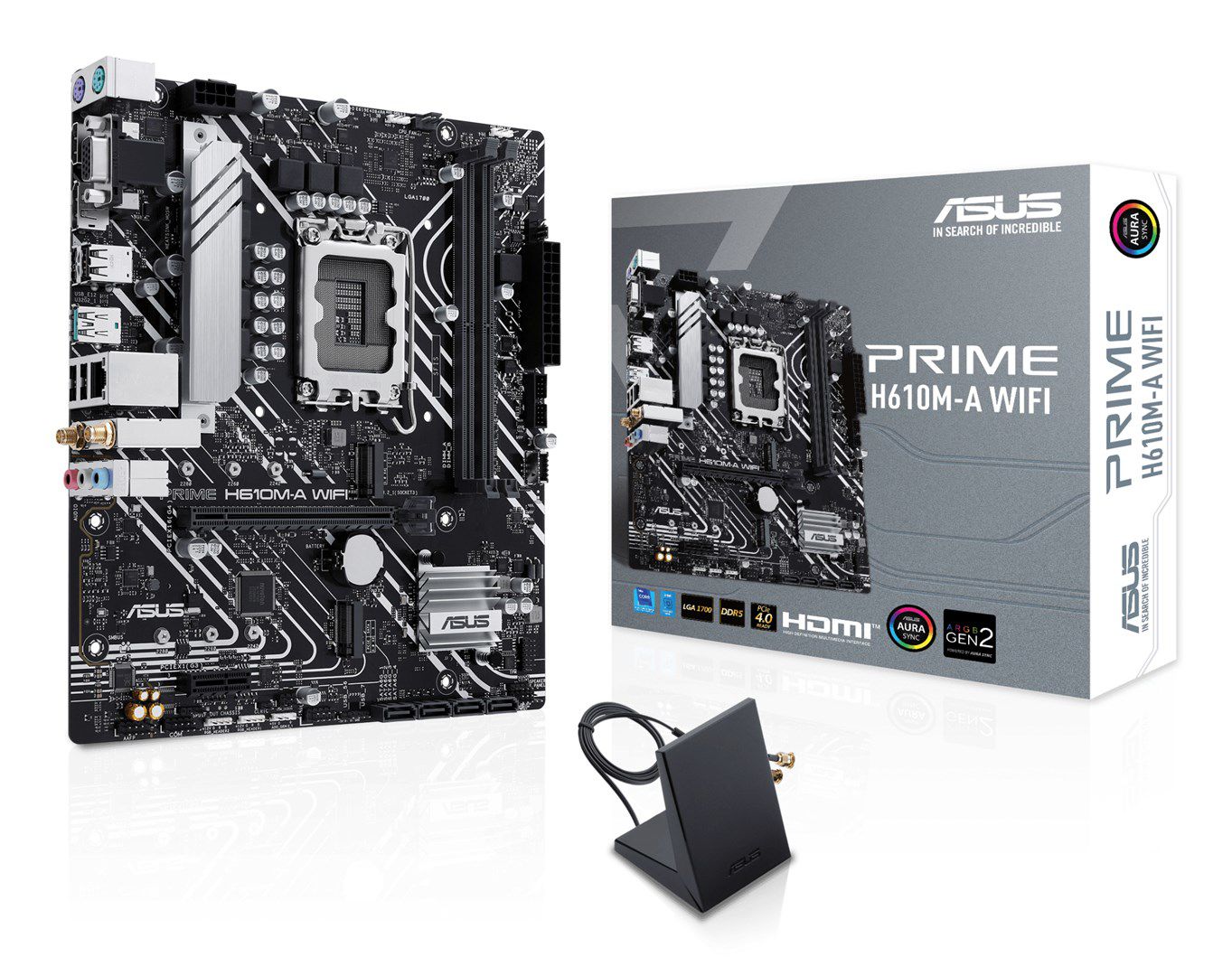

ASUS PRIME H610M-A WIFI Intel H610 LGA 1700 micro ATX

Processor
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel H610
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11 x64, Windows 10 x64

Memory
Supported memory clock speed (max): 5600 MHz
Memory channels: Dual-channel
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800, 5000, 5400, 5200, 5600
Maximum internal memory: 96 GB
Unbuffered memory: Yes

Weight & dimensions
Depth: 216 mm
Width: 244 mm

Network
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, 802.11b, Wi-Fi 5 (802.11ac), 802.11a
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Ethernet LAN: Yes
Bluetooth version: 5.0
Wi-Fi: Yes
Ethernet interface type: Gigabit Ethernet
Bluetooth: Yes

Internal I/O
12V power connector: Yes
Audio connector: Yes
RGB LED pin header: Yes
Front panel audio connector: Yes
S/PDIF out connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging data
Package weight: 1.07 kg
Package depth: 263 mm
Package width: 270 mm
Package height: 51.5 mm

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
HDMI ports quantity: 1
PS/2 ports quantity: 2
HDMI version: 2.1
VGA (D-Sub) ports quantity: 1
WiFi-AP antenna jack: 1
Line-in: Yes
Microphone in: Yes
Headphone outputs: 1
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
