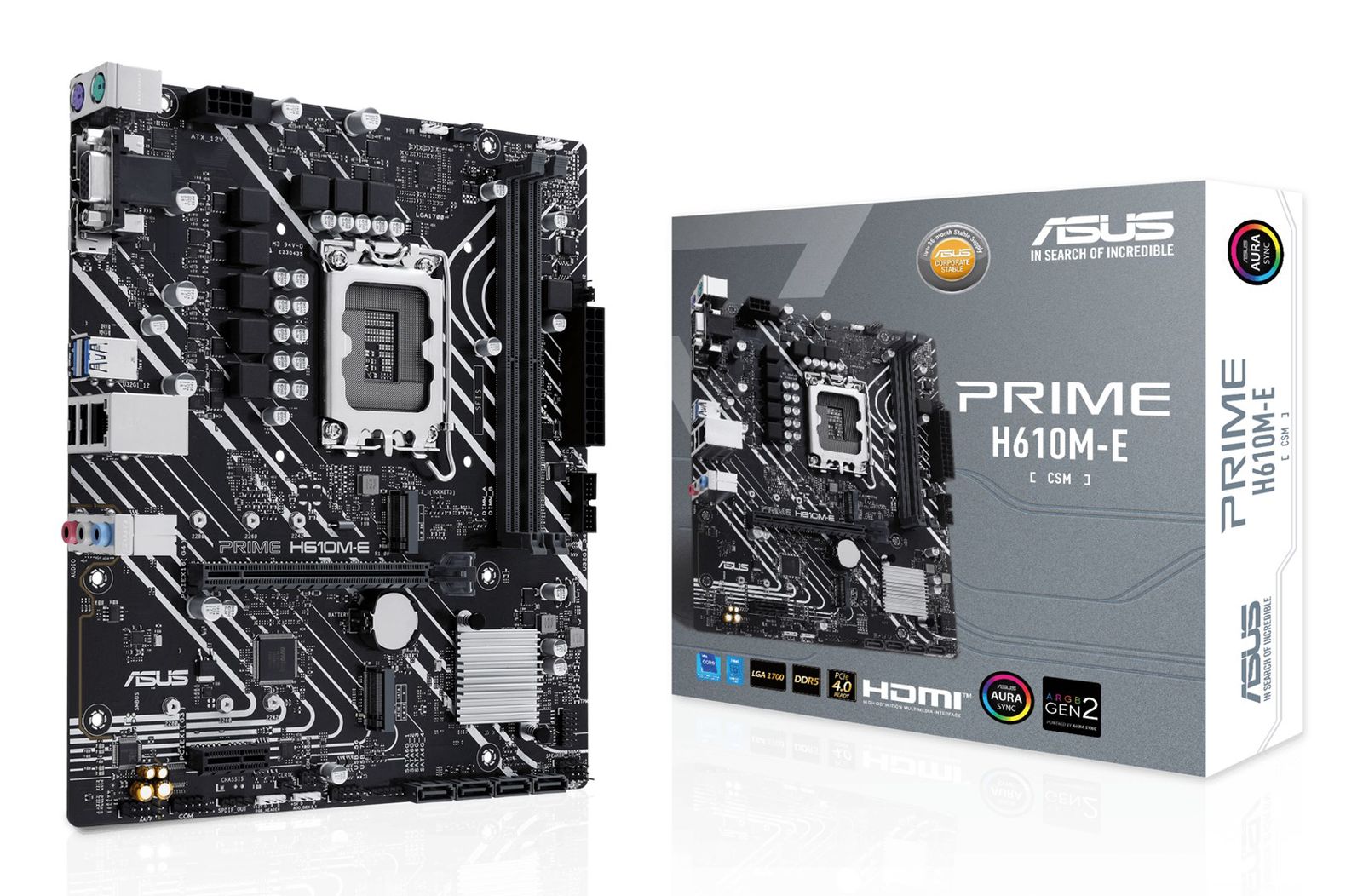

ASUS PRIME H610M-E-CSM Intel H610 LGA 1700 micro ATX

Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Processor manufacturer: Intel
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Cooling type: Passive
Power source type: ATX
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset: Intel H610
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11, Windows 10

Memory
Maximum internal memory: 96 GB
Supported memory clock speeds: 5200, 5000, 5400, 4800, 5600
Unbuffered memory: Yes
Supported memory clock speed (max): 5600 MHz
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
ECC сompatibility: Non-ECC

Weight & dimensions
Depth: 211 mm
Width: 244 mm

Network
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
Front panel audio connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Number of chassis fan connectors: 2
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes

BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit

Packaging data
Package weight: 890 g
Package width: 270 mm
Package depth: 263 mm
Package height: 51.5 mm

Packaging content
Cables included: SATA
User guide: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 6

Rear panel I/O ports
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
HDMI version: 2.1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 2

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
