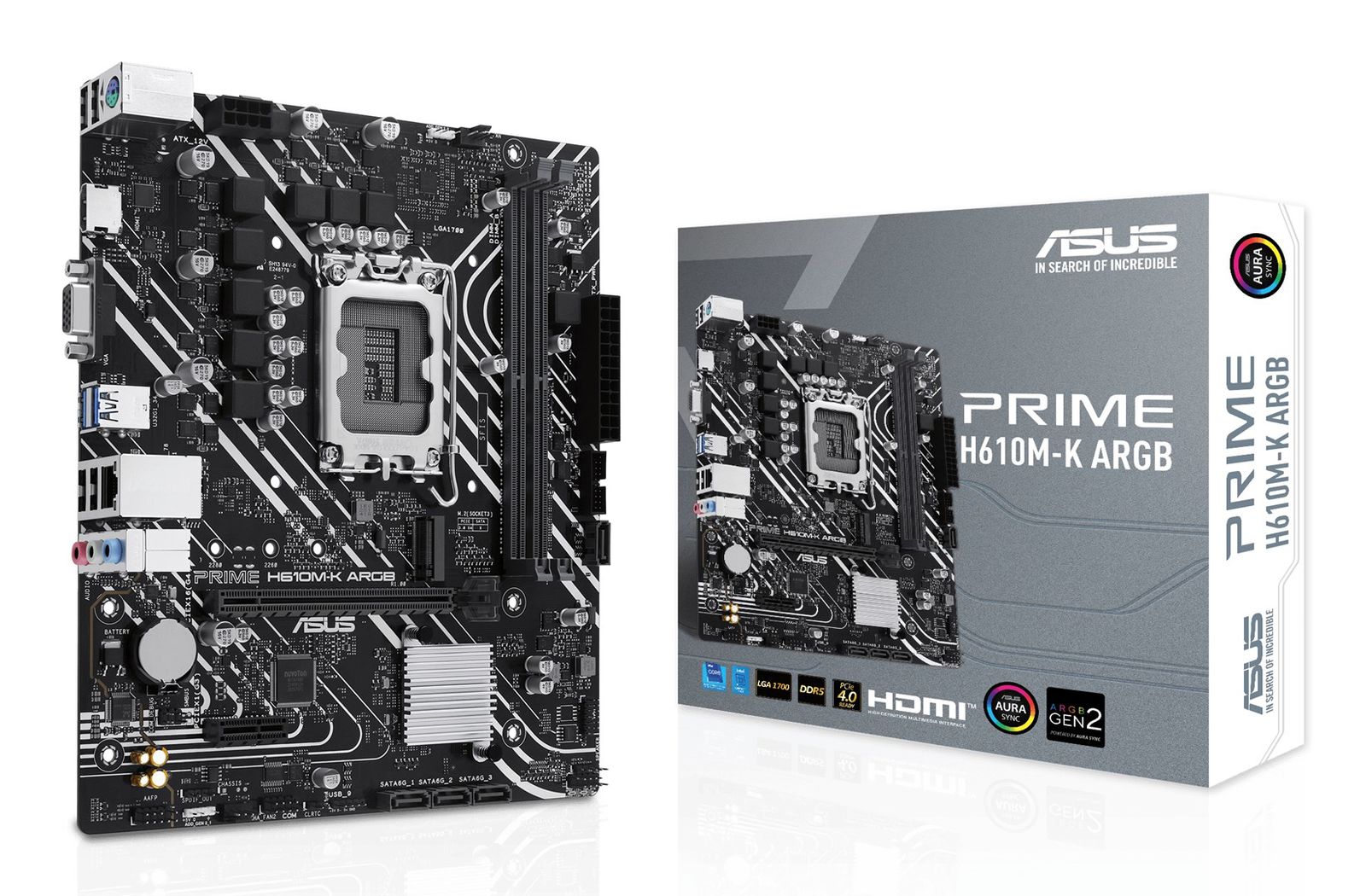

ASUS PRIME H610M-K ARGB Intel H610 LGA 1700 micro ATX

Processor
Compatible processor series: Intel® Pentium®, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer: Intel
Processor socket: LGA 1700
Maximum number of SMP processors: 1

Graphics
Parallel processing technology support: Not supported

Features
Motherboard form factor: micro ATX
Component for: PC
Motherboard chipset: Intel H610
Power source type: ATX
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Cooling type: Passive
Motherboard chipset family: Intel

Memory
Number of memory slots: 2
Supported memory clock speeds: 5200, 5600, 5000, 5400, 4800
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Maximum internal memory: 96 GB
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speed (max): 5600 MHz
ECC сompatibility: Non-ECC

Weight & dimensions
Depth: 203 mm
Width: 234 mm

Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
12V power connector: Yes
Number of COM connectors: 1
Number of chassis fan connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
S/PDIF out connector: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 1
Number of SATA III connectors: 4
RGB LED pin header: Yes
Front panel audio connector: Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
TPM connector: Yes

BIOS
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI

Packaging data
Package height: 51.5 mm
Package weight: 820 g
Package depth: 263 mm
Package width: 270 mm

Packaging content
Cables included: SATA
User guide: Yes

Storage controllers
Number of storage drives supported: 5
Supported storage drive interfaces: M.2, SATA
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 4
HDMI version: 2.1
Line-in: Yes
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
Headphone outputs: 1
PS/2 ports quantity: 1
Microphone in: Yes

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1

Other features
Weight: 470 g
