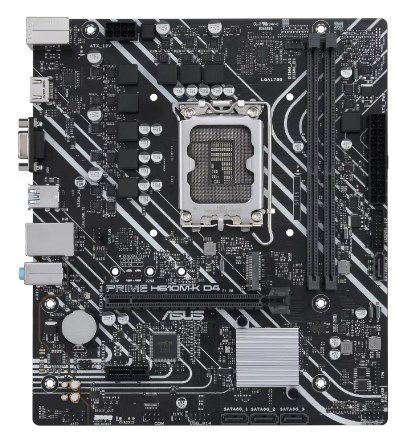

ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX

Processor
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer: Intel

Graphics
Number of displays supported: 2

Features
Motherboard chipset family: Intel
Motherboard chipset: Intel H610
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Harmonized System (HS) code: 84733020

Memory
Unbuffered memory: Yes
Supported memory clock speeds: 2933, 3000, 2400, 2800, 3200 MHz, 2666, 2133
Maximum internal memory: 64 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR4-SDRAM

Weight & dimensions
Depth: 203 mm
Height: 51 mm
Width: 234 mm

Network
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 1
S/PDIF out connector: Yes
Front panel audio connector: Yes
Number of COM connectors: 1
EPS power connector (8-pin): Yes
TPM connector: Yes
CPU fan connector: Yes
RGB LED pin header: Yes
12V power connector: Yes
Number of chassis fan connectors: 1

BIOS
BIOS type: UEFI AMI

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
Supported storage drive interfaces: M.2, SATA
Supported storage drive types: HDD & SSD

Rear panel I/O ports
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
HDMI version: 2.1
PS/2 ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1

Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1

Other features
Weight: 842 g
