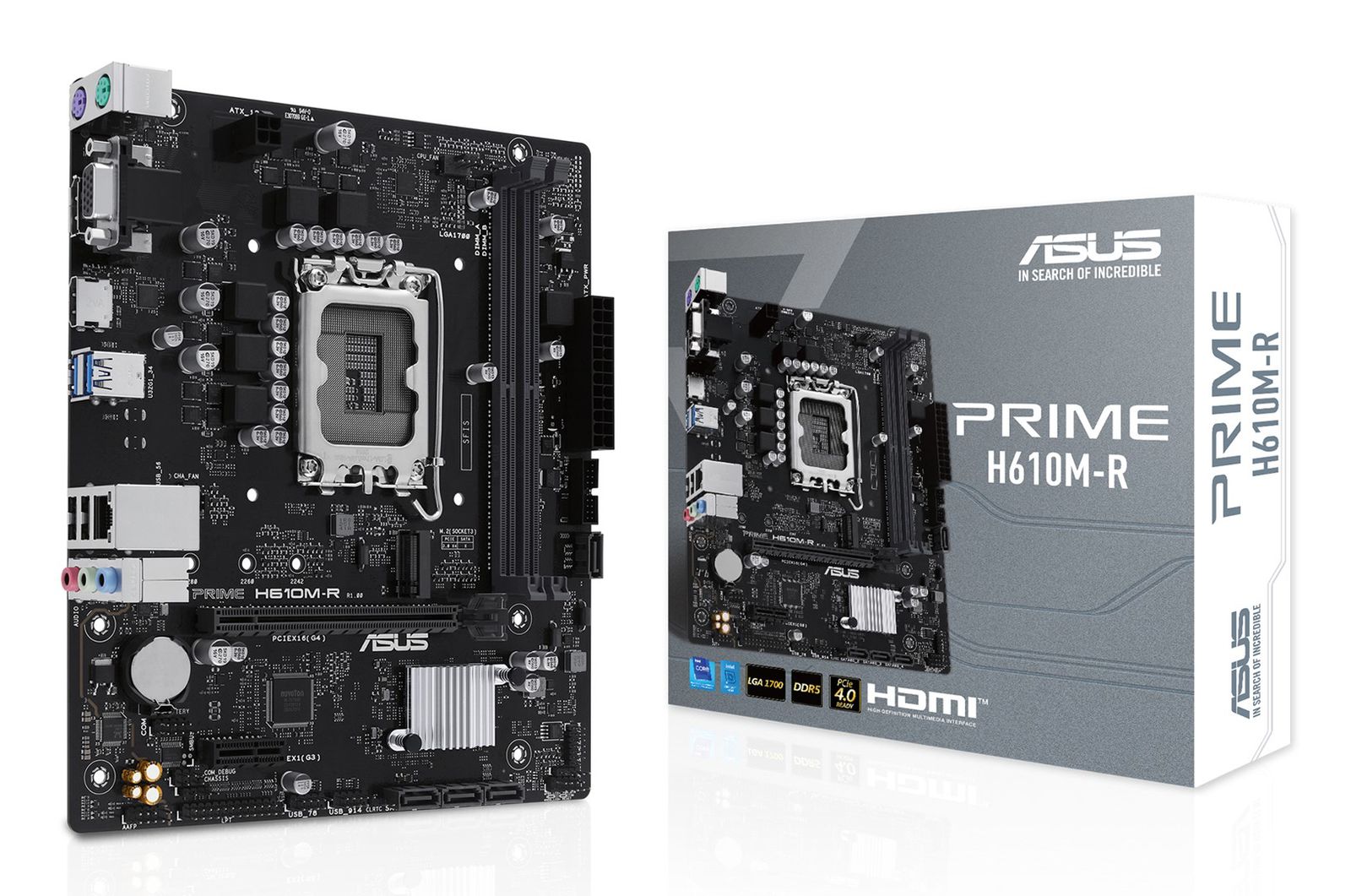

ASUS PRIME H610M-R-SI Intel H610 LGA 1700 micro ATX

Processor
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer: Intel

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset family: Intel
Motherboard chipset: Intel H610
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX

Memory
ECC сompatibility: Non-ECC
Memory channels: Dual-channel
Supported memory clock speeds: 4800, 5200, 5400, 5600, 5000
Maximum internal memory: 96 GB
Unbuffered memory: Yes
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 5600 MHz

Weight & dimensions
Height: 36.5 mm
Width: 226 mm
Depth: 195 mm

Network
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes

Internal I/O
Number of COM connectors: 1
Front panel audio connector: Yes
Number of SATA III connectors: 4
TPM connector: Yes
Number of chassis fan connectors: 1
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
12V power connector: Yes
Audio connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package weight: 680 g
Package width: 246 mm
Package height: 50 mm
Package depth: 223 mm

Packaging content
Cables included: SATA

Storage controllers
Number of storage drives supported: 5
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
PS/2 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
Microphone in: Yes
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
Line-in: Yes

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1

Other features
Weight: 437 g
