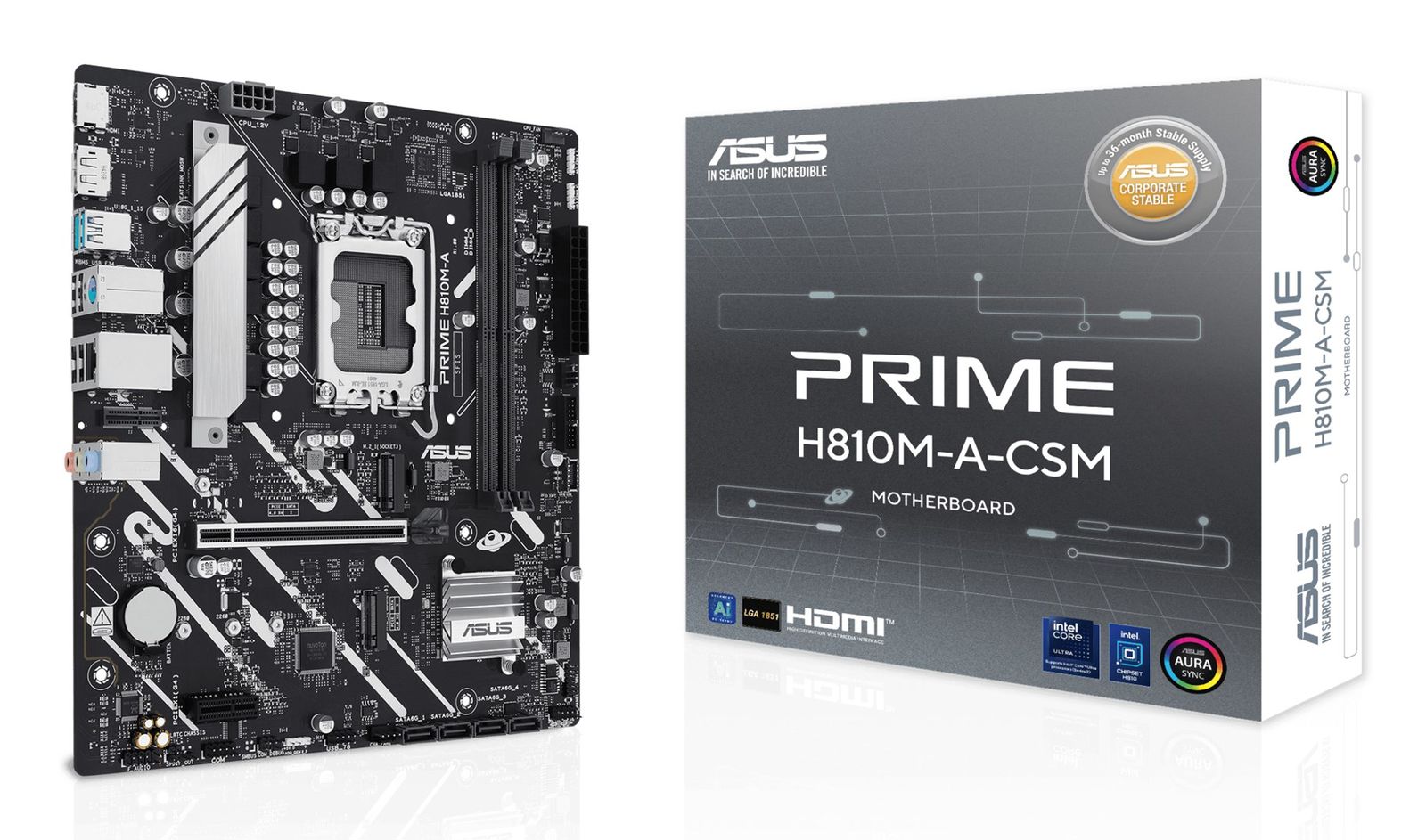

ASUS PRIME H810M-A-CSM Intel H810 LGA 1851 (Socket V1) micro ATX motherboard

Processor
Supported processor sockets: LGA 1851
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)

Graphics
Parallel processing technology support: Not supported
On-board graphics card: No

Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel H810
Product colour: Black
Power source type: ATX
Windows operating systems supported: Windows 11, Windows 10 x64
Motherboard chipset family: Intel
Motherboard form factor: micro ATX

Memory
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory clock speed (max): 6400 MHz
ECC сompatibility: Non-ECC

Weight & dimensions
Depth: 222 mm
Height: 37 mm
Width: 244 mm

Network
Wake-on-LAN ready: Yes
LAN controller: Intel I219V
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes

Internal I/O
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 2
CPU fan connector: Yes
Number of SATA III connectors: 4
Front panel connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 1
Number of COM connectors: 1
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
TPM connector: Yes
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 3
Number of CPU fan connectors: 1

BIOS
BIOS type: UEFI AMI

Packaging data
Package width: 270 mm
Package weight: 782 g
Package depth: 263 mm
Package height: 51.5 mm

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of storage drives supported: 6
Number of HDDs supported: 4

Rear panel I/O ports
DisplayPorts quantity: 1
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
Line-in: Yes
PS/2 ports quantity: 1
Microphone in: Yes
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280

Other features
Weight: 534 g
Number of M.2 (E) slots: 1

Safety warning
Warnings: Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics.
