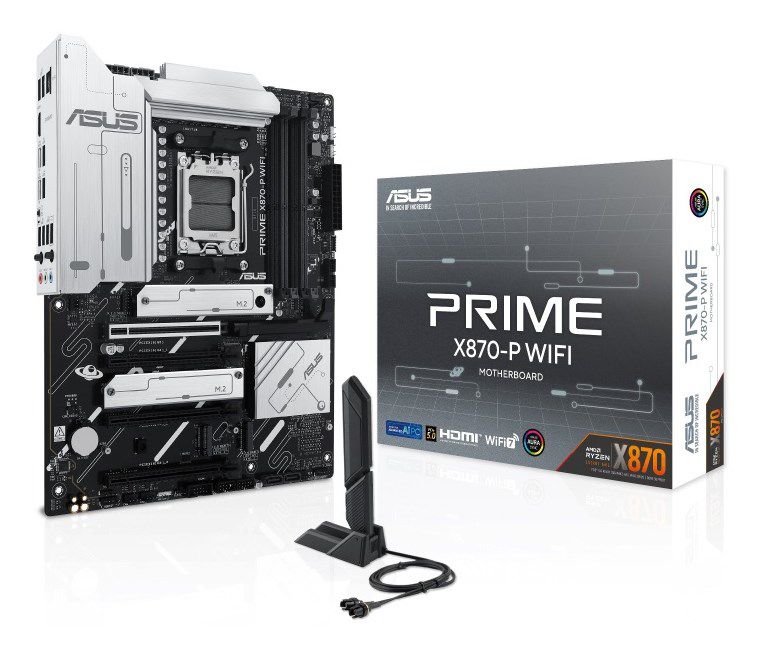

ASUS Prime X870-P WIFI AMD X870 Motherboard AM5 Socket ATX

Processor
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Product colour: Black
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11, Windows 10
Motherboard form factor: ATX
Cooling type: Passive
Motherboard chipset family: AMD
Power source type: ATX
Motherboard chipset: AMD X870

Memory
Memory slots type: DIMM
Supported memory clock speed (max): 8000 MHz
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Unbuffered memory: Yes
Maximum internal memory: 192 GB
ECC сompatibility: ECC & Non-ECC

Weight & dimensions
Depth: 244 mm
Width: 305 mm
Height: 48 mm

Network
Ethernet LAN: Yes
Wi-Fi standards: 802.11g, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth: Yes

Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
12V power connector: Yes
USB 2.0 connectors: 2
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 4
Number of SATA III connectors: 2
Front panel audio connector: Yes
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
TPM connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS
BIOS type: UEFI AMI

Packaging data
Package height: 68 mm
Package weight: 1.56 kg
Package depth: 273 mm
Package width: 353 mm

Packaging content
Cables included: SATA

Storage controllers
Number of storage drives supported: 6
Number of HDDs supported: 2
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD
RAID levels: 1, 0, 5, 10

Rear panel I/O ports
Microphone in: Yes
USB4 Gen 2x2 ports quantity: 2
Line-in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
DisplayPort version: 1.4a

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 3
Number of M.2 (M) slots: 4

Other features
Back-to-BIOS button: Yes
Weight: 1.56 kg

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.
