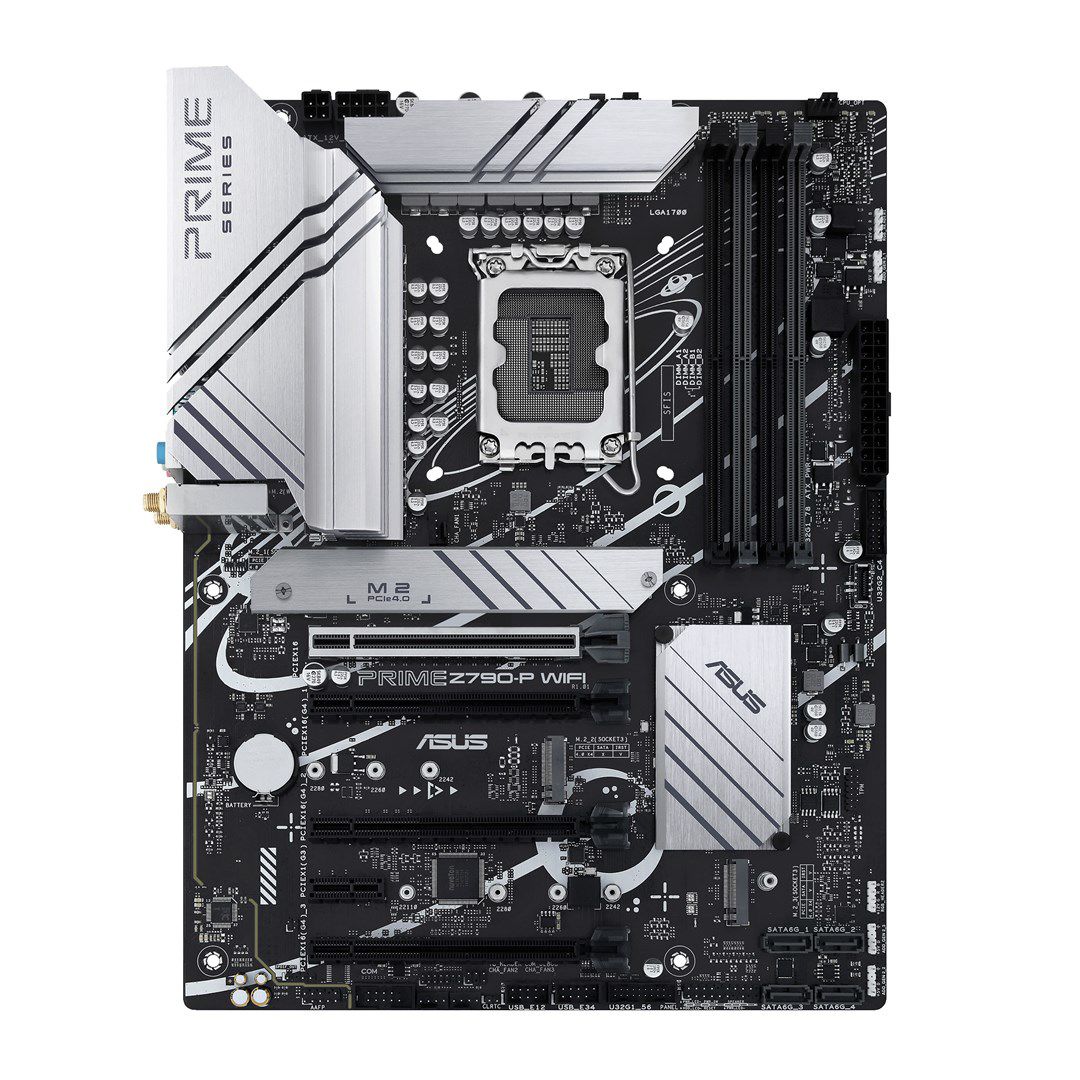

ASUS PRIME Z790-P WIFI Intel Z790 LGA 1700 ATX

Processor
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Motherboard form factor: ATX
Windows operating systems supported: Windows 11, Windows 10 x64
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard chipset: Intel Z790
Power source type: ATX

Memory
Supported memory clock speeds: 6000, 5000, 4800, 6800, 5200, 6600, 7000, 6400, 5600, 7200, 5800, 6200, 5400 MHz
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Unbuffered memory: Yes
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 7200 MHz

Weight & dimensions
Height: 40 mm
Width: 305 mm
Depth: 234 mm

Network
Wi-Fi standards: 802.11b, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Bluetooth: Yes
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.2
Ethernet LAN: Yes

Internal I/O
Number of COM connectors: 1
Front panel audio connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
TPM connector: Yes
Number of chassis fan connectors: 3
Number of SATA III connectors: 4
EPS power connector (8-pin): Yes
ATX Power connector (24-pin): Yes
Thunderbolt headers: 1
CPU fan connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
12V power connector: Yes
RGB LED pin header: Yes

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package width: 338 mm
Package weight: 1.68 kg
Package height: 68 mm
Package depth: 273 mm

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 1, 10, 0, 5
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DisplayPorts quantity: 1
HDMI ports quantity: 1
PS/2 ports quantity: 1
Line-in: Yes
Microphone in: Yes
Headphone outputs: 1
WiFi-AP antenna jack: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 3
PCI Express x16 (Gen 5.x) slots: 1

Other features
Weight: 1.03 kg
