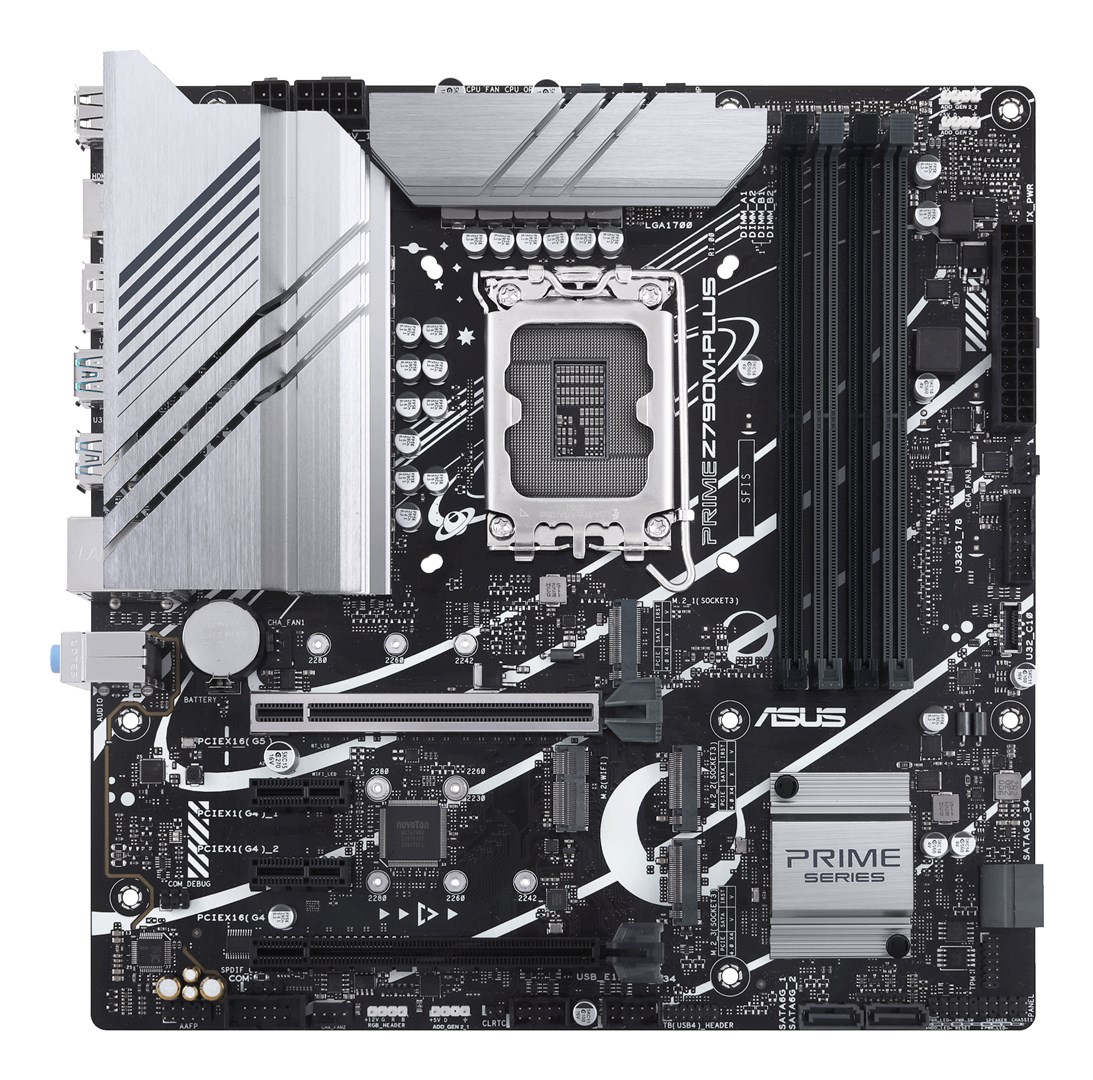

Asus | PRIME Z790M-PLUS | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel Z790 | mATX

Processor
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3
Processor manufacturer: Intel
Processor socket: LGA 1700

Graphics
On-board graphics card: No

Features
Product colour: Aluminium, Black
Windows operating systems supported: Windows 10, Windows 11
Audio output channels: 7.1 channels
Motherboard chipset: Intel Z790
Power source type: ATX
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Memory
Supported memory clock speeds: 6600, 5200, 4800, 5000, 5600, 7200 MHz, 6000, 6200, 7000, 6400, 6800, 5800, 5400
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Unbuffered memory: Yes
ECC сompatibility: Non-ECC

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 3
Thunderbolt headers: 1
12V power connector: Yes
Serial port headers: 1
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
RGB LED pin header: Yes
CPU fan connector: Yes
Power fan connector: Yes
Audio connector: Yes
Number of COM connectors: 1
Peripheral (Molex) power connectors (4-pin): 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes

BIOS
BIOS type: UEFI AMI
Bundled software: ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 3
RAID support: Yes
Supported storage drive types: HDD & SSD
RAID levels: 5, 10, 0, 1
Number of storage drives supported: 4
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA

Rear panel I/O ports
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
USB connector type: USB Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
COM ports quantity: 1
Line-in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI version: 2.0
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1

Safety warning
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
