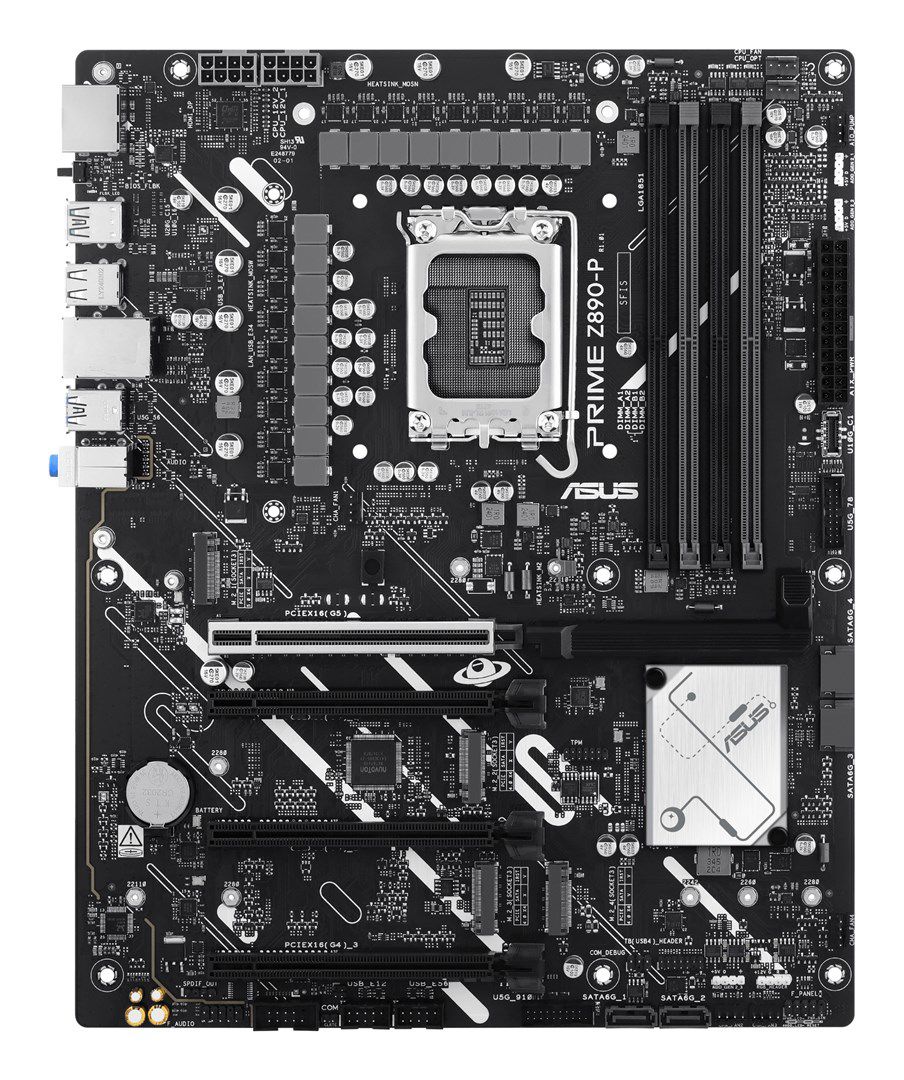

ASUS PRIME Z890-P Intel Z890 LGA 1851 (Socket V1) ATX motherboard

Processor
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11, Windows 10
Motherboard chipset: Intel Z890
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Product colour: Black
Motherboard chipset family: Intel
Cooling type: Passive
Power source type: ATX

Memory
Maximum internal memory: 192 GB
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Supported memory clock speed (max): 7600 MHz
Memory channels: Dual-channel
ECC сompatibility: Non-ECC

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
Number of COM connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
12V power connector: Yes
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
S/PDIF out connector: Yes
Number of SATA III connectors: 4
RGB LED pin header: Yes
Front panel audio connector: Yes
Thunderbolt headers: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
TPM connector: Yes
Number of chassis fan connectors: 4
EPS power connector (8-pin): Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package height: 68 mm
Package weight: 1.89 kg
Package width: 353 mm
Package depth: 273 mm

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
RAID levels: 5, 0, 1, 10
Number of storage drives supported: 8
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

Rear panel I/O ports
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Line-in: Yes
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 2.0 ports quantity: 4
HDMI version: 2.1
DisplayPorts quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Headphone outputs: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 3
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 5.x) slots: 1

Other features
Back-to-BIOS button: Yes
Quick installation guide: Yes
