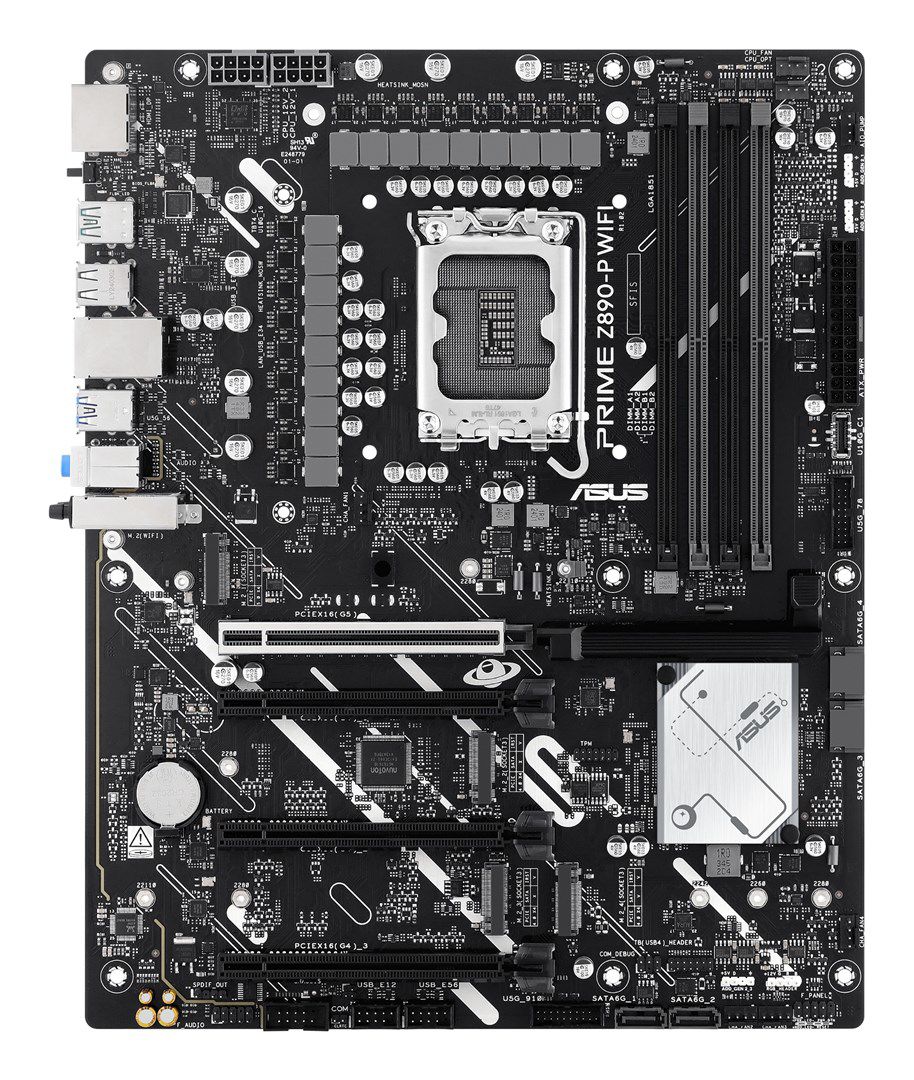

ASUS PRIME Z890-P WIFI Intel Z890 LGA 1851 (Socket V1) ATX

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11, Windows 10
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Cooling type: Passive
Product colour: Black
Motherboard chipset: Intel Z890
Power source type: ATX

Memory
Memory slots type: DIMM
Memory channels: Dual-channel
Maximum internal memory: 192 GB
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Unbuffered memory: Yes
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 7600 MHz

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11g, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4

Internal I/O
S/PDIF out connector: Yes
Number of COM connectors: 1
Thunderbolt headers: 1
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
EPS power connector (8-pin): Yes
TPM connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel audio connector: Yes
Number of chassis fan connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
12V power connector: Yes
RGB LED pin header: Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package depth: 273 mm
Package weight: 1.89 kg
Package width: 353 mm
Package height: 68 mm

Packaging content
Cables included: SATA

Storage controllers
RAID support: Yes
Number of HDDs supported: 4
RAID levels: 1, 0, 10, 5
Supported storage drive types: HDD & SSD
Number of storage drives supported: 8
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
HDMI version: 2.1
DisplayPort version: 1.4
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Line-in: Yes

Expansion slots
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 4.x) slots: 3
PCI Express x16 (Gen 5.x) slots: 1

Other features
Quick installation guide: Yes
Back-to-BIOS button: Yes

Safety warning
Warnings: In case of installation problems, contact a qualified service technician., Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics.
