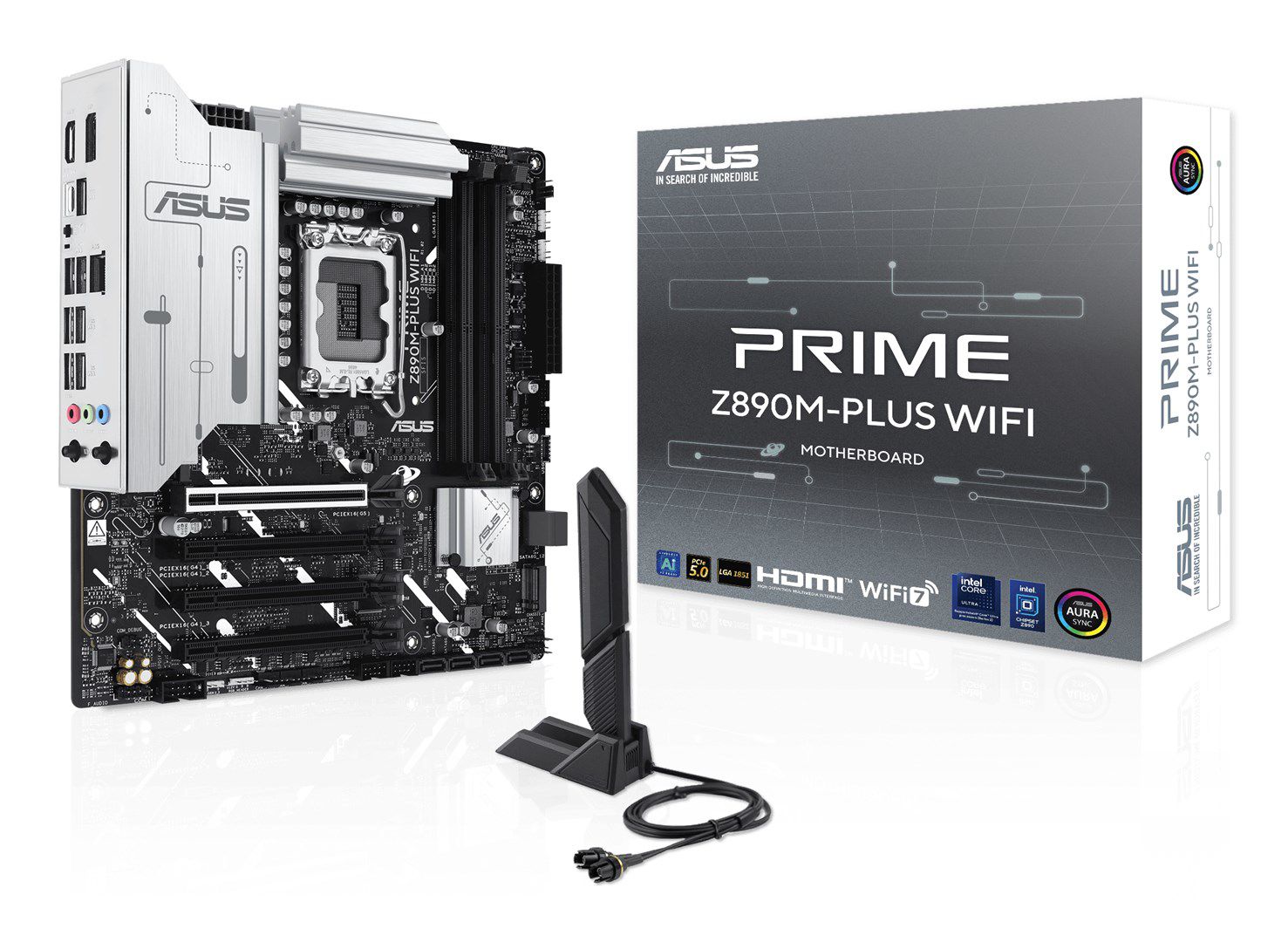

ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX

Processor
Supported processor sockets: LGA 1851
Processor socket: LGA 1851 (Socket V1)
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)

Graphics
Parallel processing technology support: Not supported
On-board graphics card: No

Features
Motherboard chipset: Intel Z890
Audio output channels: 7.1 channels
Component for: PC
Product colour: Black, Aluminium
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 11

Memory
Unbuffered memory: Yes
Maximum internal memory: 192 GB
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Bluetooth: Yes
Ethernet LAN: Yes
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
S/PDIF out connector: Yes
Number of chassis fan connectors: 4
Thunderbolt headers: 1
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
12V power connector: Yes
Number of SATA III connectors: 6
Number of COM connectors: 1
TPM connector: Yes
Chassis intrusion connector: Yes

BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data
Package weight: 1.64 kg
Package height: 67.5 mm
Package width: 275 mm
Package depth: 275 mm

Packaging content
Screws included: Yes
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 0, 1, 5, 10
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 9
Number of HDDs supported: 6

Rear panel I/O ports
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
WiFi-AP antenna jack: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
