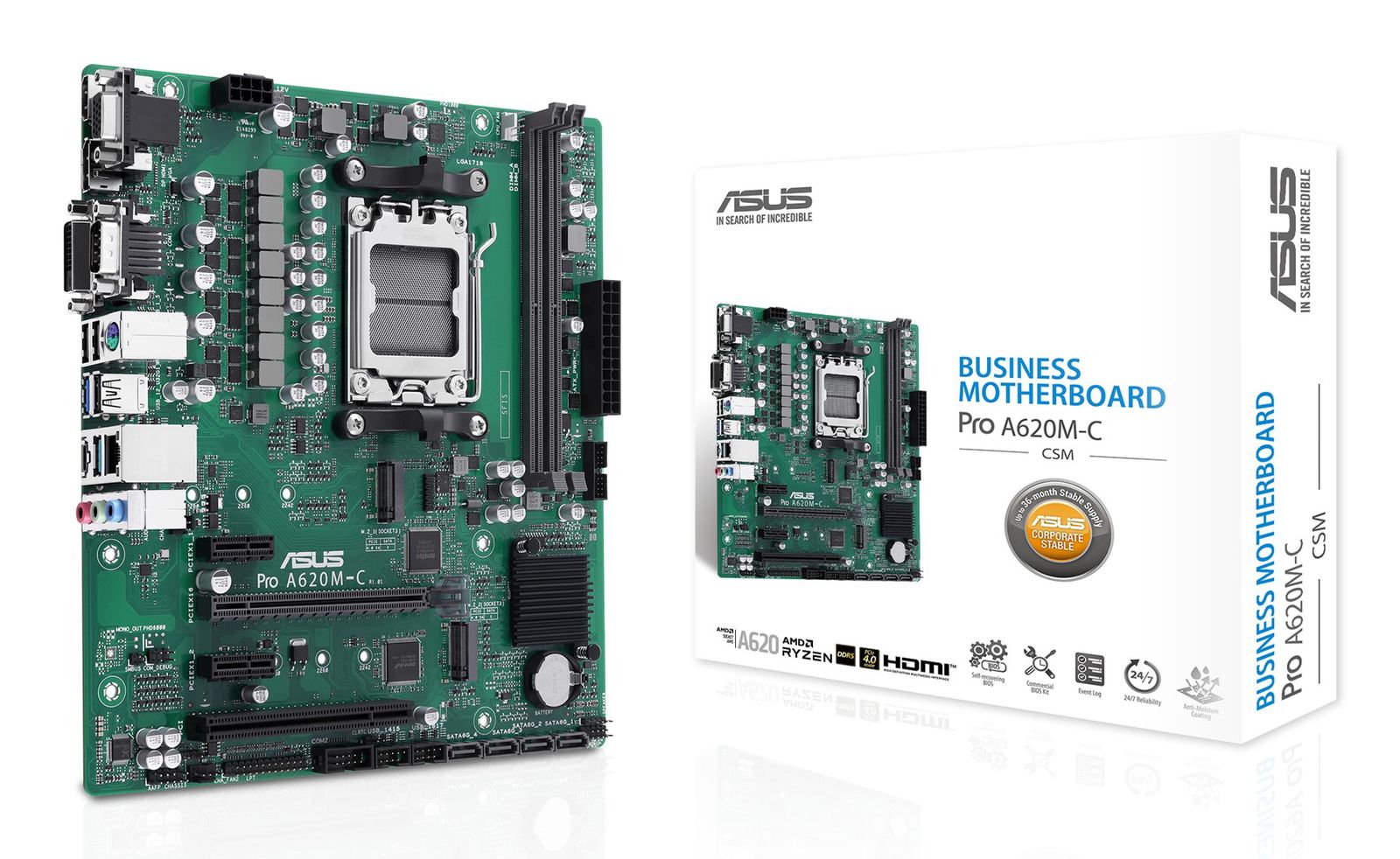

ASUS PRO A620M-C-CSM AMD A620 Socket AM5 micro ATX

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Power source type: ATX
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD A620
Motherboard chipset family: AMD

Memory
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 6400 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory clock speeds: 6000, 5200, 6400, 6200, 5600, 5000, 4800, 5800, 5400
Number of memory slots: 2
Maximum internal memory: 96 GB
Unbuffered memory: Yes

Weight & dimensions
Width: 244 mm
Depth: 224 mm

Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No

Internal I/O
Number of COM connectors: 1
Front panel audio connector: Yes
Chassis intrusion connector: Yes
Number of SATA III connectors: 4
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
12V power connector: Yes
ATX Power connector (24-pin): Yes
TPM connector: Yes
Number of chassis fan connectors: 2
CPU fan connector: Yes

BIOS
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI

Packaging data
Package weight: 950 g
Package width: 270 mm
Package height: 51.5 mm
Package depth: 263 mm

Packaging content
Cables included: SATA
User guide: Yes

Storage controllers
Number of HDDs supported: 4
RAID levels: 0, 1, 10
RAID support: Yes
Number of storage drives supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
DVI-D ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Headphone outputs: 1
COM ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 1
PS/2 ports quantity: 1
DisplayPort version: 1.4
Line-in: Yes
Microphone in: Yes

Expansion slots
PCI slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
