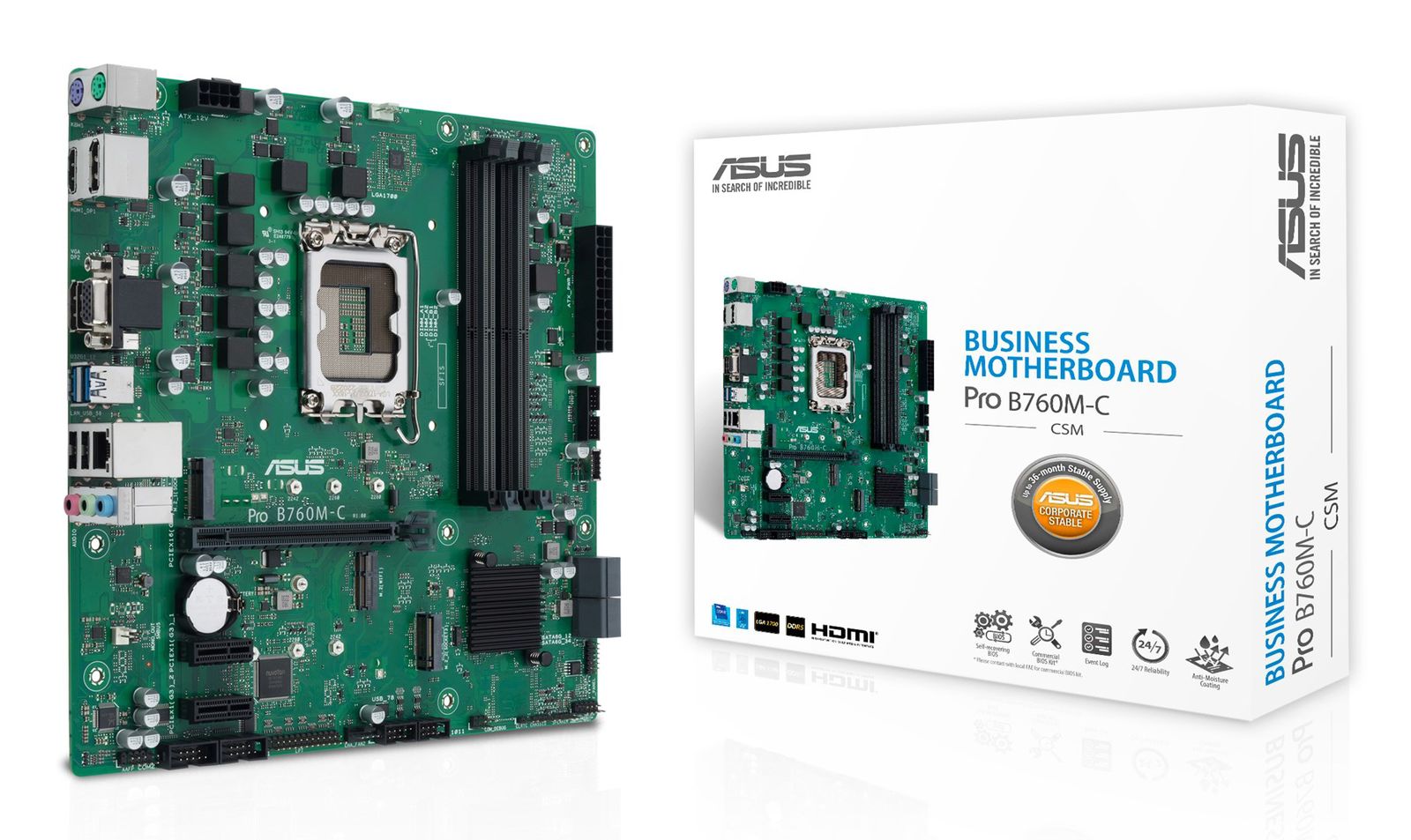

ASUS PRO B760M-C-CSM Intel B760 LGA 1700 micro ATX

Processor
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Graphics
Parallel processing technology support: Not supported

Features
Component for: PC
Windows operating systems supported: Windows 11, Windows 10
Cooling type: Passive
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Power source type: ATX
Motherboard chipset: Intel B760
Motherboard chipset family: Intel

Memory
Number of memory slots: 4
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 6200 MHz
Maximum internal memory: 128 GB
Supported memory clock speeds: 6000, 4800, 5600, 6200, 5800, 5400, 5200, 5000
Unbuffered memory: Yes
ECC сompatibility: Non-ECC

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
12V power connector: Yes
Number of COM connectors: 1
Chassis intrusion connector: Yes
TPM connector: Yes
CPU fan connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4

BIOS
BIOS memory size: 128 Mbit

Packaging content
User guide: Yes
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
RAID levels: 0, 1, 10, 5
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
Headphone outputs: 1
Line-in: Yes
PS/2 ports quantity: 2
Microphone in: Yes
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 2
DisplayPort version: 1.4
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2

Safety warning
Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
