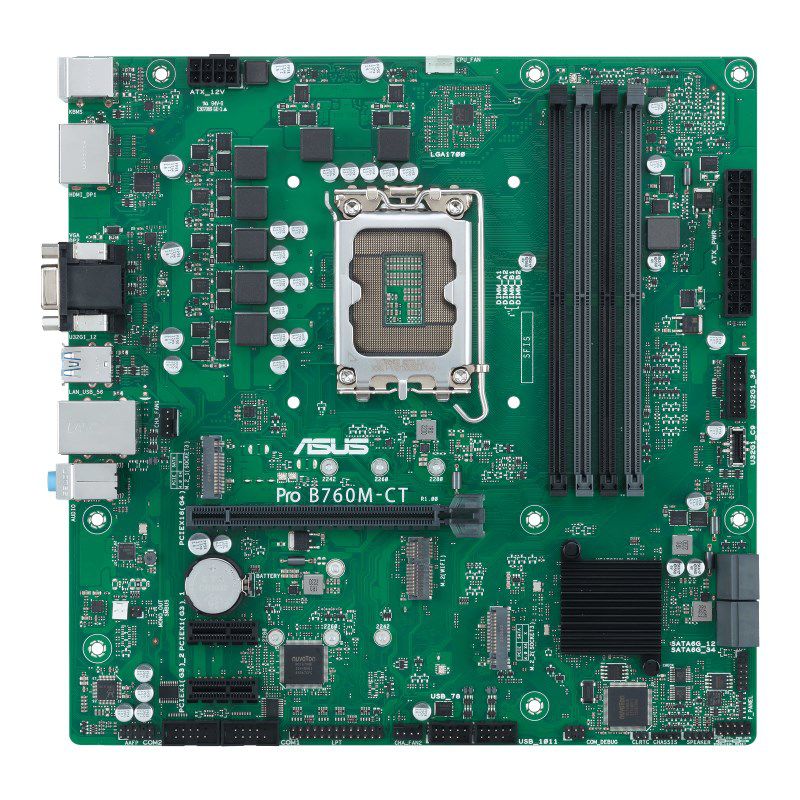

ASUS PRO B760M-CT-CSM Intel B760 LGA 1700 micro ATX

Processor
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3
Supported processor sockets: LGA 1700
Processor manufacturer: Intel

Graphics
Parallel processing technology support: Not supported

Features
Component for: PC
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Product colour: Green
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Windows operating systems supported: Windows 11, Windows 10 x64

Memory
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800 MHz, 5000, 5600, 6000, 6200, 5800, 5400
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory clock speed (max): 6200 MHz
Number of memory slots: 4

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes

Internal I/O
Number of chassis fan connectors: 2
Front panel audio connector: Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
Audio connector: Yes
Number of COM connectors: 3
Chassis intrusion connector: Yes

BIOS
BIOS memory size: 128 Mbit
Clear CMOS button: Yes

Packaging content
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
DisplayPorts quantity: 2
USB 2.0 ports quantity: 2
PS/2 ports quantity: 2
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI version: 2.1
Headphone outputs: 1
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
