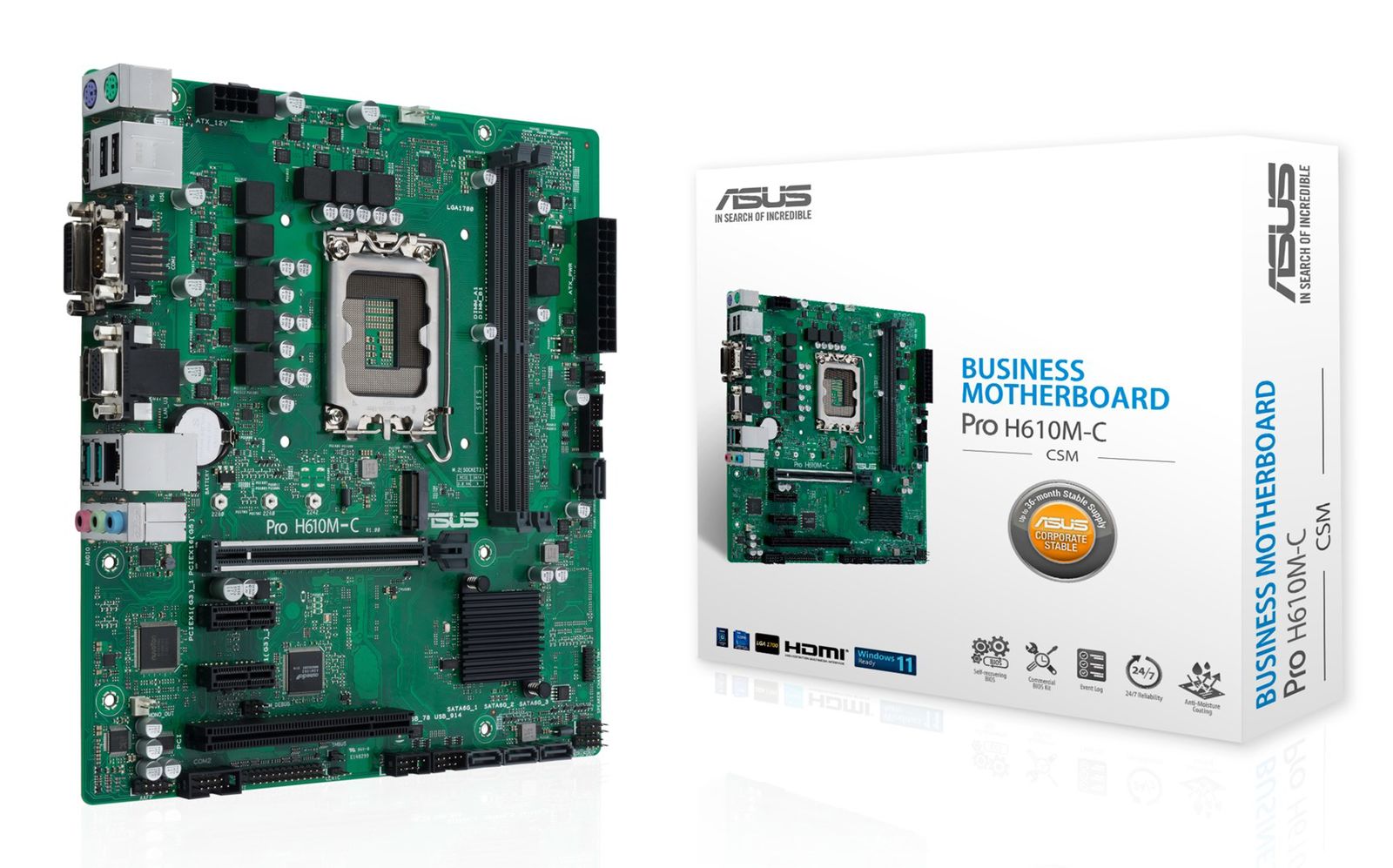

ASUS Pro H610M-C-CSM - bundkort - micr

Processor
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Pentium®
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Processor socket: LGA 1700

Graphics
Number of displays supported: 3
Parallel processing technology support: Not supported

Features
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Motherboard chipset: Intel H610
Motherboard chipset family: Intel

Memory
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Unbuffered memory: No
Maximum internal memory: 64 GB
Number of memory slots: 2
Supported memory clock speeds: 4800

Weight & dimensions
Depth: 244 mm
Height: 58 mm
Width: 244 mm

Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wake-on-LAN ready: Yes
Wi-Fi: No

Internal I/O
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Number of COM connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Chassis intrusion connector: Yes
TPM connector: Yes
CPU fan connector: Yes

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
HDMI version: 2.1
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
DVI-D ports quantity: 1
DisplayPort version: 1.4
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
HDMI ports quantity: 1

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x1 slots: 1
Number of M.2 (M) slots: 1

Other features
Weight: 382 g

Logistics data
Harmonized System (HS) code: 84733020

Safety warning
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
