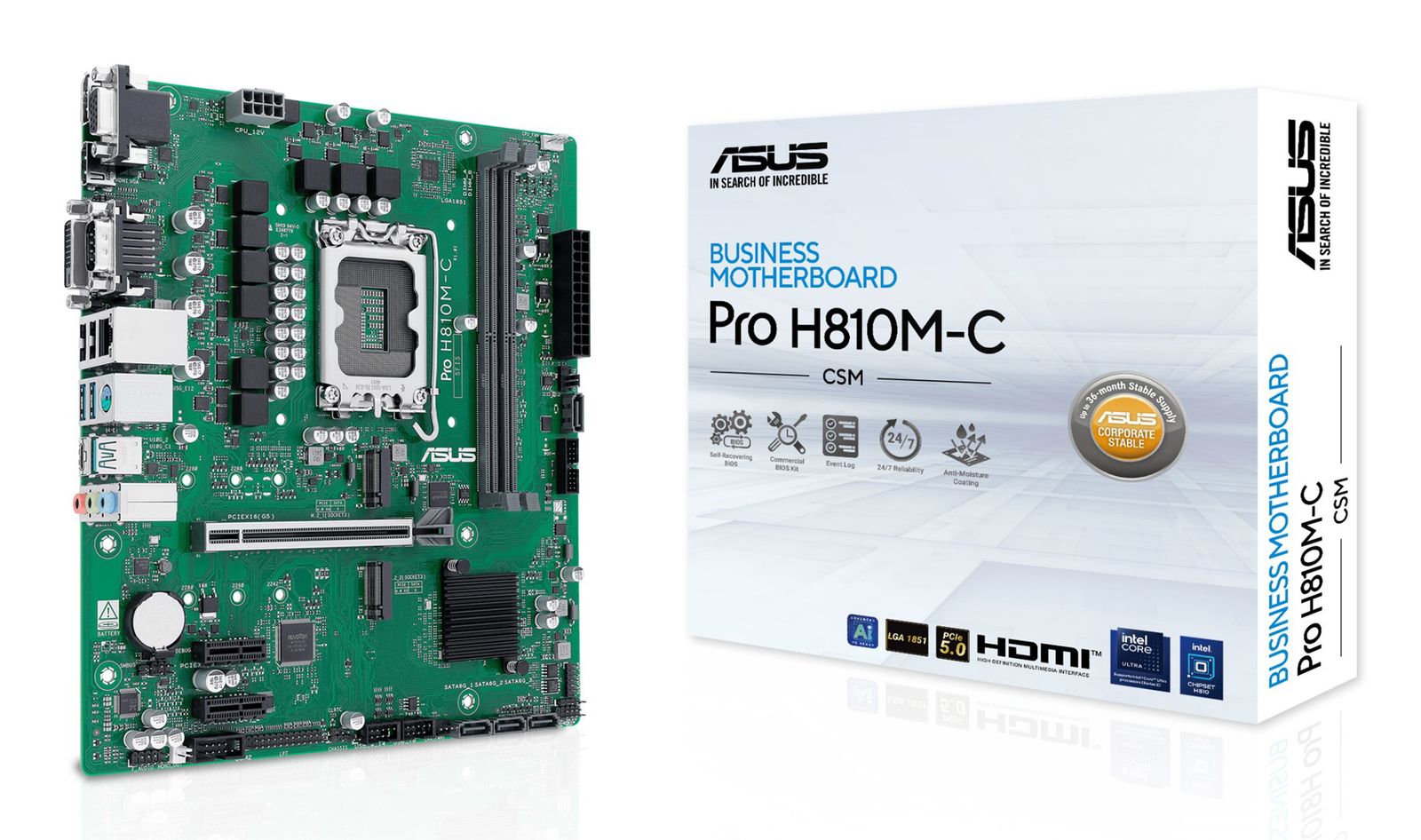

ASUS PRO H810M-C-CSM Intel H810 LGA 1851 (Socket V1) micro ATX

Processor
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset: Intel H810
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Component for: PC

Memory
Maximum internal memory: 128 GB
Unbuffered memory: Yes
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2

Weight & dimensions
Depth: 222 mm
Width: 244 mm

Network
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes

Internal I/O
Number of CPU fan connectors: 1
USB 2.0 connectors: 2
Audio connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
TPM connector: Yes
Front panel audio connector: Yes
12V power connector: Yes
Number of COM connectors: 1
Number of SATA III connectors: 4
Number of chassis fan connectors: 2
Chassis intrusion connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI

Packaging data
Package depth: 263 mm
Package weight: 1 kg
Package width: 270 mm
Package height: 51.5 mm

Packaging content
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
PS/2 ports quantity: 1
DVI-D ports quantity: 1
COM ports quantity: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 2.0 ports quantity: 2

Expansion slots
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
