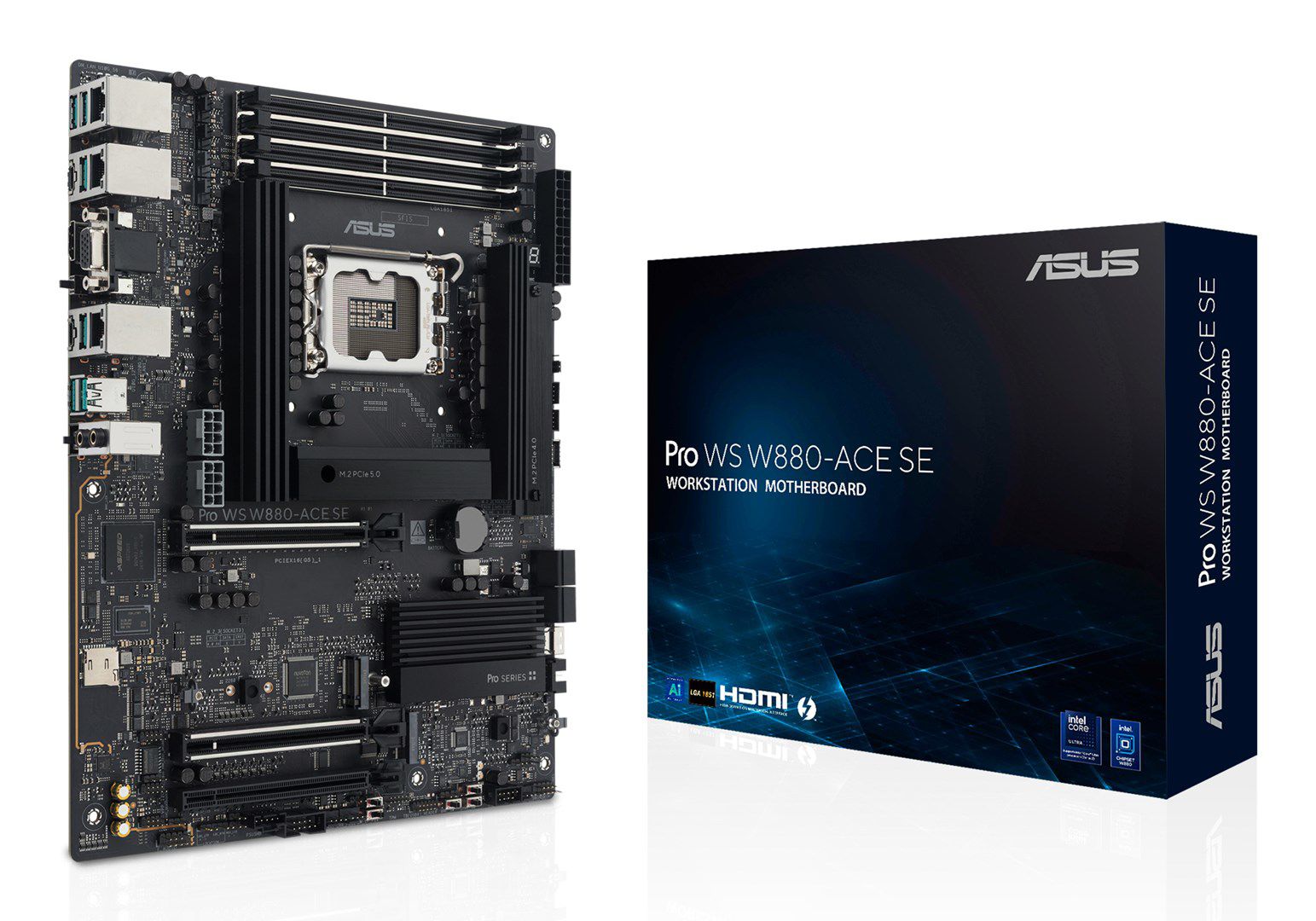

ASUS PRO WS W880-ACE SE Intel W880 LGA 1851 (Socket V1) ATX

Processor
Supported processor sockets: Intel LGA1851
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)

Graphics
Parallel processing technology support: Not supported
Maximum resolution: 3840 x 2160 pixels

Features
Motherboard chipset: Intel W880
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11
Audio output channels: 7.1 channels
Component for: Workstation
Audio chip: Realtek ALC1220P
Product colour: Grey
Motherboard form factor: ATX
Motherboard chipset family: Intel

Memory
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Memory channels: Dual-channel
Maximum internal memory per slot: 64 GB
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 9066 MHz

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of COM connectors: 1
USB 2.0 connectors: 2
Number of chassis fan connectors: 5
ATX Power connector (24-pin): Yes
Front panel connector: Yes
Number of SATA III connectors: 4
Front panel audio connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
EPS power connector (8-pin): Yes
Thunderbolt headers: 1
CPU fan connector: Yes
Chassis intrusion connector: Yes
Number of water pump connectors: 1
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 2
Number of temperature sensor headers: 1
12V power connector: Yes
Integrated SAS ports: 1

BIOS
BIOS memory size: 256 Mbit
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging content
Cables included: SATA

Storage controllers
RAID levels: 5, 10, 1, 0
Number of storage drives supported: 8
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4

Rear panel I/O ports
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 3
DisplayPort version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 1
VGA (D-Sub) ports quantity: 1
Thunderbolt ports quantity: 1
Line-in: Yes

Expansion slots
Number of M.2 (M) slots: 4
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
4th M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
4th M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
