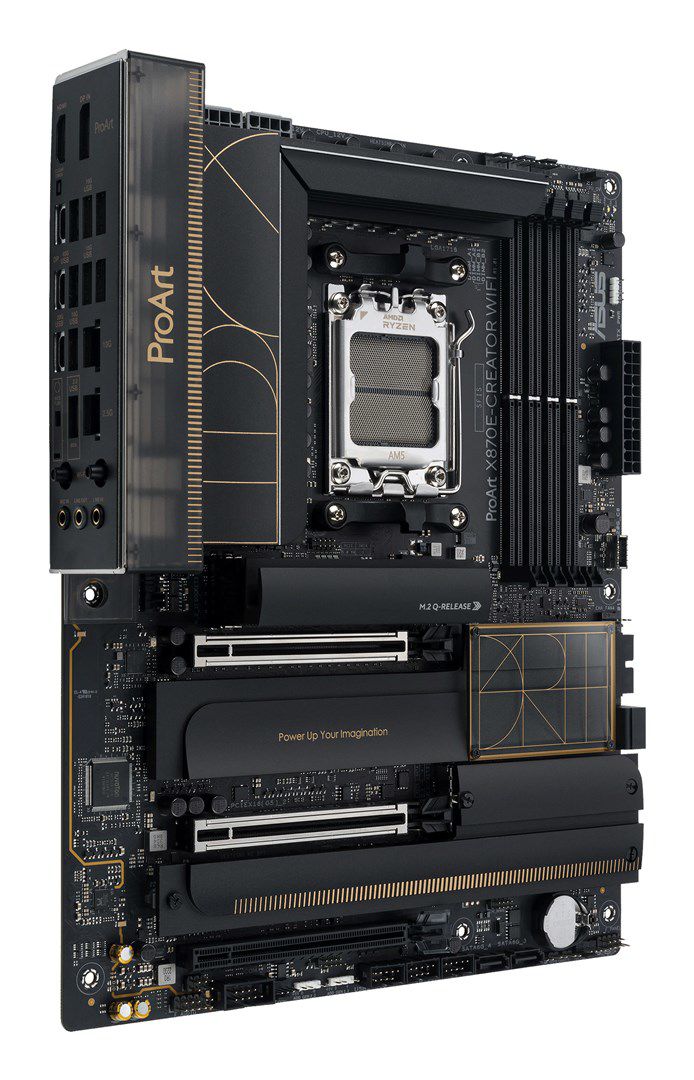

ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX

Processor
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11
Motherboard form factor: ATX
Motherboard chipset: AMD X870E
Audio output channels: 7.1 channels
Audio chip: Realtek S1220A
Motherboard chipset family: AMD

Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 192 GB
Unbuffered memory: Yes

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Wi-Fi standards: Wi-Fi 7 (802.11be)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Ethernet interface type: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
Bluetooth version: 5.4
Ethernet LAN: Yes
Bluetooth: Yes

Internal I/O
Number of chassis fan connectors: 5
12V power connector: Yes
Number of COM connectors: 1
Chassis intrusion connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 3
Front panel audio connector: Yes

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging content
Cables included: DisplayPort, SATA

Storage controllers
RAID levels: 10, 1, 0, 5
Number of HDDs supported: 4
Number of storage drives supported: 8
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7
HDMI ports quantity: 1
WiFi-AP antenna jack: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB4 Gen 2x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
DisplayPorts quantity: 1
USB 2.0 ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 5.x) slots: 2
