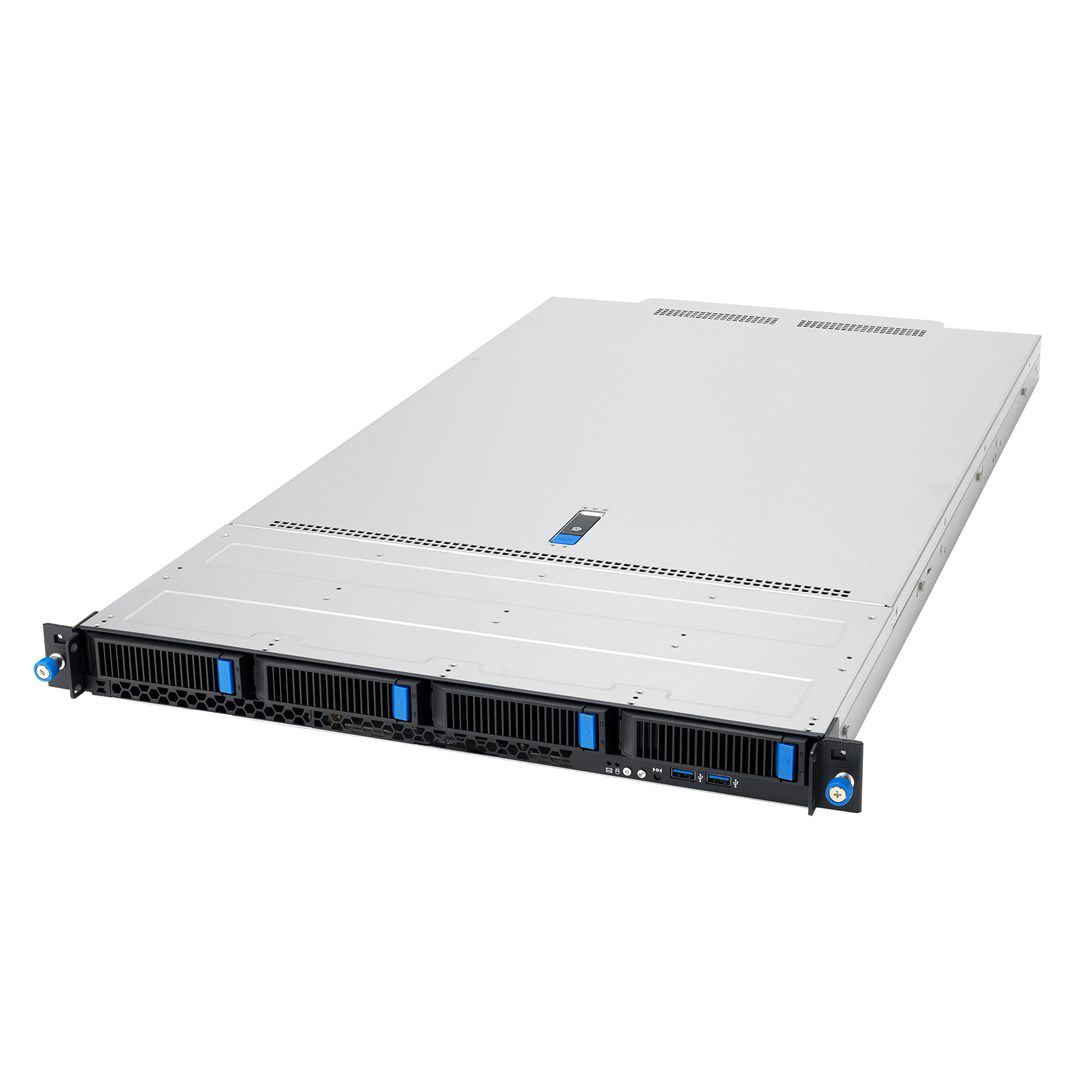

Asus Rack Platform (1U) AMD RS700A-E13-RS4U

Processor
Number of processors supported: 2
Processor socket: Socket SP5
Supported processors: AMD EPYC 9005

Graphics
On-board graphics card memory: 64 MB
On-board graphics card model: Aspeed AST2600

Features
Integrated BMC with IPMI: Yes
Trusted Platform Module (TPM) version: 2.0
Trusted Platform Module (TPM): Yes

Memory
Number of DIMM slots: 24
Supported DIMM module capacities: 96GB, 32GB, 128GB, 64GB
Maximum RDIMM memory: 3.07 TB
Supported memory types: DDR5-SDRAM
Supported RDIMM clock speeds: 6400, 5600 MHz
Certification: BSMI, CE, CB, RCM, FCC(Class A), ISED

Design
Chassis type: Rack (1U)
Number of fans: 8 fan(s)
LED indicators: Yes

Power
Power supply: 2000 W
80 PLUS certification: 80 PLUS Titanium
Number of main power supplies: 2
Input current: 12A / 10A
AC input frequency: 50/60 Hz
AC input voltage: 100 - 127/220 - 240 V

Operational conditions
Storage relative humidity (H-H): 20 - 90%
Storage temperature (T-T): -40 - 60 °C
Operating temperature (T-T): 10 - 35 °C

Weight & dimensions
Width: 821,7 mm
Depth: 483 mm
Height: 43.2 mm
Weight: 13.8 kg

Network
Ethernet LAN: Yes

Packaging data
Package weight: 16.7 kg

Expansion slots
PCI Express x16 (Gen 5.x) slots: 2
Number of OCP3.0 ports: 2
PCI Express slots version: 5.0

Storage
Storage drive sizes supported: 2.5, 3.5"
Hot-swap HDD bays: Yes
Number of storage drives supported: 4
Number of 3.5" bays: 4
Number of 2.5"/3.5" bays : 4
Supported storage drive types: HDD & SSD

Ports & interfaces
Mini DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
