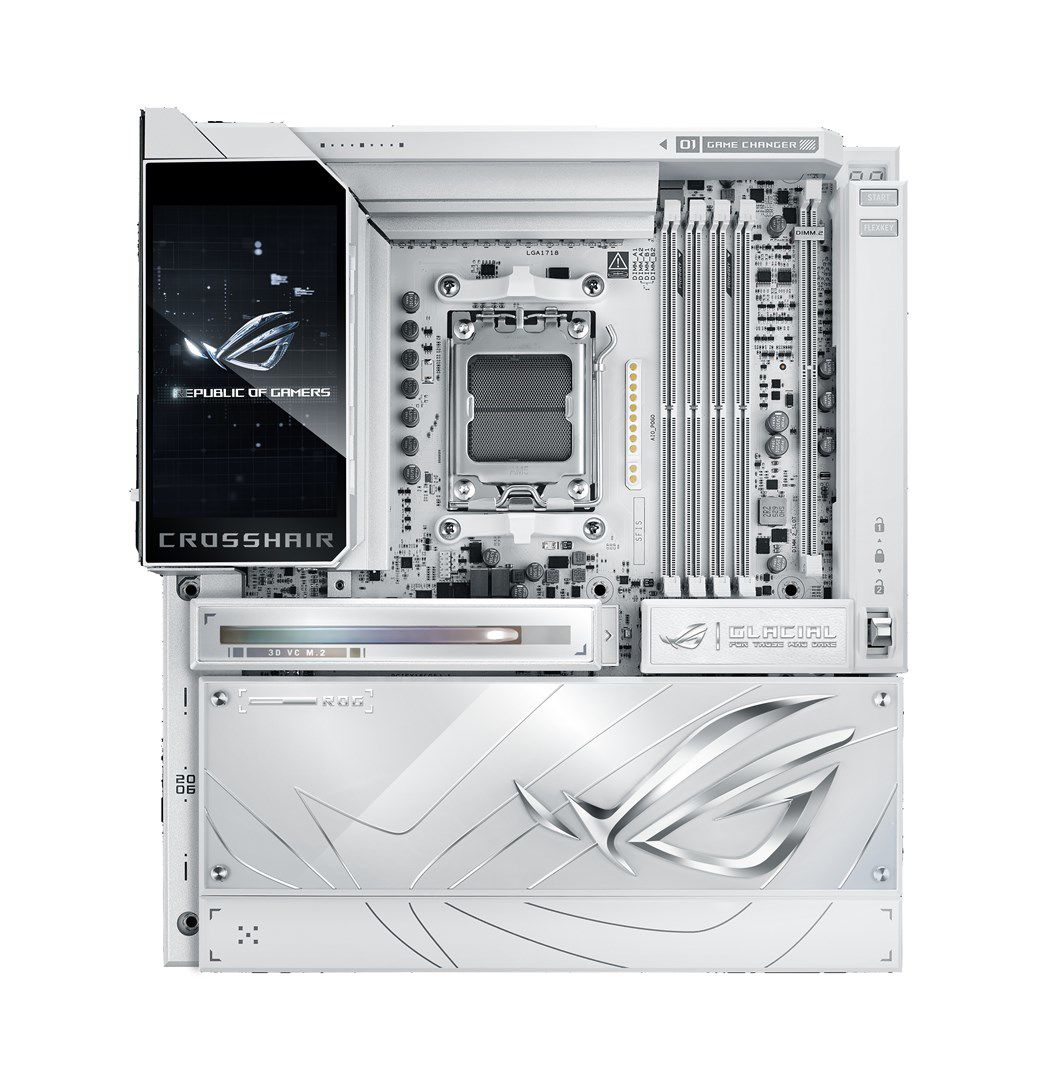

ASUS ROG CROSSHAIR X870E GLACIAL AMD X870E Socket AM5 Extended ATX

Processor
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard form factor: Extended ATX
Product colour: White
Motherboard chipset: AMD X870E
Motherboard chipset family: AMD
Audio chip: Realtek ALC4082
Windows operating systems supported: Windows 11
Component for: PC

Memory
Number of memory slots: 4
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Weight & dimensions
Width: 305 mm
Depth: 277 mm

Network
Bluetooth version: 5.4
Ethernet interface type: 10 Gigabit Ethernet
Ethernet LAN: Yes
WLAN controller model: MediaTek MT7927
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O
USB 3.2 Gen 2x2 connectors: 2
RGB LED pin header: Yes
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 3
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of temperature sensor headers: 1
Front panel connector: Yes
CPU fan connector: Yes

BIOS
BIOS type: UEFI AMI
BIOS memory size: 1024 Mbit

Packaging data
Package weight: 6.66 kg
Package width: 380 mm
Package height: 125 mm
Package depth: 320 mm

Packaging content
Antenna included: Yes
Cables included: SATA

Storage controllers
Number of storage drives supported: 11
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 0, 1, 10, 5

Rear panel I/O ports
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 4
USB4 Gen 3x2 ports quantity: 2
WiFi-AP antenna jack: 1
S/PDIF out port: Yes
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 8

Expansion slots
2nd M.2 highest PCI Express generation: 5.0
1st M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 4.x) slots: 2
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 2
1st M.2 largest key size: 22110
Number of M.2 (M) slots: 7
