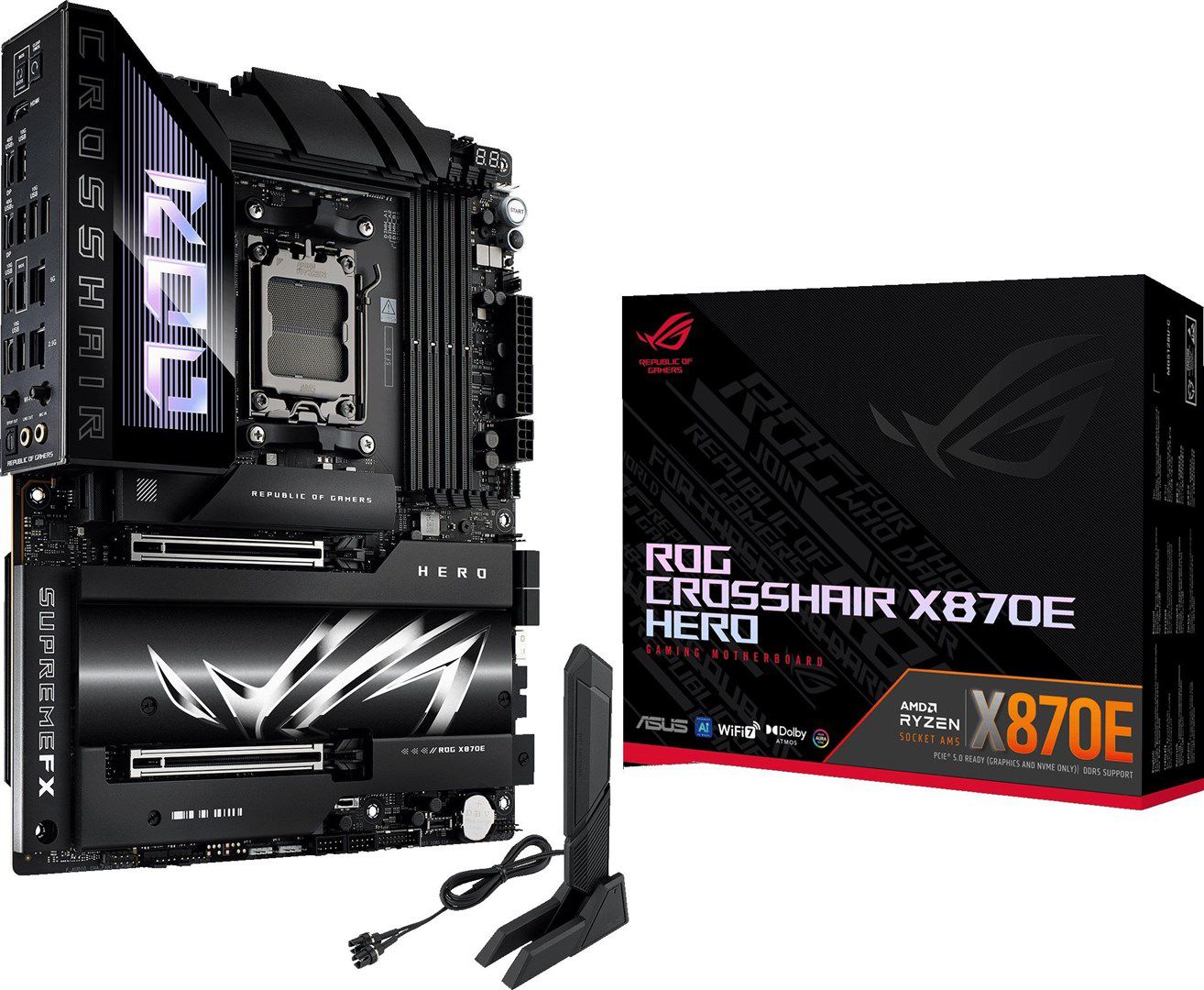

ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX

Processor
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Motherboard chipset family: AMD
Audio chip: Realtek ALC4082
Motherboard chipset: AMD X870E
Windows operating systems supported: Windows 11

Memory
Maximum internal memory: 192 GB
ECC сompatibility: ECC & Non-ECC
Unbuffered memory: Yes
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM

Weight & dimensions
Depth: 244 mm
Width: 305 mm
Height: 50 mm

Network
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Wi-Fi: Yes
Bluetooth version: 5.4

Internal I/O
Front panel audio connector: Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 3.2 Gen 2x2 connectors: 2
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
EPS power connector (8-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 4
12V power connector: Yes

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package weight: 4.26 kg
Package height: 108 mm
Package width: 370 mm
Package depth: 312 mm

Packaging content
Cables included: SATA
Drivers included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III, SlimSAS
RAID support: Yes
RAID levels: 5, 10, 0, 1
Number of HDDs supported: 5
Number of storage drives supported: 10

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 2
S/PDIF out port: Yes
USB4 Gen 2x2 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
WiFi-AP antenna jack: 1
HDMI ports quantity: 1
Headphone outputs: 1
Microphone in: Yes

Expansion slots
PCI Express x16 (Gen 4.x) slots: 4
Number of M.2 (M) slots: 5
PCI Express x16 (Gen 5.x) slots: 2

Other features
Weight: 2.55 kg

Safety warning
Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
