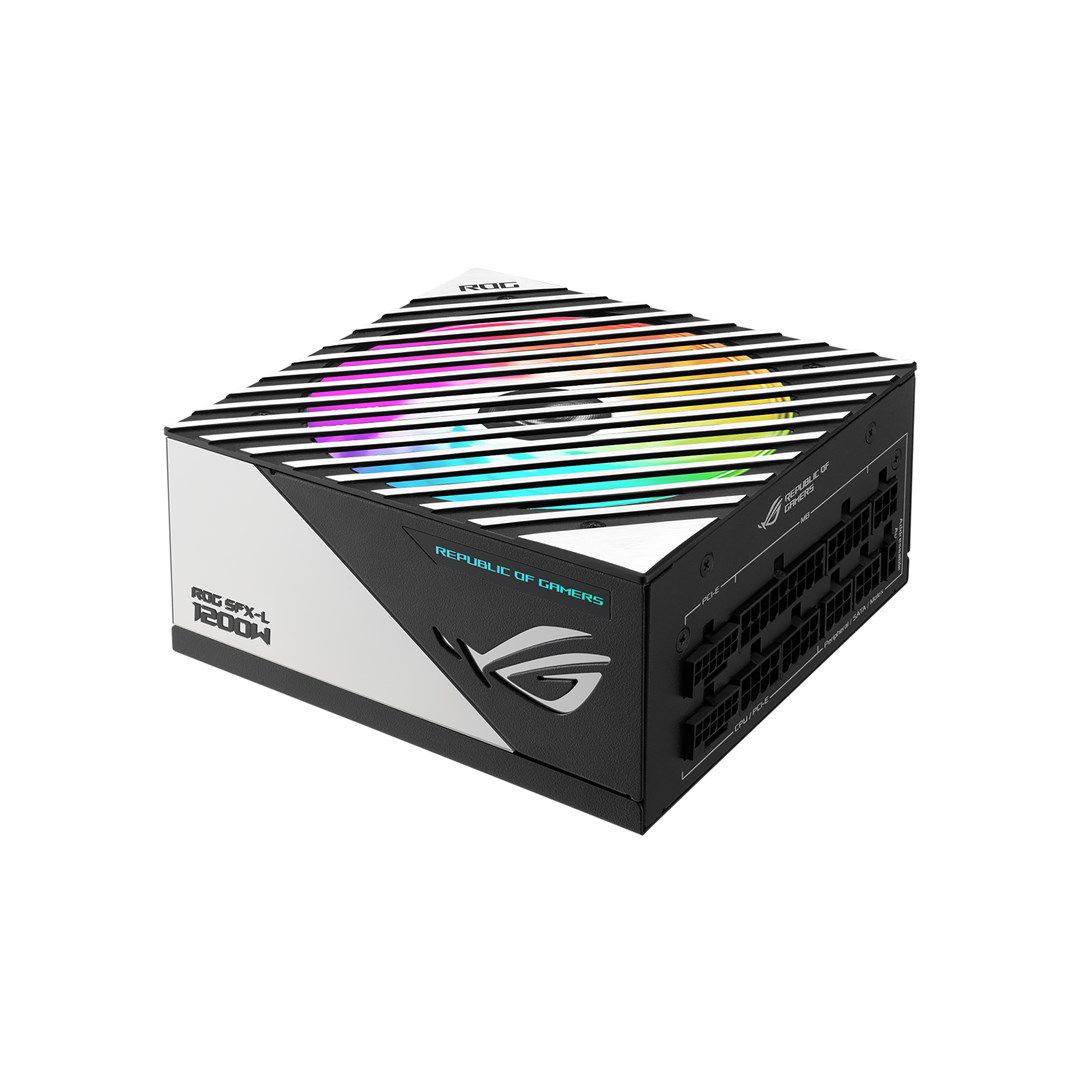

ASUS ROG -LOKI-1200T-SFX-L-GAMING power supply unit 1200 W 20+4 pin ATX Black, Silver

Technical details
Sustainability compliance: Yes

Design
Cooling type: Active
Fan diameter: 12 cm
On/off switch: Yes
Illumination: Yes
Number of fans: 1 fan(s)
Product colour: Black, Silver

Power
Combined power (-12V): 9.6 W
Total power: 1200 W
Max output current (+5Vsb): 3 A
Peak power: 1200 W
Combined power (+5Vsb): 15 W
AC input voltage: 100 - 240 V
Power protection features: Under voltage, Overcharge, Short circuit, Over voltage, Overheating, Over power
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Max output current (-12V): 0.8 A
Combined power (+3.3V): 110 W
Power Factor Correction (PFC) type: Active
Combined power (+12V): 1200 W
Combined power (+5V): 110 W
Max output current (+12V): 100 A

Weight & dimensions
Height: 63.5 mm
Weight: 2.15 kg
Width: 125 mm
Depth: 125 mm

Performance
Purpose: PC
80 PLUS certification: 80 PLUS Platinum
ATX version: 3.1
Bearing technology: Ball bearing
Power supply unit (PSU) form factor: SFX-L

Packaging data
Package height: 100 mm
Package width: 285 mm
Package weight: 2.84 kg
Package type: Box
Manual: Yes
Package depth: 190 mm

Packaging content
Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates
Compliance certificates: RoHS

Ports & interfaces
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 300, 100
PCI Express power connectors (8-pin): 4
SATA power cable length: 100, 200, 300
Motherboard power cable length: 45 cm
Peripheral (Molex) power connectors (4-pin): 4
Number of SATA power connectors: 6
Cabling type: Fully-Modular
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
CPU power cable length: 55 cm
PCI Express power connectors (16-pin): 2

Logistics data
Warranty period: 10 year(s)
