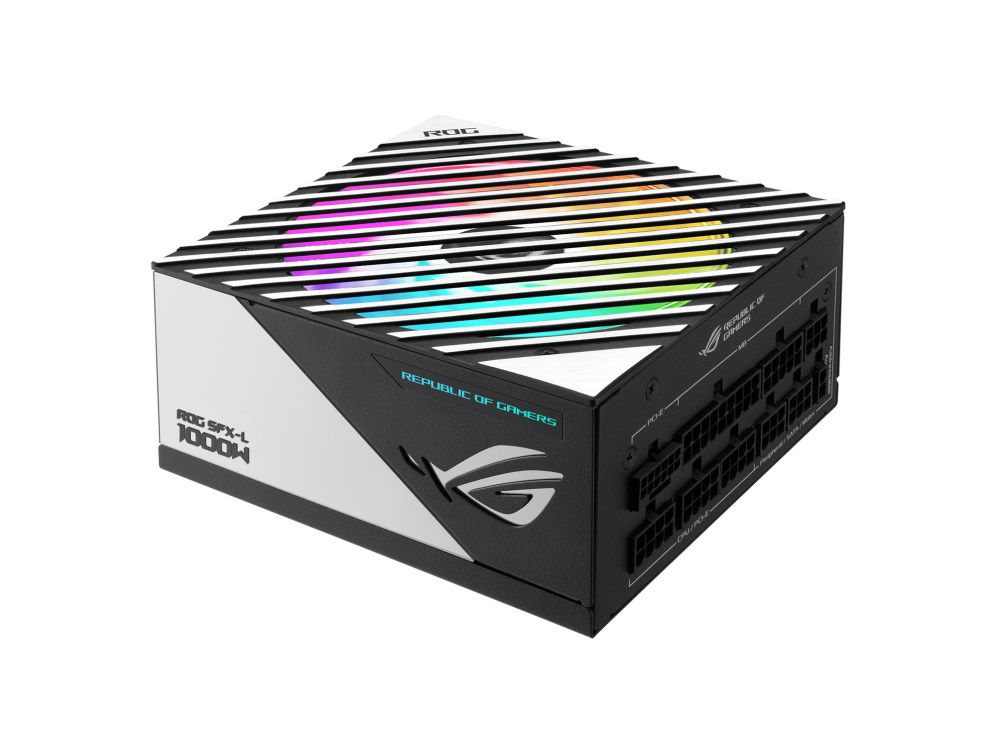

ASUS ROG Loki SFX-L 1000W Platinum power supply unit 24-pin ATX Black, Silver

Technical details
Sustainability certificates: RoHS
Compliance certificates: RoHS

Design
Fan diameter: 12 cm
Product colour: Black, Silver
Illumination: Yes
Number of fans: 1 fan(s)

Power
Combined power (+5Vsb): 12.5 W
AC input voltage: 100 - 240 V
Combined power (+3.3V): 110 W
Max output current (+12V): 83.3 A
Combined power (+12V): 1000 W
Max output current (+5V): 20 A
Total power: 1000 W
Max output current (+5Vsb): 2.5 A
Combined power (-12V): 9.6 W
Max output current (-12V): 0.8 A
Max output current (+3.3V): 20 A
Combined power (+5V): 110 W

Weight & dimensions
Height: 63.5 mm
Depth: 125 mm
Width: 125 mm
Weight: 1.83 kg
Certification: OPP/OVP/UVP/SCP/OCP/OTP

Performance
Supported motherboard form factors: ATX
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Silent mode: Yes
Power supply unit (PSU) form factor: SFX

Packaging data
Package width: 285 mm
Package weight: 2.52 kg
Package depth: 190 mm
Package height: 100 mm
Package type: Box

Ports & interfaces
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 4
Cabling type: Fully-Modular
PCI Express power connectors (8-pin): 3
PCI Express power connectors (16-pin): 1
Motherboard power connector: 24-pin ATX
CPU power connector (4+4 pin): Yes
