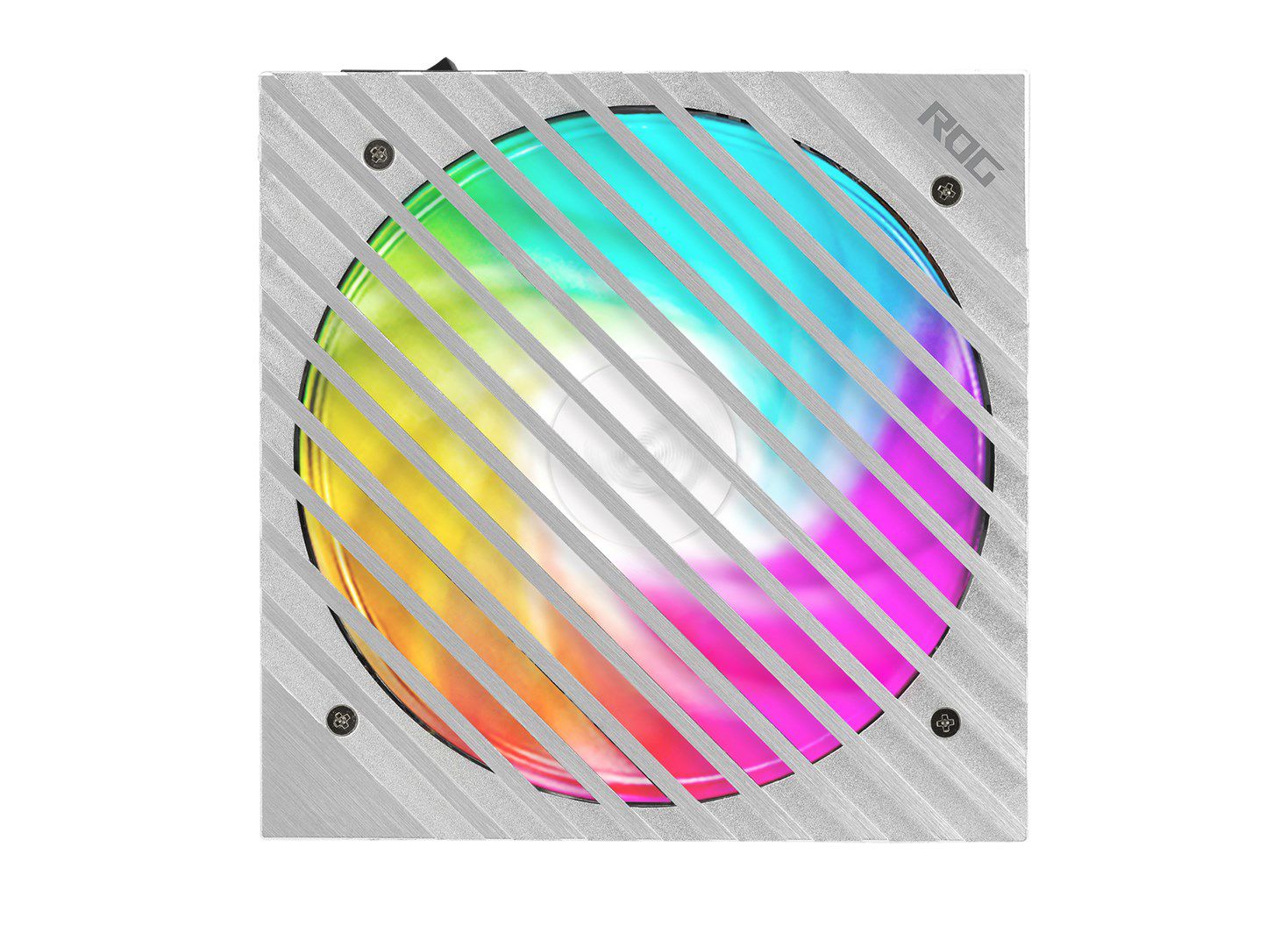

ASUS ROG Loki SFX-L 850W Platinum White power supply unit 24-pin ATX

Technical details
Sustainability compliance: Yes
Compliance certificates: RoHS

Design
Cooling type: Active
Fan diameter: 12 cm
Product colour: White
On/off switch: Yes
Illumination: Yes
Number of fans: 1 fan(s)

Power
Power protection features: Short circuit, Over voltage, Overcharge, Overheating, Over power, Under voltage
Combined power (+5Vsb): 12.5 W
Combined power (+12V): 850 W
Total power: 850 W
Combined power (-12V): 9.6 W
Combined power (+3.3V): 110 W
AC input voltage: 100 - 240 V
Max output current (+12V): 70.8 A
Combined power (+5V): 110 W
Max output current (+5Vsb): 2.5 A
Max output current (-12V): 0.8 A
Max output current (+5V): 20 A
Max output current (+3.3V): 20 A

Weight & dimensions
Weight: 1.81 kg
Height: 63.5 mm
Width: 125 mm
Depth: 125 mm

Performance
80 PLUS certification: 80 PLUS Platinum
Power supply unit (PSU) form factor: SFX-L
Bearing technology: Ball bearing
Purpose: PC
Supported motherboard form factors: ATX

Packaging data
Package width: 285 mm
Package type: Box
Package weight: 2.5 kg
Package depth: 190 mm
Package height: 100 mm

Ports & interfaces
Number of SATA power connectors: 6
Motherboard power cable length: 45 cm
Cabling type: Fully-Modular
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 600
SATA power cable length: 600
Motherboard power connector: 24-pin ATX
CPU power cable length: 55 cm
PCI Express power cable length: 45 cm
PCI Express power connectors (8-pin): 3
CPU power connector (4+4 pin): Yes
PCI Express power connectors (16-pin): 1
