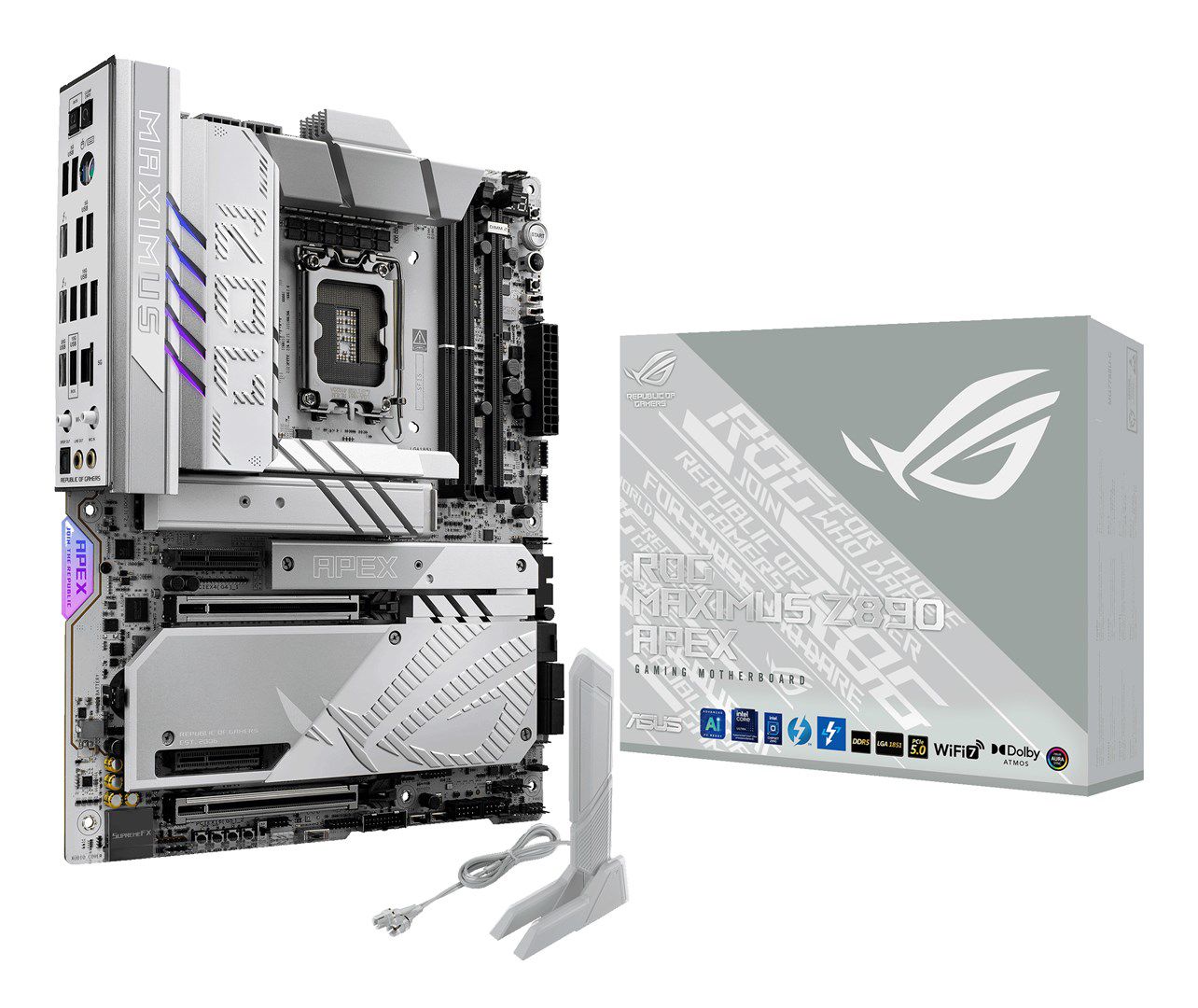

ASUS ROG MAXIMUS Z890 APEX Intel Z890 LGA 1851 (Socket V1) ATX

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Supported processor sockets: LGA 1851
Processor socket: LGA 1851 (Socket V1)

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Audio chip: Realtek ALC4080
Windows operating systems supported: Windows 11
Component for: PC
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Product colour: Aluminium
Motherboard chipset: Intel Z890

Memory
Number of memory slots: 2
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
ECC сompatibility: Non-ECC
Maximum internal memory: 96 GB
Unbuffered memory: Yes

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Bluetooth version: 5.4
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet
Wi-Fi: Yes
Bluetooth: Yes

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
12V power connector: Yes
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 2
USB 2.0 connectors: 2
Thunderbolt headers: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
CPU fan connector: Yes
USB 3.2 Gen 2x2 connectors: 1

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes
BIOS memory size: 512 Mbit

Packaging data
Package height: 108 mm
Package depth: 312 mm
Package weight: 3.7 kg
Package width: 370 mm

Packaging content
Drivers included: Yes
Screws included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 0, 1, 10, 5
Number of storage drives supported: 10
Number of HDDs supported: 4

Rear panel I/O ports
Thunderbolt ports quantity: 2
WiFi-AP antenna jack: 1
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
S/PDIF out port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Expansion slots
Number of M.2 (M) slots: 6
PCI Express x4 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 2
