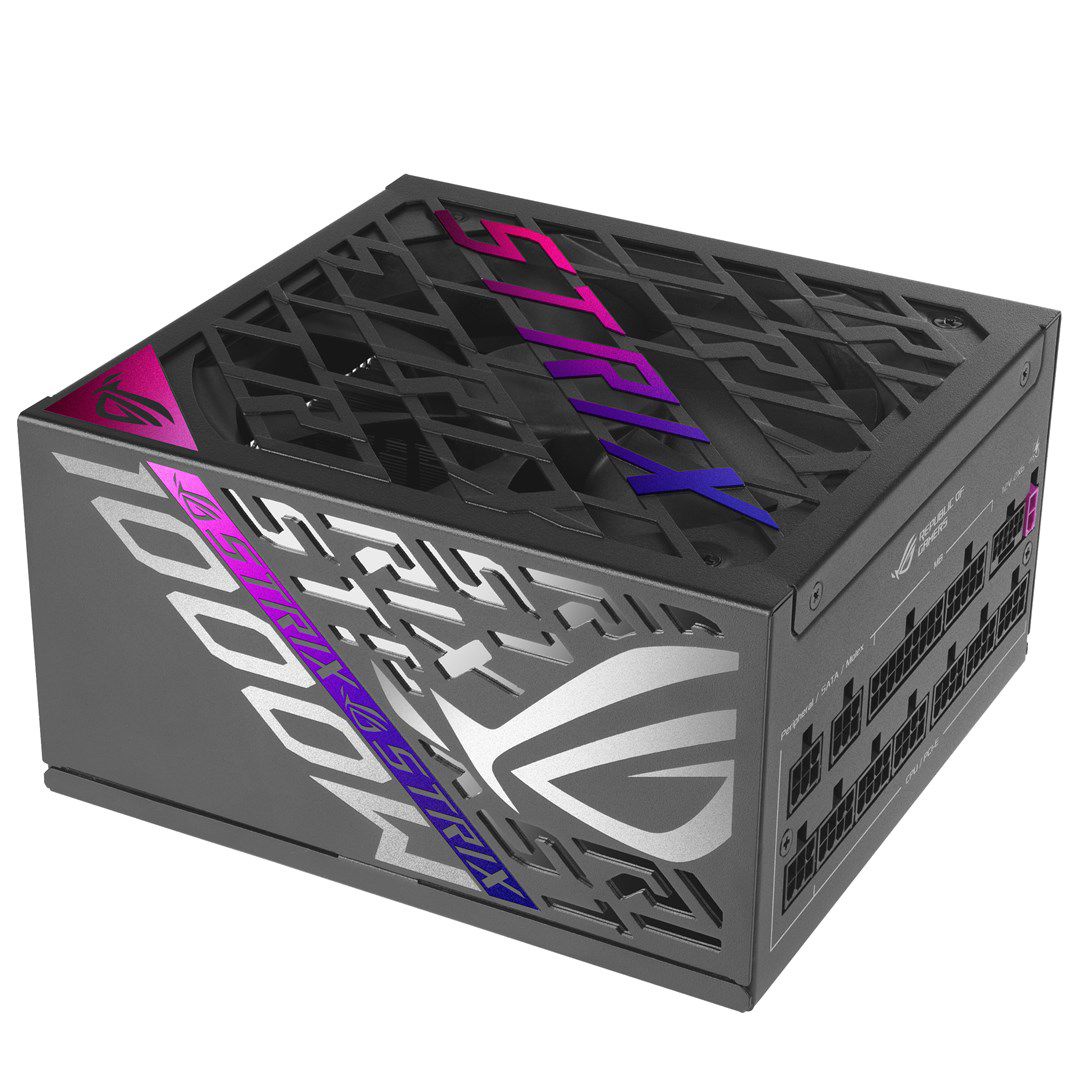

ASUS ROG STRIX-1000P-GAMING power supply unit 1000 W 20+4 pin ATX ATX Black, Silver

Design
Product colour: Silver, Black
Cooling type: Semi-passive
Illumination: Yes
On/off switch: Yes
Number of fans: 1 fan(s)

Power
AC input voltage: 100 - 240 V
Combined power (-12V): 3.6 W
Total power: 1000 W
Power protection features: Short circuit, Over voltage, Over power, Under voltage, Over current, Overheating
Combined power (+5V): 130 W
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Combined power (+12V): 1000 W
Max output current (+5V): 25 A
Combined power (+3.3V): 130 W
Power Factor Correction (PFC) type: Active
Max output current (+12V): 83.3 A
Max output current (+3.3V): 25 A
Max output current (-12V): 0.3 A

Weight & dimensions
Weight: 2.91 kg
Height: 86 mm
Width: 160 mm
Depth: 150 mm

Performance
Noise level: 20 dB
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Mean time between failures (MTBF): 120000 h
Bearing technology: Ball bearing
Power supply unit (PSU) form factor: ATX

Packaging data
Package weight: 3.62 kg
Package depth: 200 mm
Package type: Box
Package height: 108 mm
Package width: 320 mm

Packaging content
Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces
Peripheral (Molex) power connectors (4-pin): 3
Cabling type: Fully-Modular
SATA power cable length: 120, 400 mm
Motherboard power cable length: 61 cm
Peripheral (Molex) power cable length: 400 mm, 150
PCI Express power connectors (16-pin): 1
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
ATX power connector (20+4 pin): Yes
PCI Express power connectors (6+2 pin): 4
CPU power cable length: 100 cm
CPU power connector (4+4 pin): Yes
PCI Express power cable length: 75 cm
