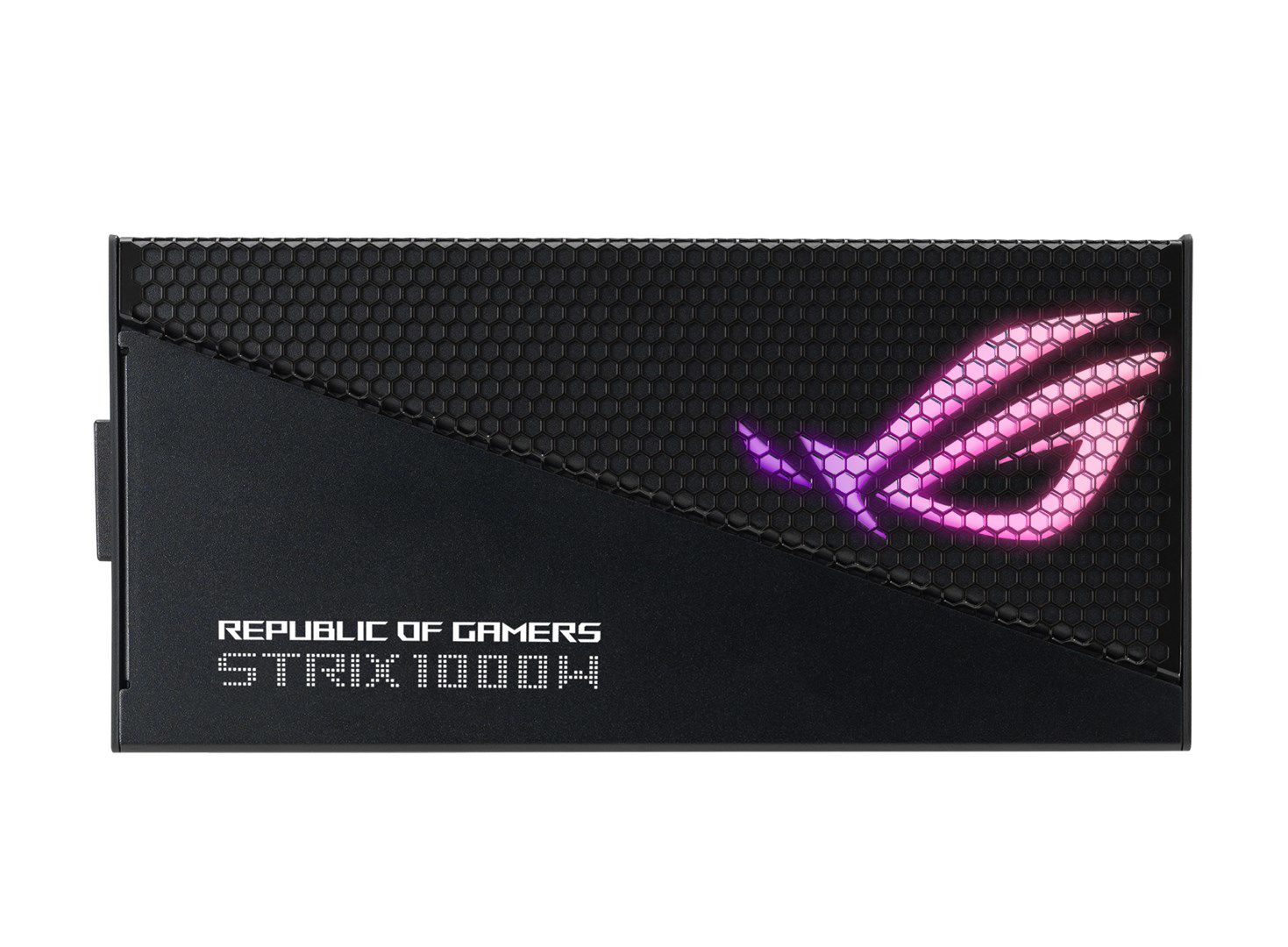

ASUS ROG Strix 1000W Gold Aura Edition power supply unit 20+4 pin ATX ATX Black

Technical details
Sustainability compliance: Yes

Design
Number of fans: 1 fan(s)
On/off switch: Yes
Cooling type: Active
Illumination: Yes
Product colour: Black
Fan diameter: 13.5 cm

Power
Power protection features: Overcharge, Short circuit, Over voltage, Over power, Under voltage, Overheating
Max output current (+5Vsb): 3 A
Max output current (+3.3V): 22 A
Max output current (+12V): 83.3 A
Combined power (+12V): 996.6 W
Combined power (+5Vsb): 15 W
Combined power (+3.3V): 120 W
Max output current (+5V): 22 A
Combined power (-12V): 3.6 W
AC input voltage: 100 - 240 V
Total power: 1000 W
Max output current (-12V): 0.3 A

Weight & dimensions
Width: 180 mm
Height: 86 mm
Depth: 150 mm
Weight: 3.03 kg

Performance
Bearing technology: Ball bearing
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold
Purpose: PC
ATX version: 3.0
Silent mode: Yes

Packaging data
Package weight: 3.53 kg
Package type: Box

Packaging content
Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates
Compliance certificates: RoHS

Ports & interfaces
CPU power cable length: 65 cm
Peripheral (Molex) power connectors (4-pin): 4
Motherboard power connector: 20+4 pin ATX
SATA power cable length: 400 mm, 120
Number of SATA power connectors: 5
CPU power connector (4+4 pin): Yes
Motherboard power cable length: 60 cm
Peripheral (Molex) power cable length: 400 mm, 150
ATX power connector (20+4 pin): Yes
Cabling type: Fully-Modular
PCI Express power connectors (8-pin): 4
PCI Express power connectors (16-pin): 1
