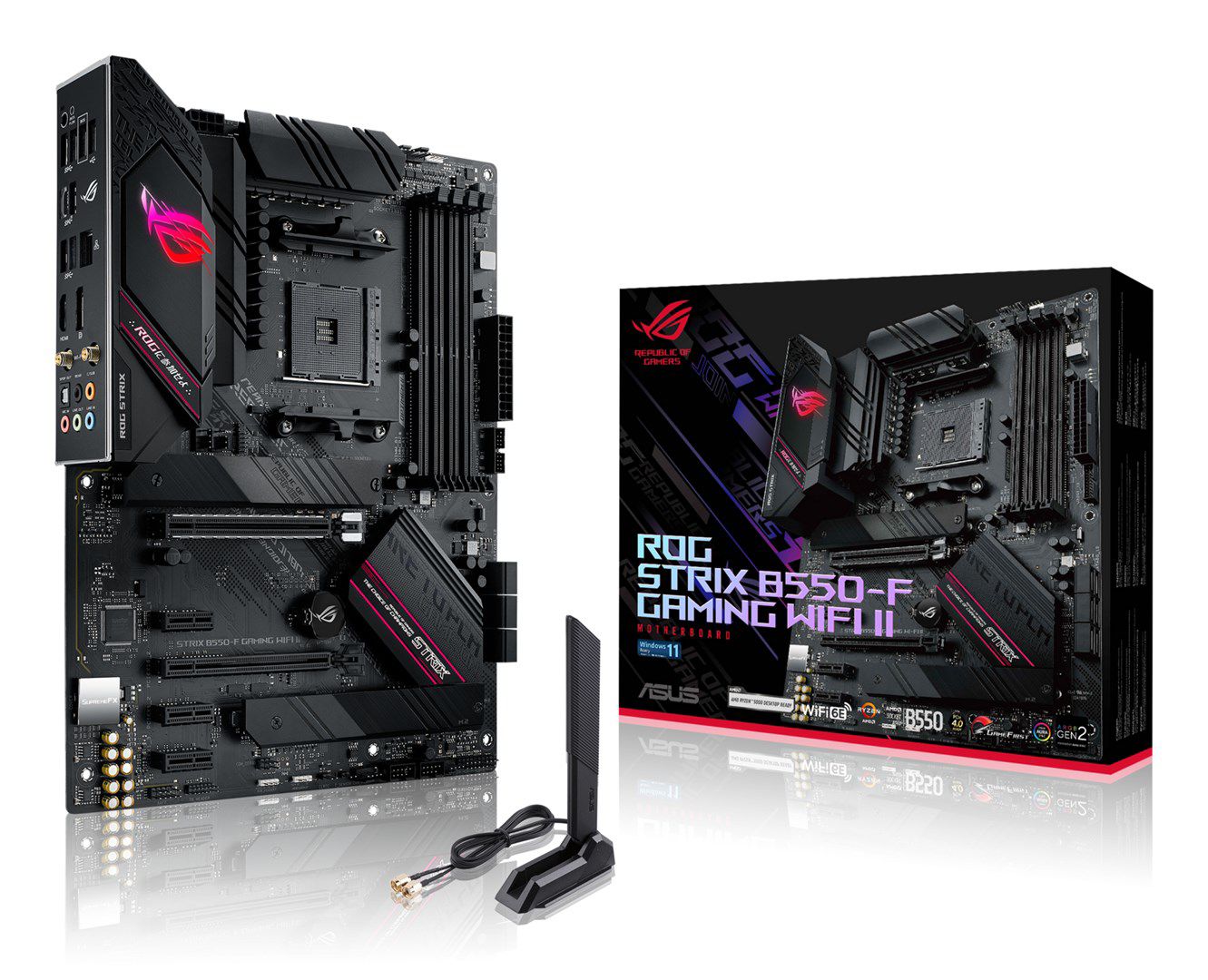

ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Socket AM4 ATX

Processor
Supported processor sockets: Socket AM4
Maximum number of SMP processors: 1
Processor socket: Socket AM4
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 3000 Series

Graphics
Parallel processing technology support: Not supported
On-board graphics card: No

Features
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset: AMD B550
Power source type: ATX
Product colour: Black
Motherboard chipset family: AMD
Cooling type: Active
Windows operating systems supported: Windows 10 Enterprise x64, Windows 10 x64, Windows 10 Pro x64, Windows 10 Enterprise, Windows 10 Home x64, Windows 10 Pro, Windows 10 IoT Enterprise, Windows 10 Education, Windows 10 Education x64, Windows 10 Home, Windows 10, Windows 10 IOT Core

Memory
ECC сompatibility: ECC
Memory slots type: DIMM
Supported memory clock speeds: 3866, 3466, 2133 MHz, 4600, 3000, 3600, 2400, 2800, 3200, 2666, 4400, 4133, 4000
Maximum internal memory: 128 GB
Number of memory slots: 4
Supported memory types: DDR4-SDRAM

Weight & dimensions
Depth: 244 mm
Height: 68 mm
Width: 305 mm

Network
Wake-on-LAN ready: Yes
Bluetooth: Yes
Ethernet LAN: Yes
LAN controller: Intel I225-V
Bluetooth version: 5.2
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 6
Thunderbolt headers: 1
RGB LED pin header: Yes
Number of chassis fan connectors: 3
12V power connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
Number of EATX power connectors: 1
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
CPU fan connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of HDDs supported: 6
RAID levels: 10, 1, 0

Rear panel I/O ports
DisplayPort version: 1.2
DisplayPorts quantity: 1
S/PDIF out port: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 2.0 ports quantity: 2
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 3
PCI Express x16 (Gen 3.x) slots: 1

Other features
Weight: 945 g

Logistics data
Harmonized System (HS) code: 84733020

Safety warning
Warnings: Store away from water and sources of moisture., Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations.
