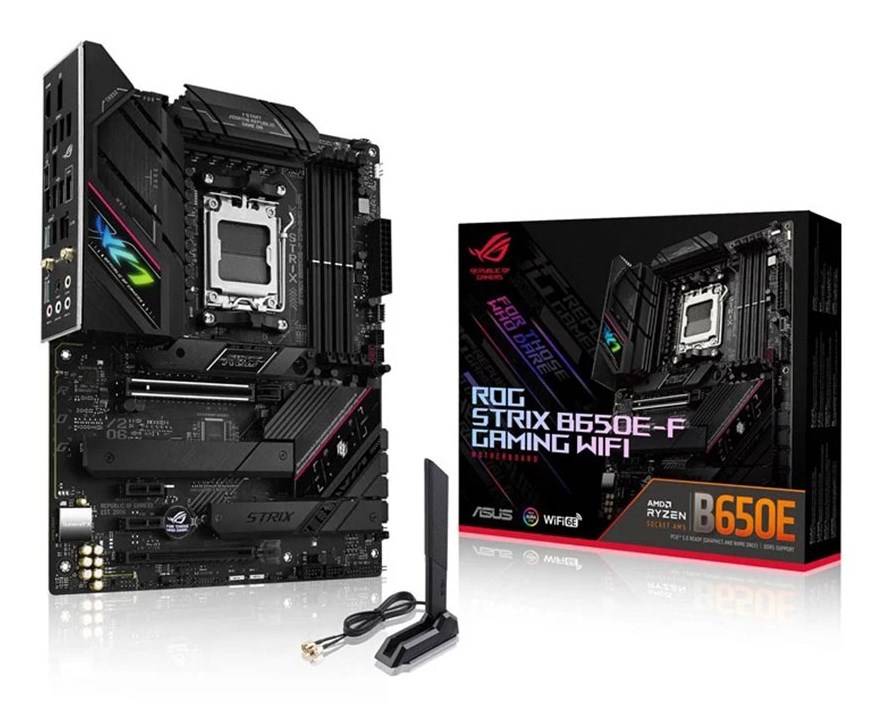

Asus | ROG STRIX B650E-F GAMING WIFI | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD B650 | ATX

Processor
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen™ 7
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64
Motherboard form factor: ATX
Audio chip: Realtek ALC4080
Motherboard chipset family: AMD

Memory
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 6400, 5200, 6000, 5600, 5000, 6200, 4800, 5800, 5400
Maximum internal memory: 128 GB
Number of memory slots: 4
Unbuffered memory: Yes
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Bluetooth version: 5.2
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Intel I225-V
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 6E (802.11ax)

Internal I/O
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 4
Peripheral (Molex) power connectors (4-pin): 1
Number of chassis fan connectors: 4
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Thunderbolt headers: 1
ATX Power connector (24-pin): Yes
S/PDIF out connector: Yes
Number of SATA III connectors: 4
Number of COM connectors: 1
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Chassis intrusion connector: Yes
CPU fan connector: Yes

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package height: 71 mm
Package width: 280 mm
Package weight: 9.22 kg
Package depth: 265 mm

Packaging content
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 10, 0, 1
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

Rear panel I/O ports
Microphone in: Yes
Line-in: Yes
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Headphone outputs: 3
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Expansion slots
PCI Express x1 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1

Safety warning
Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
