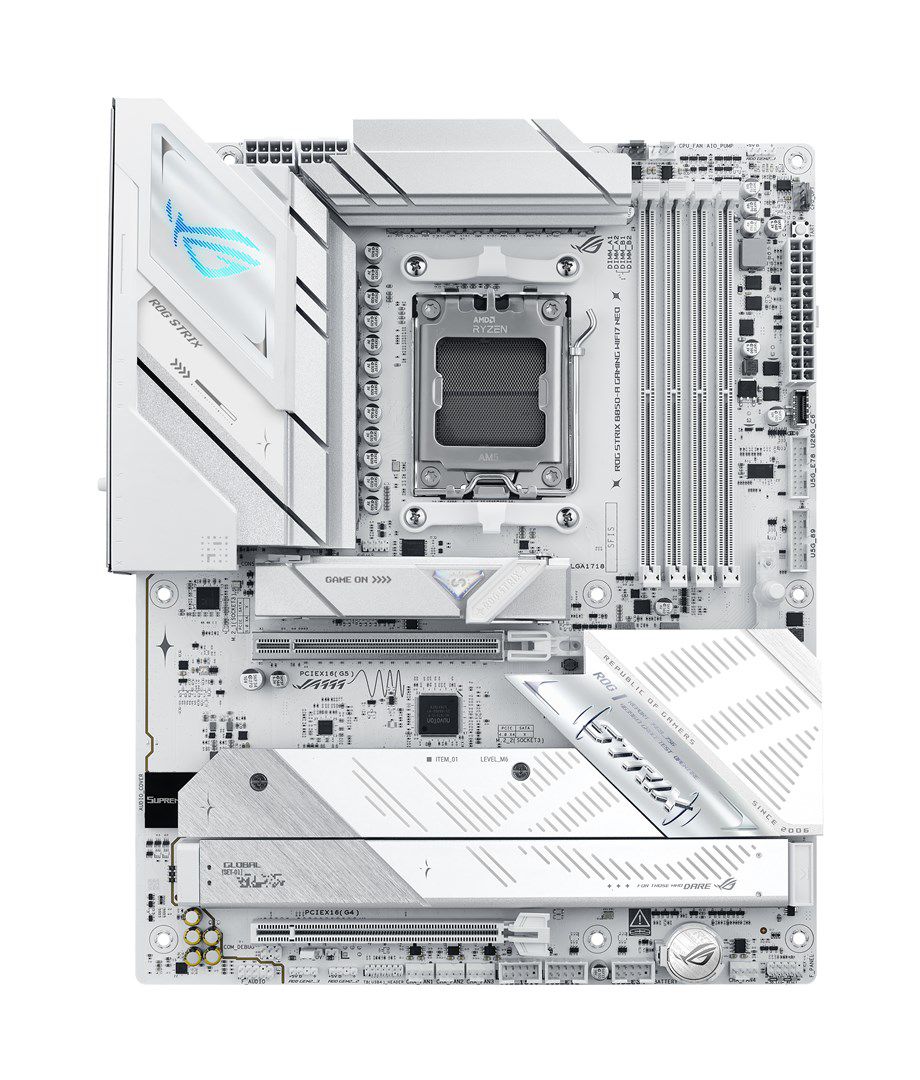

ASUS ROG STRIX B850-A GAMING WIFI7 NEO AMD B850 Socket AM5 ATX

Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5

Graphics
Maximum resolution: 3840 x 2160 pixels
On-board graphics card: No
Parallel processing technology support: Not supported

Features
Product colour: White
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard chipset: AMD B850
Motherboard form factor: ATX
Audio chip: Realtek ALC4080
Windows operating systems supported: Windows 11
Power source type: ATX
Cooling type: Passive

Memory
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speed (max): 9000 MHz
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
WLAN controller model: MediaTek MT7925
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth version: 5.4

Internal I/O
Number of SATA III connectors: 2
Number of water pump connectors: 1
Thunderbolt headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of RGB LED pin headers: 3
Number of CPU fan connectors: 2
RGB LED pin header: Yes
Front panel audio connector: Yes
Number of EPS power connectors (8-pin): 2
Front panel connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 2.0 connectors: 3
CPU fan connector: Yes
Number of chassis fan connectors: 4
ATX Power connector (24-pin): Yes

BIOS
BIOS flashback button: Yes
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging content
Antenna included: Yes
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0, 5, 10, 1

Rear panel I/O ports
S/PDIF out port: Yes
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Line-in: Yes
Ethernet LAN (RJ-45) ports: 1
WiFi-AP antenna jack: 2
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 2.0 ports quantity: 2
Digital audio optical out: 1

Expansion slots
2nd M.2 largest key size: 2280
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4

Other features
Quick installation guide: Yes
