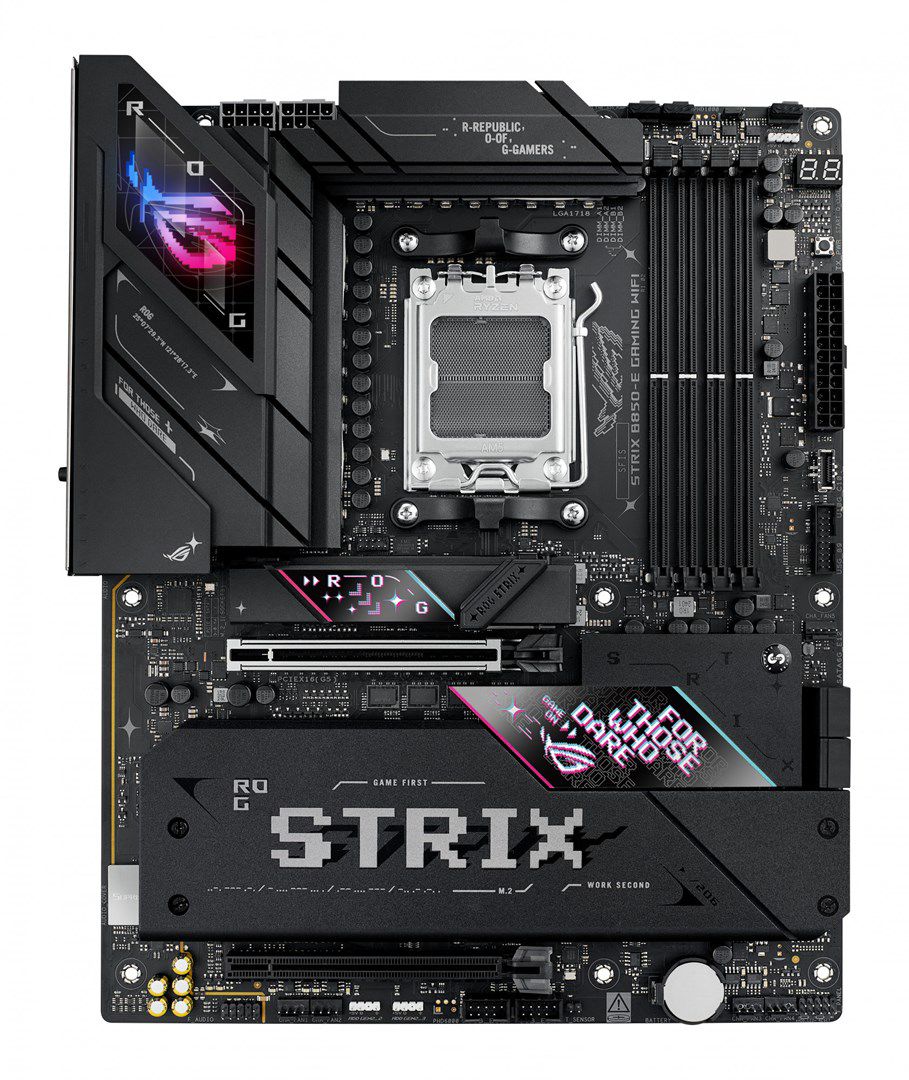

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 socket AM5 ATX motherboard

Processor
Processor socket: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5

Graphics
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported

Features
Power source type: ATX
Product colour: Black
Windows operating systems supported: Windows 11
Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Motherboard form factor: ATX
Audio chip: Realtek ALC4080

Memory
Supported memory clock speed (max): 8000 MHz
Memory channels: Dual-channel
Unbuffered memory: Yes
Memory slots type: DIMM
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Maximum internal memory: 192 GB

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Bluetooth: Yes
Wi-Fi: Yes
Bluetooth version: 5.4
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes

Internal I/O
Front panel connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 5
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
Number of CPU fan connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of water pump connectors: 1
Number of RGB LED pin headers: 3
USB 2.0 connectors: 2
RGB LED pin header: Yes
Number of SATA III connectors: 4
Number of temperature sensor headers: 1
Number of EPS power connectors (8-pin): 2
Front panel audio connector: Yes

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging data
Package depth: 281 mm
Package weight: 2.3 kg
Package height: 87 mm
Package width: 356 mm

Packaging content
Cables included: SATA
Antenna included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of HDDs supported: 4
RAID levels: 5, 0, 10, 1
Number of storage drives supported: 9
Supported storage drive types: HDD & SSD

Rear panel I/O ports
S/PDIF out port: Yes
WiFi-AP antenna jack: 2
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB4 Gen 3x2 ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
HDMI version: 2.1
DisplayPort version: 1.4
Line-in: Yes
DisplayPorts quantity: 1
Digital audio optical out: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1

Expansion slots
2nd M.2 largest key size: 22110
4th M.2 largest key size: 2280
5th M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
5th M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 5
1st M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 5.0
4th M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280

Other features
Quick installation guide: Yes

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty.
