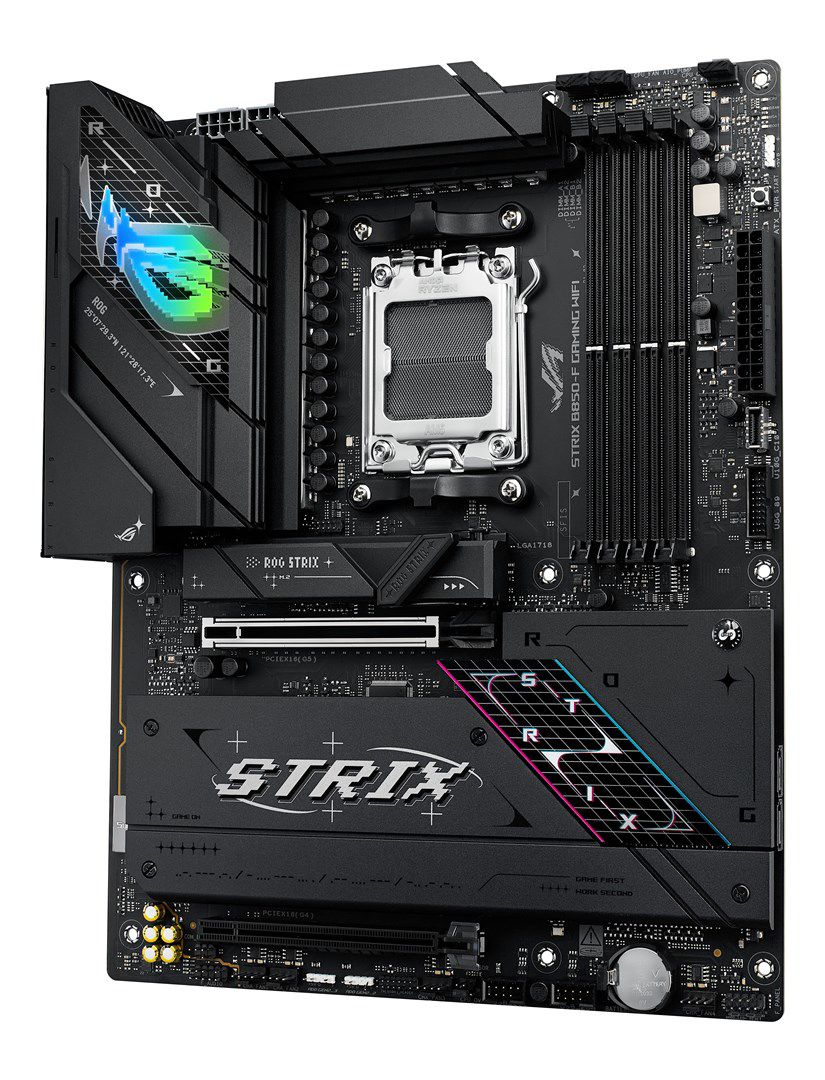

ASUS ROG STRIX B850-F GAMING WIFI AMD B850 socket AM5 ATX motherboard

Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Processor manufacturer: AMD

Graphics
Parallel processing technology support: Not supported
Maximum resolution: 7680 x 4320 pixels
On-board graphics card: No

Features
Windows operating systems supported: Windows 11
Power source type: ATX
Product colour: Black
Audio output channels: 7.1 channels
Motherboard chipset: AMD B850
Motherboard chipset family: AMD
Motherboard form factor: ATX
Audio chip: Realtek ALC4080

Memory
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 4
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 192 GB
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
ECC сompatibility: ECC & Non-ECC

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
Front panel connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
Number of chassis fan connectors: 4
CPU fan connector: Yes
Thunderbolt headers: 1
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
Number of CPU fan connectors: 2
Number of water pump connectors: 1
Number of RGB LED pin headers: 3
Number of temperature sensor headers: 1
Number of EPS power connectors (8-pin): 2

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package weight: 2.06 kg
Package height: 68 mm
Package width: 353 mm
Package depth: 273 mm

Packaging content
Cables included: SATA
Antenna included: Yes

Storage controllers
RAID support: Yes
Number of HDDs supported: 2
RAID levels: 5, 10, 0, 1
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD

Rear panel I/O ports
S/PDIF out port: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
WiFi-AP antenna jack: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Digital audio optical out: 1
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPorts quantity: 1
HDMI ports quantity: 1
Line-in: Yes
HDMI version: 2.1
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4

Expansion slots
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
4th M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280

Other features
Quick installation guide: Yes
Weight: 1.63 kg

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty.
