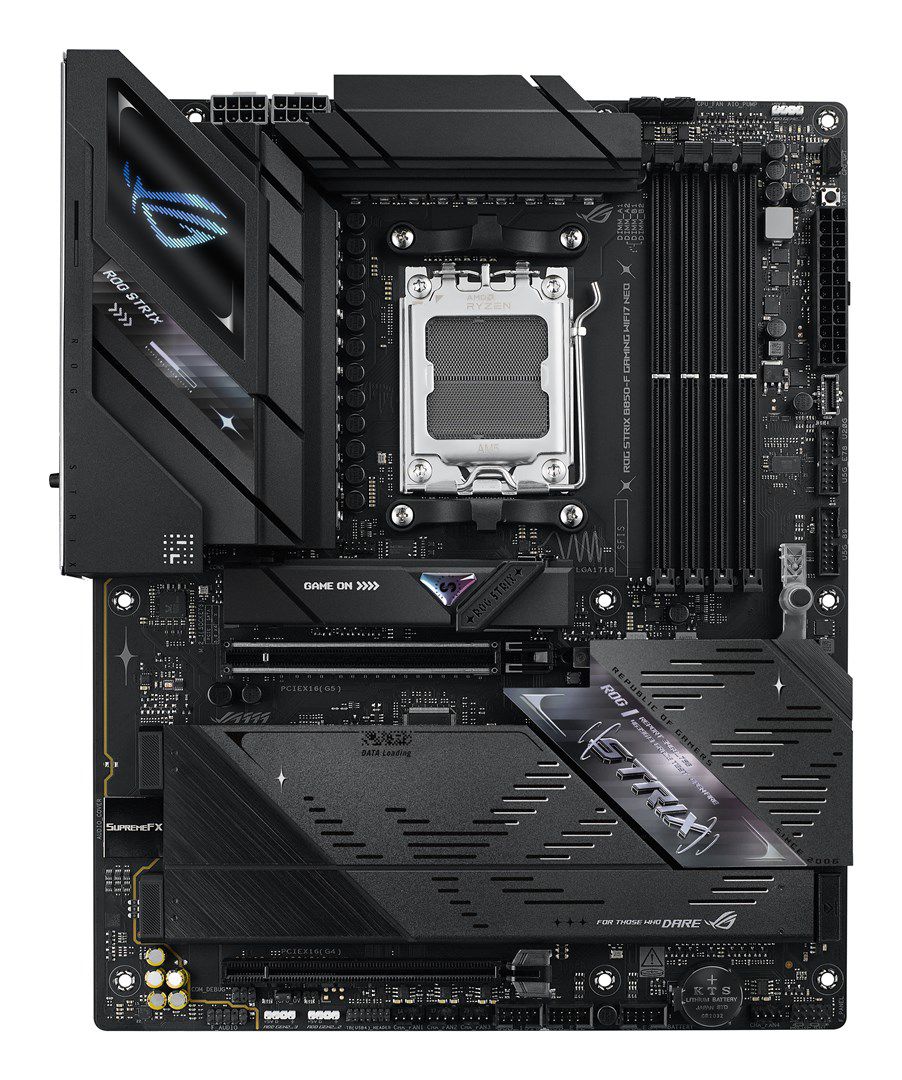

ASUS ROG STRIX B850-F GAMING WIFI7 NEO AMD B850 Socket AM5 ATX

Processor
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11
Motherboard chipset: AMD B850
Product colour: Multicolour
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Motherboard chipset family: AMD
Audio chip: Realtek ALC4080

Memory
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 8000 MHz

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth: Yes

Internal I/O
EPS power connector (8-pin): Yes
12V power connector: Yes
CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of chassis fan connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
Front panel audio connector: Yes
Number of SATA III connectors: 2
Thunderbolt headers: 1
ATX Power connector (24-pin): Yes

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging data
Package depth: 273 mm
Package width: 353 mm
Package height: 68 mm
Package weight: 2.18 kg

Storage controllers
Number of HDDs supported: 2
Number of storage drives supported: 6
RAID levels: 0, 10, 1, 5
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots
1st M.2 largest key size: 2280
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4

Other features
Weight: 1.63 kg
